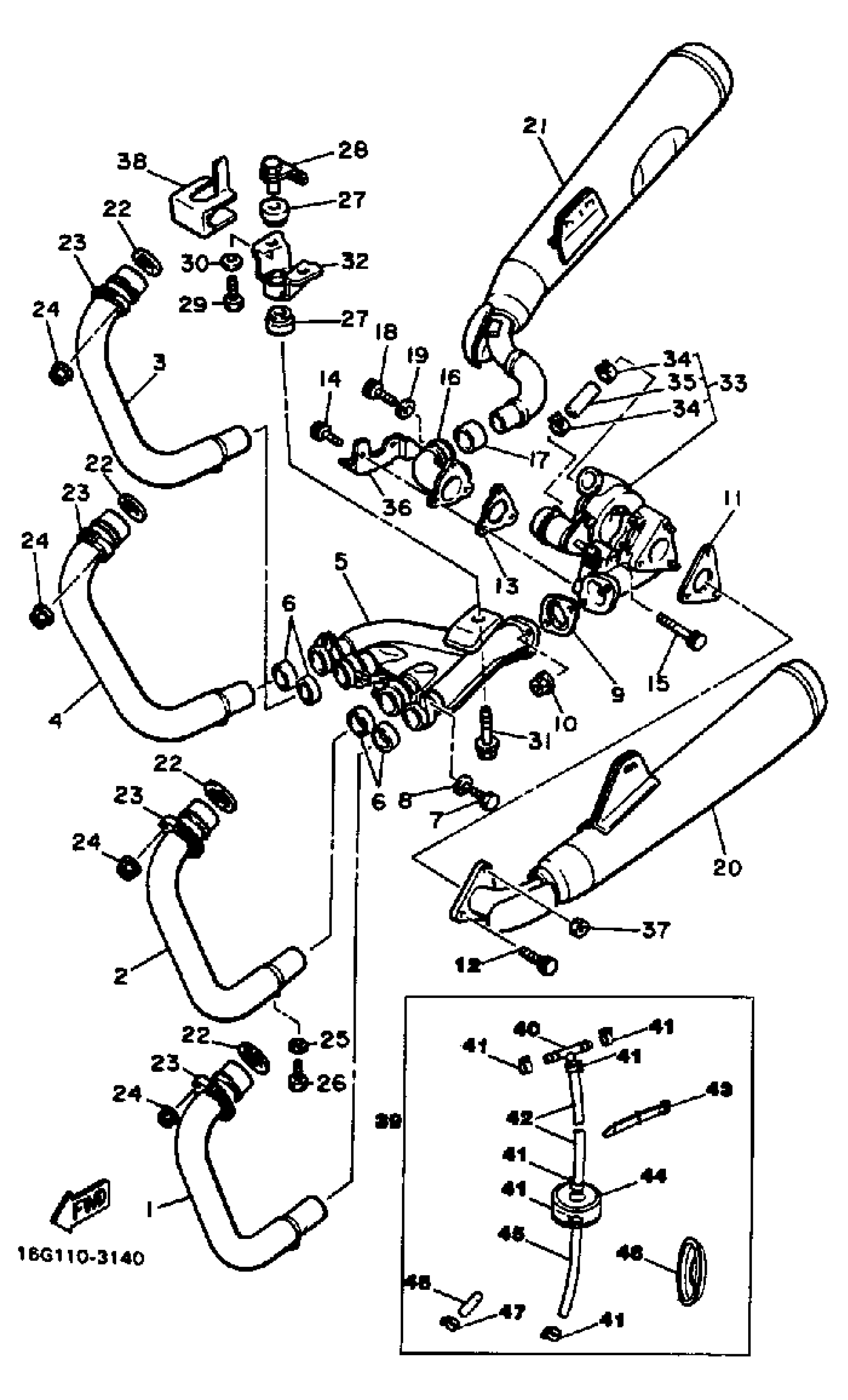

Yamaha XJ650LJ (XJ650L) 1982 EXHAUST Diagram
#
1
PIPE, EXHAUST L
(16G-14611-00-00)
Unavailable
2
PIPE, EXHAUST R
16G-14621-00-00
Unavailable
3
PIPE, EXHAUST 3
16G-14631-00-00
Unavailable
4
PIPE, EXHAUST 4
(16G-14641-00-00)
Unavailable
5
JOINT, EXHAUST L
(16G-14615-00-00)
Unavailable
8
.. WASHER, PLATE
92990-08600-00
Unavailable
9
GASKET, EXST PIPE
16G-14623-01-00
Unavailable
11
GASKET 3
16G-14643-00-00
Unavailable
13
GASKET, EXHAUST 4
16G-14653-00-00
Unavailable
16
JOINT, EXHAUST R
16G-14625-00-00
Unavailable
17
GASKET, EXST PIPE
3JJ-14623-00-00
Unavailable
18
BOLT (682)
97013-08025-00
Unavailable
19
.. WASHER, PLATE
92990-08600-00
Unavailable
20
MUFFLER L
16G-14711-01-00
Unavailable
21
MUFFLER R
16G-14721-00-00
Unavailable
22
GASKET, EXHAUST PIPE
4BR-14613-00-00
Unavailable
23
NUT, RING
4W5-14612-00-00
Unavailable
24
NUT (1AE)
90179-06500-00
Unavailable
25
WASHER, PLAIN (646)
92990-06600-00
Unavailable
26
BOLT, HEXAGON
97017-06012-00
Unavailable
27
DAMPER, MUFFLER
36Y-14747-00-00
Unavailable
28
COLLAR
1AE-14638-00-00
Unavailable
29
BOLT (682)
97013-08025-00
Unavailable
30
.. WASHER, PLATE
92990-08600-00
Unavailable
31
BOLT, FLANGE
95814-10040-00
Unavailable
32
STAY, MUFFLER
4K0-14791-00-00
Unavailable
33
TURBO SUPRCHGR ASSEMBLY
(16G-14690-01-00)
Unavailable
34
CLIP(41W)
90467-08092-00
Unavailable
35
PIPE, OUTLET
(16G-14752-00-00)
Unavailable
36
PROTC, EXHAUST PIPEPIPE
16G-14628-01-00
Unavailable
37
NUT (371)
90179-08004-00
Unavailable
38
GUIDE 1
(16G-1469U-00-00)
Unavailable
39
TURBO POWER UP KIT
(16G-W0020-00-00)
Unavailable
40
WAY 3(33M)
90413-05014-00
Unavailable
41
CLIP(41W)
90467-08092-00
Unavailable
42
. HOSE 1
16G-14694-00-00
Unavailable
43
BAND
341-26397-01-00
Unavailable
44
. VACUUM CONTRL VLVVALVE
16G-14696-00-00
Unavailable
45
. HOSE 2
16G-14695-00-00
Unavailable
46
PLUG, BLIND
16G-13569-00-00
Unavailable
47
CLIP (3G0)
90467-10039-00
Unavailable
48
. WASHER, SPEC''L SHAP
90209-12222-00
Unavailable
