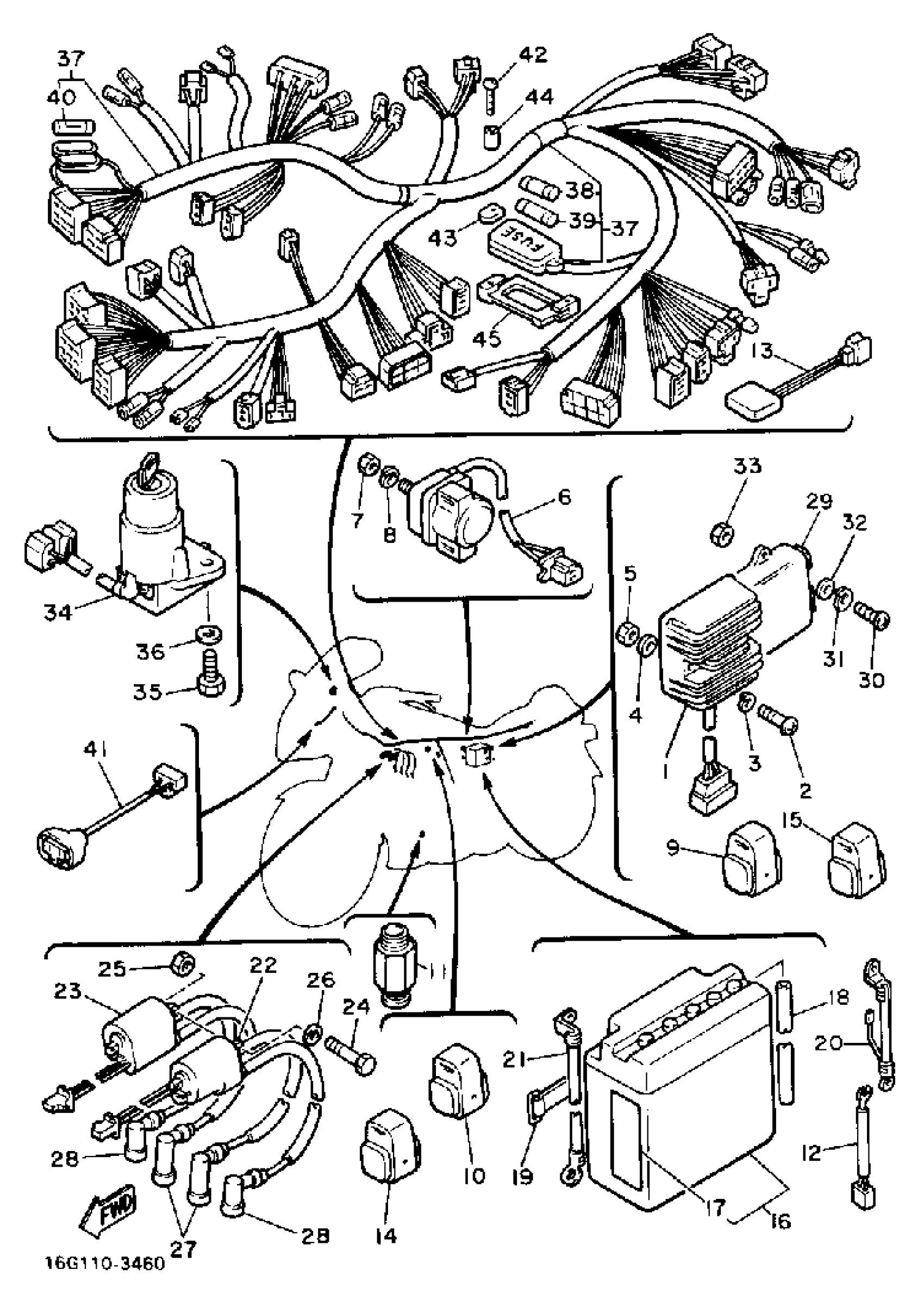

Yamaha XJ650LJ (XJ650L) 1982 ELECTRICAL 1 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

3G1-81960-A1-00

Unavailable

2

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

NUT, PLATE

4G0-21736-00-00

Unavailable

6

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

$115.99

7

NUT, HEXAGON SMALL

95317-05700-00

$8.49

8

WASHER, SPRING

92995-06100-00

Unavailable

9

RELAY ASSY

12R-81950-02-00

$70.99

10

RELAY ASSY

4U8-81950-03-00

Unavailable

11

SENSOR, KNOCK

16G-85780-10-00

Unavailable

12

WIRE, SUB LEAD

16G-82509-00-00

Unavailable

13

DIODE

16G-81980-M0-00

Unavailable

14

RELAY ASSY

4U8-81950-03-00

Unavailable

15

RELAY ASSY

25G-81950-02-00

$47.99

16

12N12A-4A-1 YUASA BATTERY

12N-12A4A-1Y-00

Unavailable

17

LABEL, BATTERY

40A-82141-G0-00

Unavailable

18

HOSE (L1500)

90445-084J0-00

Unavailable

19

BAND, BATTERY

1E6-82131-00-00

Unavailable

20

WIRE, PLUS LEAD

1UT-82115-00-00

Unavailable

21

WIRE,MINUS LEAD

2F1-82116-00-00

Unavailable

22

IGNITION COIL ASSY

4G0-82310-09-00

Unavailable

23

IGNITION COIL ASSY

4G0-82310-09-00

Unavailable

24

BOLT(7LR)

97027-06080-00

Unavailable

25

NUT, HEXAGON

95380-06600-00

Unavailable

26

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

27

PLUG CAP ASSY

1J7-82370-00-00

Unavailable

28

PLUG CAP ASSY

4BP-82370-01-00

Unavailable

29

IGNITOR UNIT ASSEMBLY 1

16G-82305-10-00

Unavailable

30

SCREW, PAN

98507-06014-00

Unavailable

31

WASHER, SPRING

92995-06100-00

Unavailable

32

WASHER, PLATE

90201-06049-00

Unavailable

33

NUT, PLATE

4G0-21736-00-00

Unavailable

34

MAIN SWITCH ASSEMBLY

16G-82508-50-00

Unavailable

35

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

36

WASHER, PLAIN (646)

92990-06600-00

$2.80

37

WIRE HARNESS ASSEMBLY

16G-82590-52-00

Unavailable

38

FUSE

1A0-82151-00-00

Unavailable

39

FUSE

1A0-82161-00-00

Unavailable

40

FUSE (12V 5A)

5G2-82151-00-00

Unavailable

41

WIRE, SUB LEAD

10M-82509-00-00

Unavailable

42

YBS83-525 SCREW,PANH.TAPPING

97780-50125-00

Unavailable

43

WASHER

(4K0-82558-00-00)

Unavailable

44

COLLAR(55K)

90387-066M1-00

Unavailable

45

DAMPER

4K0-82157-00-00

Unavailable
