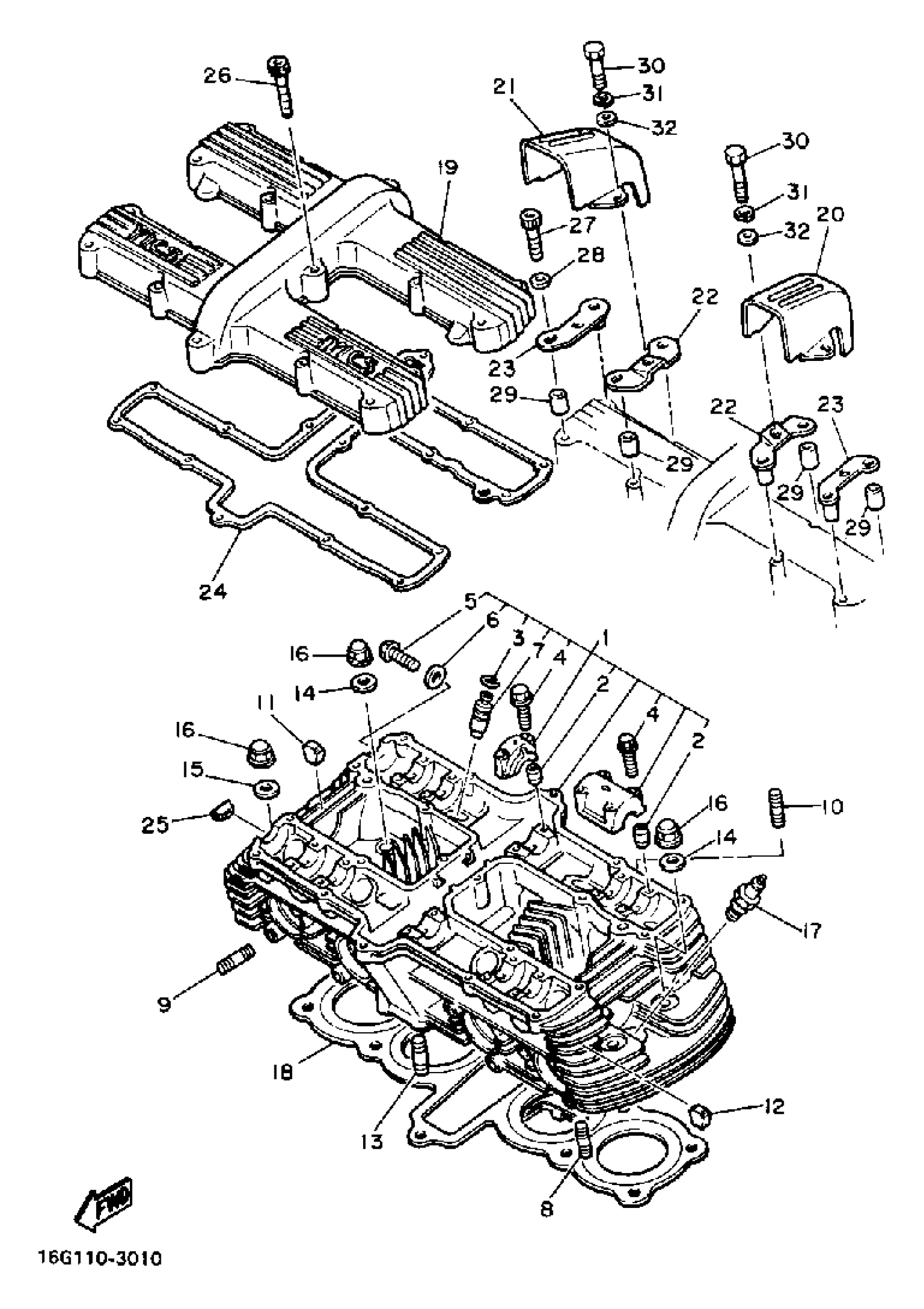

Yamaha XJ650LJ (XJ650L) 1982 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

(16G-11101-00-00)

Unavailable

2

PIN, DOWEL(3XW)

91808-16023-00

$8.49

3

CIRCLIP (1L9)

93440-12052-00

$2.44

4

BOLT, WASHER BASED (4H7)

90105-06153-00

$4.14

5

SCREW

90153-06029-00

$10.49

6

GASKET 256113960000

90430-06014-00

Unavailable

7

GUIDE, INTAKE VALVE

4H7-11133-11-00

$50.99

8

BOLT, STUD 3

95617-06625-00

$8.49

9

BOLT, STUD(1FW)

90116-06466-00

$4.51

10

BOLT, STUD 2

95617-08330-00

$10.49

11

ABSORBER

434-11161-00-00

Unavailable

12

ABSORBER 1

4H7-11161-00-00

$3.48

13

BOLT, STUD(1FW)

90116-06466-00

$4.51

14

WASHER PLATE 256111740000

90201-10131-00

$9.49

15

WASHER PLATE 341839090000

90201-10128-00

$4.82

16

NUT, CROWN (5A8)

90176-10033-00

Unavailable

17

BPR8ES NGK SPLUG 4PK

BPR-8ES00-00-00

Unavailable

18

GASKET, CYLINDER HEAD 1

16G-11181-00-00

Unavailable

19

COVER, CYLINDER.HEAD 1

(16G-11191-01-00)

Unavailable

20

COVER, CYLINDER.HEAD 2

(16G-11192-00-00)

Unavailable

21

COVER, CYLINDER.HEAD 3

(16G-1112E-00-00)

Unavailable

22

BRKT CYLINDER HD COVER2

(16G-11142-00-00)

Unavailable

23

BRKT, CYLINDER.HD.COVERHEAD COVER

16G-11152-00-00

Unavailable

24

GASKET, HEAD COVER 1

4H7-11193-10-00

Unavailable

25

PLUG

1J7-11138-00-00

Unavailable

26

BOLT,SOCKET

91317-06035-00

Unavailable

27

BOLT,SOCKET

91317-06055-00

Unavailable

28

WASHER(6TA)

92907-06600-00

Unavailable

29

COLLAR

90387-06387-00

Unavailable

30

BOLT, HEXAGON

97017-06012-00

Unavailable

31

WASHER, SPRING

92907-06100-00

Unavailable

32

WASHER(6TA)

92907-06600-00

Unavailable
