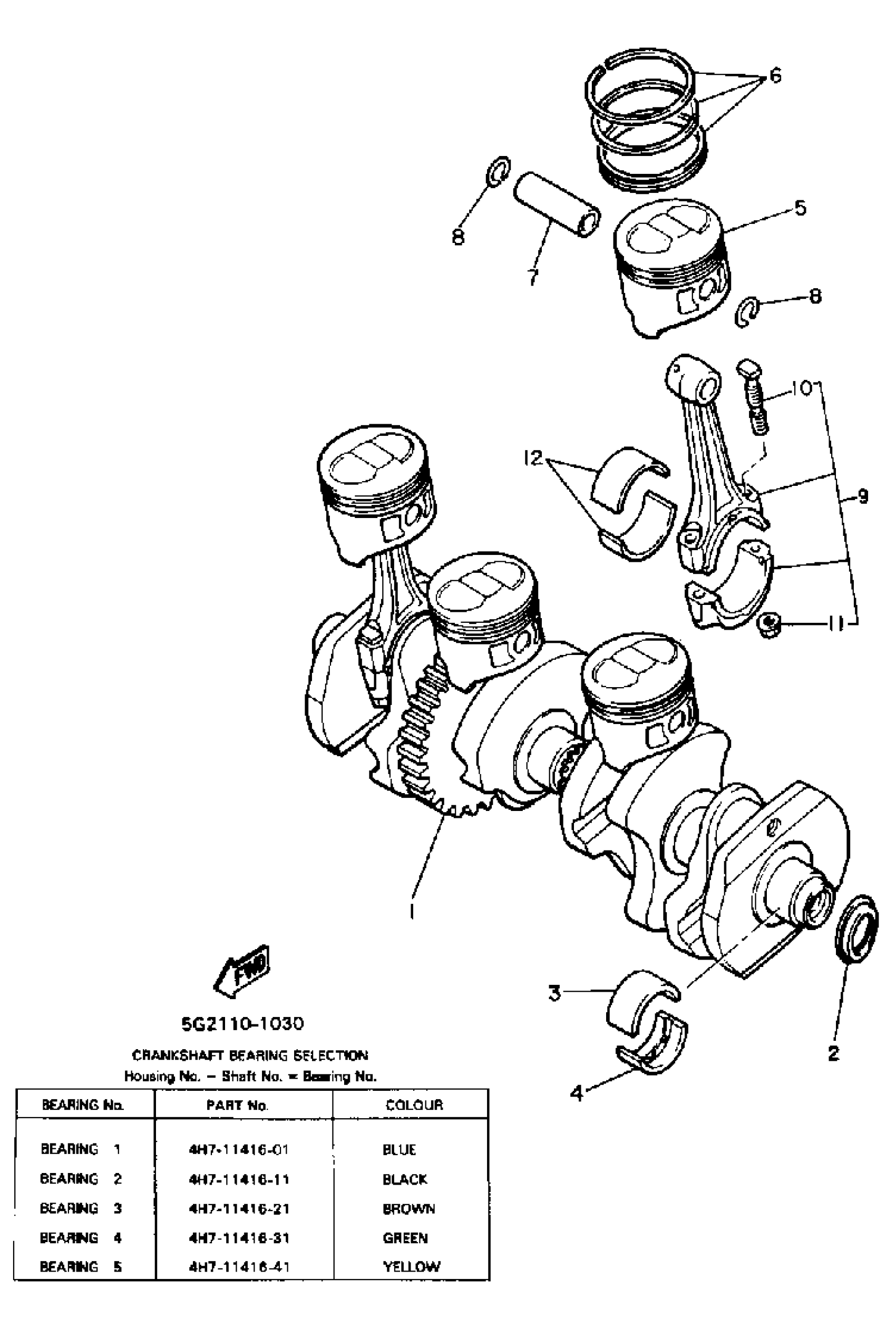

Yamaha XJ650LJ (XJ650L) 1982 CRANKSHAFT PISTON Diagram

#

Description

Price

1

CRANKSHAFT

16G-11411-00-00

Unavailable

2

OIL SEAL (32X45X6.5-2H7)

93101-32144-00

$24.99

3

PLANE BRNG, CRSF 1

4H7-11416-01-00

Unavailable

3

PLANE BRNG, CRSF 1

4H7-11416-11-00

Unavailable

3

PLANE BRNG, CRSF 1

4H7-11416-21-00

Unavailable

3

PLANE BRNG, CRSF 1

4H7-11416-31-00

Unavailable

3

PLANE BRNG, CRSF 1

4H7-11416-41-00

Unavailable

4

PLANE BRNG, CRSF 1

4H7-11416-01-00

Unavailable

4

PLANE BRNG, CRSF 1

4H7-11416-11-00

Unavailable

4

PLANE BRNG, CRSF 1

4H7-11416-21-00

Unavailable

4

PLANE BRNG, CRSF 1

4H7-11416-31-00

Unavailable

4

PLANE BRNG, CRSF 1

4H7-11416-41-00

Unavailable

5

PISTON STD

(16G-11631-02-00)

Unavailable

5

PISTON 2 O/S 0.50

(16G-11636-02-00)

Unavailable

5

PISTON 4 O/S 1.00

(16G-11638-02-00)

Unavailable

6

PISTON RINGSET 4TH

4H7-11610-40-00

Unavailable

6

PISTON RING SET

4H7-11610-00-00

Unavailable

6

PISTON RINGSET 2ND (2ND O/S)

4H7-11610-20-00

Unavailable

7

PIN, PISTON

4H7-11633-00-00

Unavailable

8

CIRCLIP (1L9)

93450-17044-00

Unavailable

9

CONNECTING ROD ASSEMBLY

(16G-Y1165-01-00)

Unavailable

10

BOLT, CONNECTING ROD

4H7-11654-00-00

Unavailable

11

NUT (4H7)

90179-07307-00

Unavailable

12

PLANE BRNG, CON ROD

(16G-11656-00-00)

Unavailable

12

PLANE BRNG, CON RODCONNECTING ROD

16G-11656-10-00

Unavailable

12

PLANE BRNG, CON RODCONNECTING ROD

16G-11656-20-00

Unavailable

12

PLANE BRNG, CON RODCONNECTING ROD

16G-11656-30-00

Unavailable
