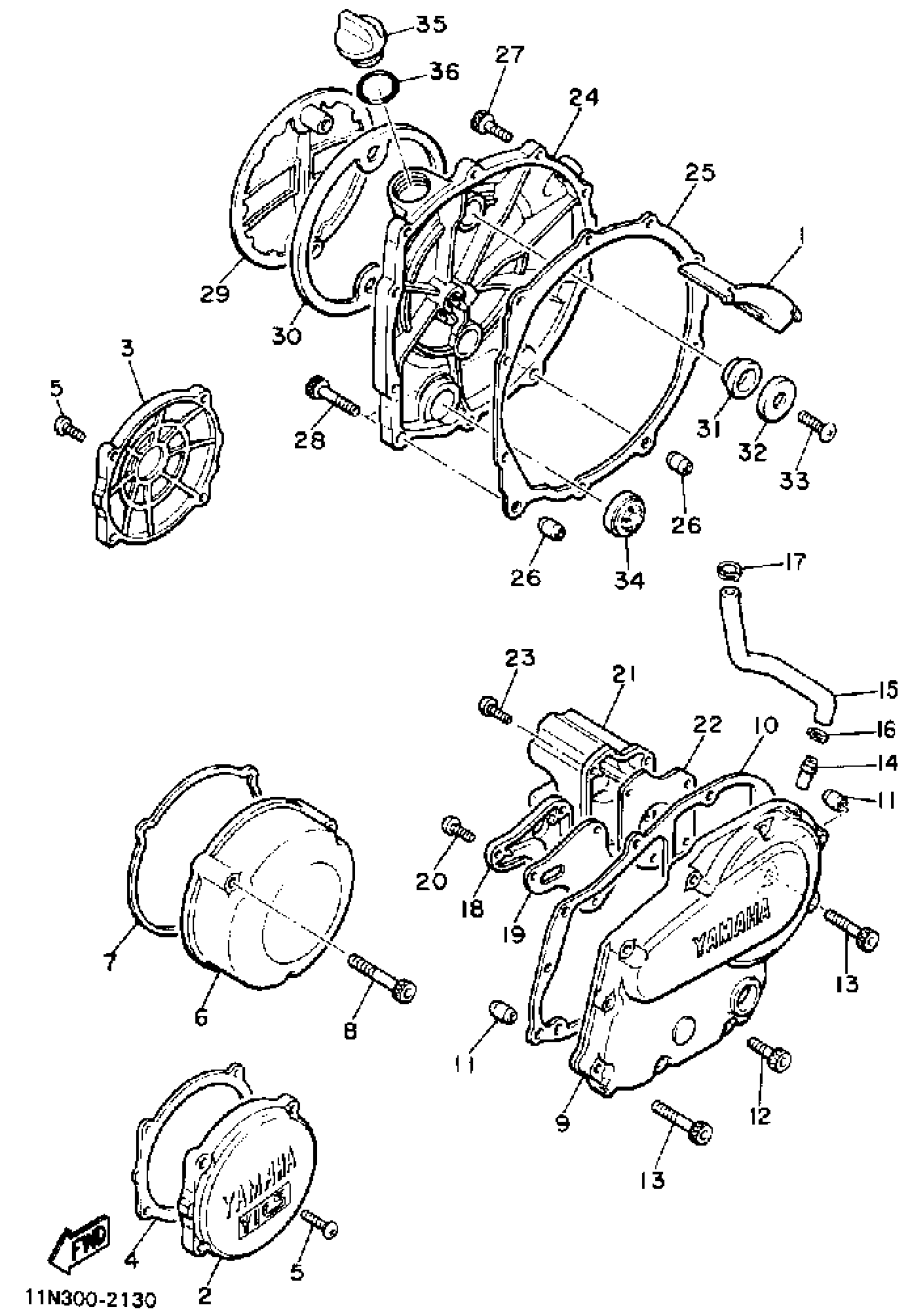

Yamaha XJ650LJ (XJ650L) 1982 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, OIL PUMP

4H7-15412-01-00

Unavailable

2

COVER, OIL PUMP

16G-15416-00-00

Unavailable

3

COVER, OIL PUMP R

16G-15426-00-00

Unavailable

4

GASKET, OIL PUMP COVER 1

4BB-15456-00-00

$11.99

5

SCREW, BINDING

98907-06020-00

$8.49

6

COVER, GENERATOR

4K0-15415-00-00

Unavailable

7

GASKET 1

4BB-15455-00-00

$27.99

8

BOLT, SOCKET

91317-06070-00

$4.99

9

COVER, CRANKCASE L

5G9-15411-00-00

Unavailable

10

GASKET, CRANKCASE COVER 1

4BB-15451-00-00

$35.99

11

PIN, DOWEL(3VD)

99530-10114-00

$2.55

12

BOLT,SOCKET

91317-06025-00

$5.60

13

BOLT,SOCKET

91317-06040-00

$3.76

14

PIPE, BREATHER 2

371-11167-01-00

$13.49

15

PIPE, BREATHER 1

(16G-11166-00-00)

Unavailable

16

CLIP (371)

90467-14015-00

Unavailable

17

CLIP

90468-08104-00

Unavailable

18

BREATHER 1

(4H7-15346-00-00)

Unavailable

19

GASKET

4BB-15457-00-00

Unavailable

20

SCREW, PAN

98507-06014-00

Unavailable

21

BREATHER 2

4H7-15347-01-00

Unavailable

22

GASKET

4BB-15467-00-00

Unavailable

23

SCREW, PAN

98507-06014-00

Unavailable

24

COVER, CRANKCASE R

4K0-15421-01-00

Unavailable

25

GASKET, CRANKCASE COVER 2

4BB-15461-00-00

Unavailable

26

PIN, DOWEL(3VD)

99530-10114-00

$2.55

27

BOLT,SOCKET

91317-06025-00

$5.60

28

BOLT,SOCKET

91317-06040-00

$3.76

29

COVER, CAP

16G-15417-00-00

Unavailable

30

RING, RUBBER

4H7-15449-00-00

Unavailable

31

GROMMET

4H7-15486-00-00

Unavailable

32

WASHER (4H7)

90209-06096-00

Unavailable

33

SCREW, PAN

98507-06014-00

Unavailable

34

GAUGE, LEVEL

2H7-15361-00-00

Unavailable

35

PLUG, OIL

2H9-15363-00-00

Unavailable

36

O-RING(1KT)

93210-27778-00

Unavailable
