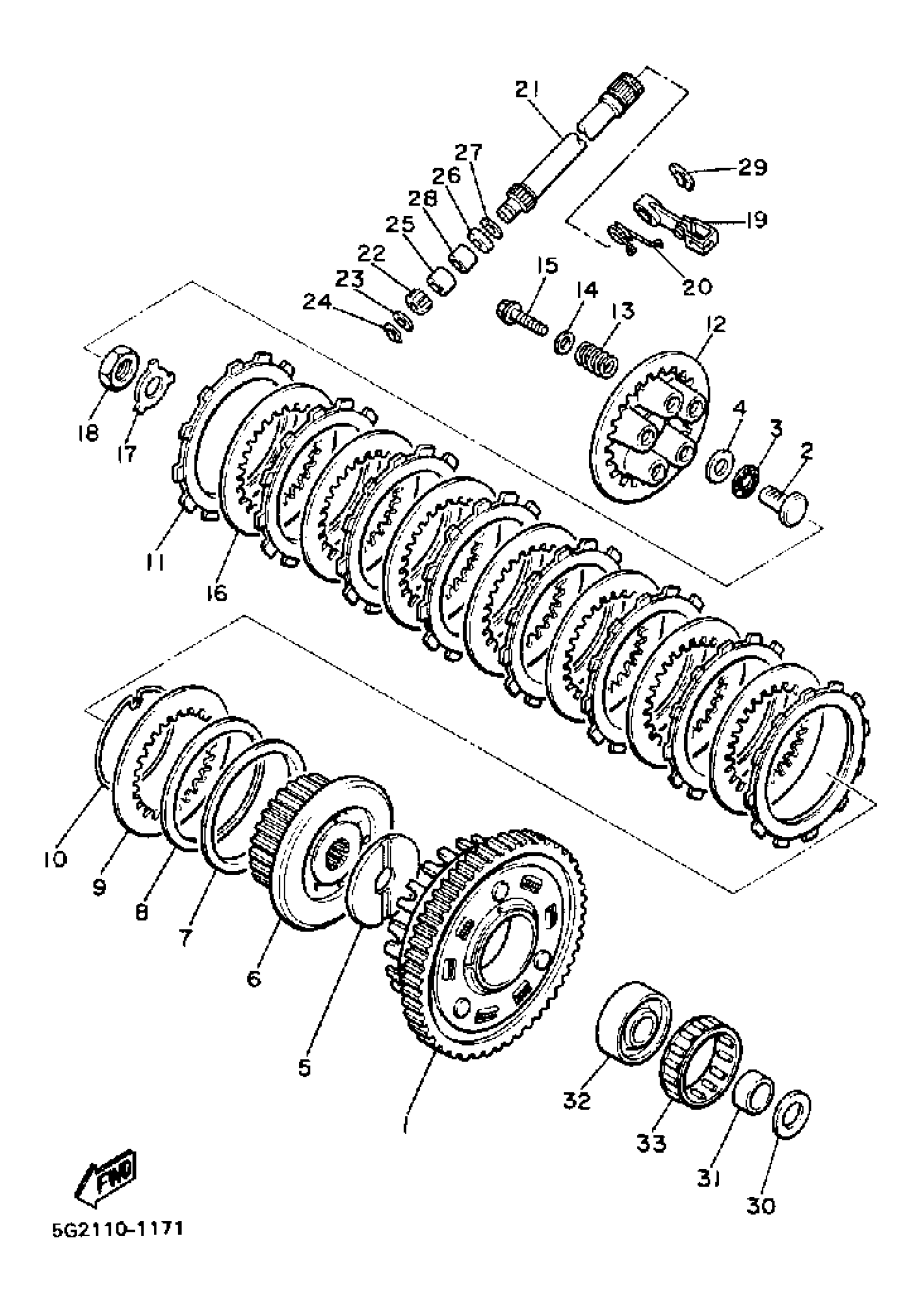

Yamaha XJ650LJ (XJ650L) 1982 CLUTCH Diagram

#

Description
Price

1

. PRI DRVN GEARCOMP (97T)

4H7-16150-10-00

Unavailable

2

. ROD, PUSH 1

4H7-16356-01-00

Unavailable

3

BEARING, THRUST (713)

93340-21505-00

$18.99

4

WASHER, PLATE (5G3)

90201-154E9-00

$9.49

5

PLATE, THRUST 1

4H7-16154-00-00

Unavailable

6

BOSS, CLUTCH

4H7-16371-01-00

Unavailable

7

PLATE, SEAT

1J7-16384-00-00

Unavailable

8

SPRING, CLUTCH BOSS

5G2-16383-00-00

Unavailable

9

PLATE, CLUTCH 1

168-16324-10-00

$21.99

10

RING, CLUTCH BOSS

1J7-16385-00-00

Unavailable

11

PLATE, FRICTION

4H7-16321-02-00

$23.99

12

. PLATE, PRESSURE 1

4H7-16351-00-00

Unavailable

13

SPRING, COMPRESSION (16G)

90501-23694-00

Unavailable

14

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

15

BOLT, FLANGE

95822-06025-00

$1.75

16

PLATE, CLUTCH 2

168-16325-10-00

Unavailable

17

UNAVAILABLE IN PRICE BOOK

90215-20131-00

Unavailable

18

NUT (34L)

90170-20327-00

Unavailable

19

PUSH LEVER ASSY

4HM-16340-00-00

Unavailable

20

SPRING, TORSION

90508-16459-00

Unavailable

21

AXLE, PUSH LEVER

4H7-16382-01-00

Unavailable

22

PINION, RELEASE

3LD-16398-00-00

Unavailable

23

.. WASHER, PLATE

92990-08600-00

Unavailable

24

CIRCLIP

99080-07600-00

Unavailable

25

BEARING

93317-11096-00

Unavailable

26

OIL SEAL (4G0)

93102-12224-00

Unavailable

27

WASHER (692)

90201-12M34-00

Unavailable

28

BRG,CYL-CAL ROLLER 6G TM

93315-11206-00

Unavailable

29

CIRCLIP(J51)

99080-09600-00

Unavailable

30

PLATE, THRUST

2K7-16154-00-00

Unavailable

31

COLLAR (4H7)

90387-252A8-00

Unavailable

32

SPACER 1

4H7-16181-00-00

Unavailable

33

BRG,CYL-CAL ROLLER

93310-365H3-00

Unavailable
