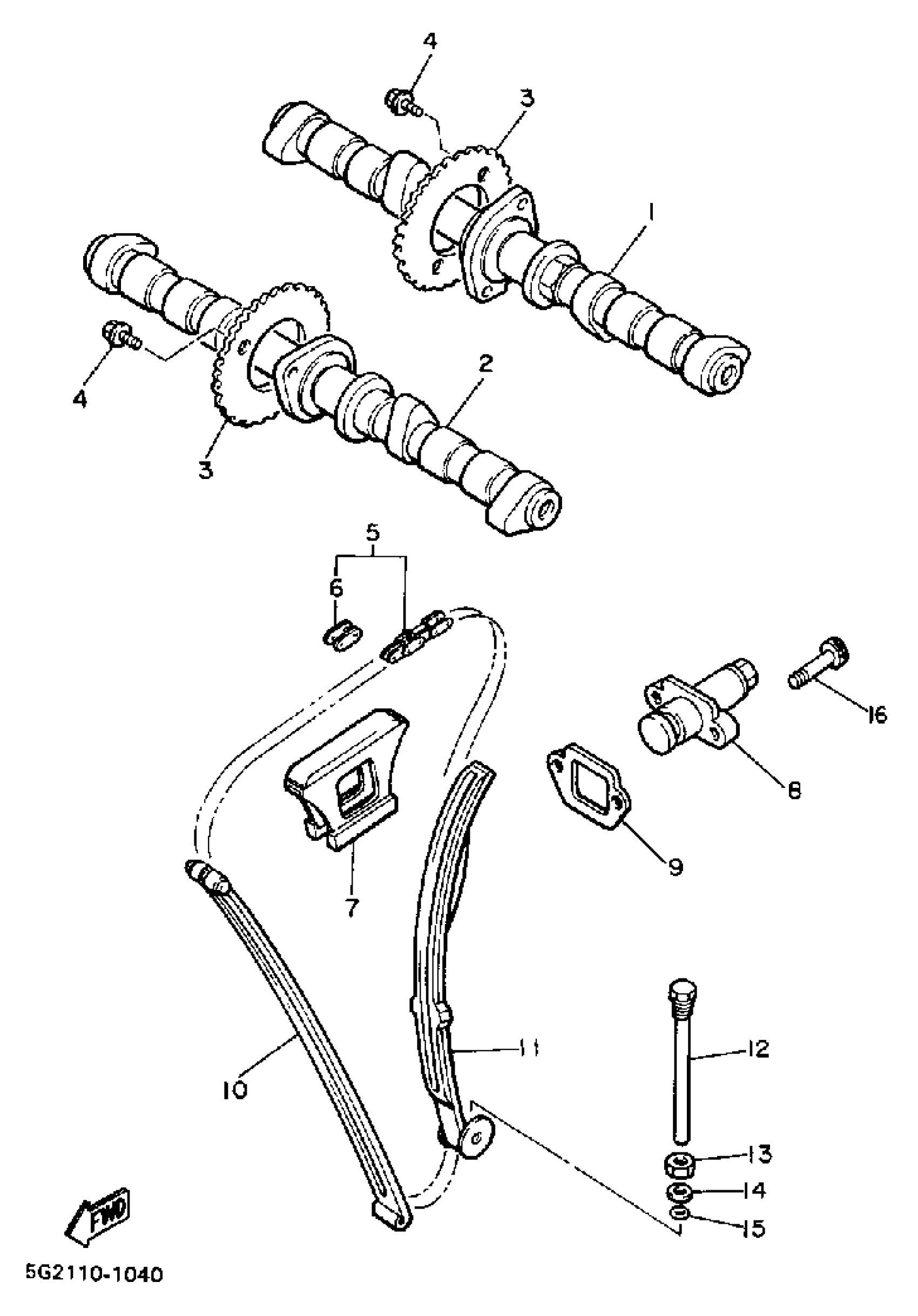

Yamaha XJ650LJ (XJ650L) 1982 CAMSHAFT CHAIN Diagram

CAMSHAFT 1

(16G-12171-00-00)

Unavailable

CAMSHAFT 2

(16G-12181-00-00)

Unavailable

SPROCKET, CAM CHAIN (4G0-12176-00) (32T)

4G0-12176-01-00

Unavailable

BOLT, FLANGE

90105-07004-00

$5.60

CHAIN (BF05M-120L)

94500-02120-00

Unavailable

JOINT, CHAIN (583)

94600-02001-00

$7.99

GUIDE, STOPPER 2

4H7-12241-00-00

Unavailable

TENSNR ASSEMBLY, CAMCHN

5G2-12210-02-00

Unavailable

GASKET, TENSIONER CASE

3YX-12213-00-00

$6.99

DAMPER, CHAIN 1

4H7-12251-00-00

Unavailable

DAMPER, CHAIN 2

4H7-12252-00-00

Unavailable

BOLT

90109-10570-00

Unavailable

NUT (682)

95380-10700-00

Unavailable

.. WASHER, PLATE

92990-08600-00

Unavailable

O-RING

93210-08003-00

$9.49

BOLT,SOCKET

91317-06025-00

Unavailable
