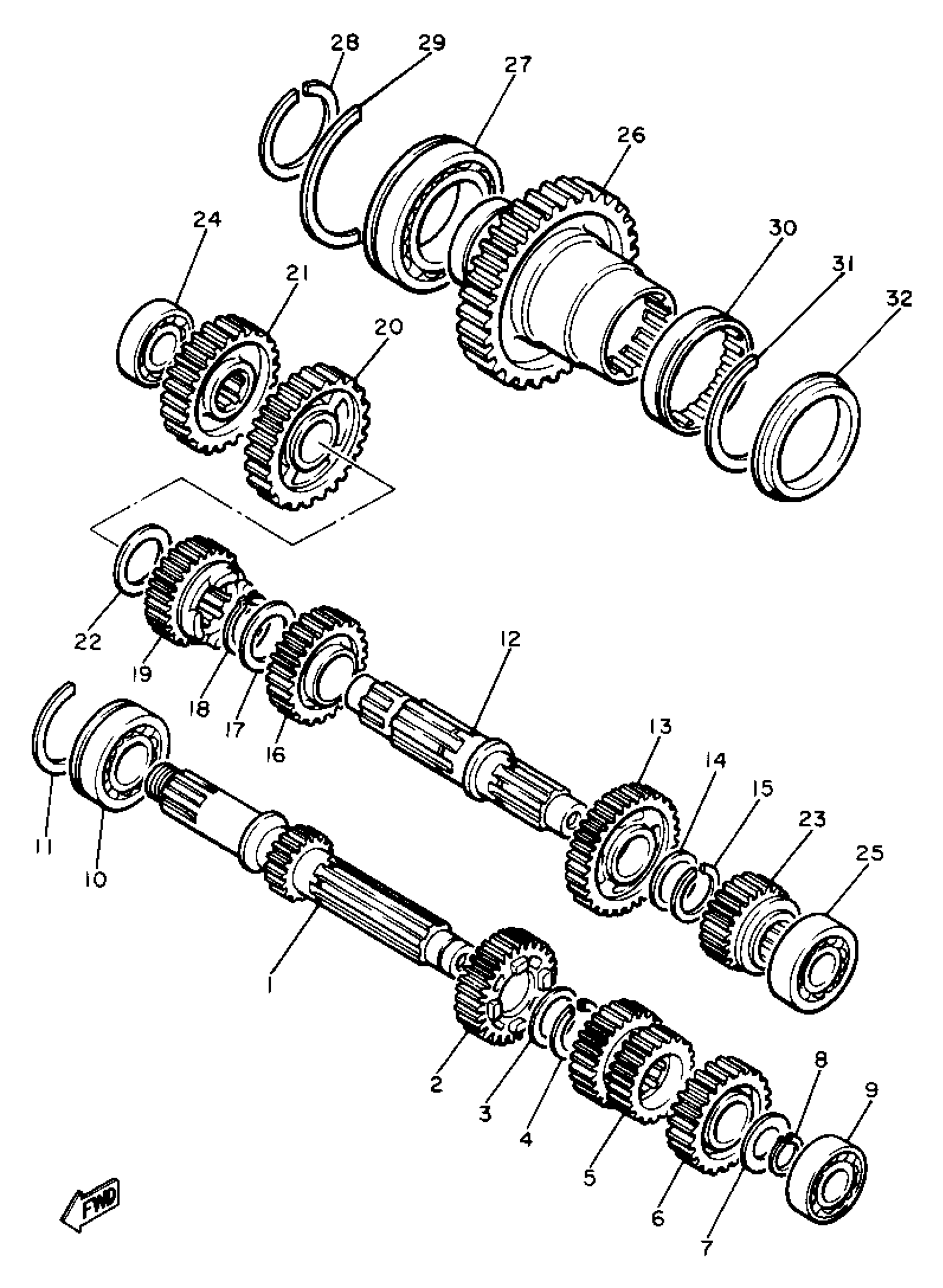

Yamaha XJ650LH (XJ650L) 1981 TRANSMISSION Diagram

MAIN AXLE ASSEMBLY

4H7-17401-00-00

Unavailable

GEAR, 4TH PINION

4H7-17141-00-00

Unavailable

WASHER (3J3)

90209-22191-00

$7.49

CIRCLIP (4L0)

93440-25084-00

$5.60

GEAR, 2ND PINION

4BB-17121-00-00

Unavailable

GEAR, 5TH PINION

4KM-17151-00-00

Unavailable

WASHER PLATE 328171160000

90201-20276-00

$8.49

CIRCLIP(1AR)

99009-20400-00

$8.49

BEARING(1GJ)

93306-20458-00

$43.99

BEARING(1WG)

93306-30550-00

$63.99

CIRCLIP

278-17424-01-00

$21.99

DRIVE AXLE ASSEMBLY

(4H7-17402-00-00)

Unavailable

DRIVE AXLE ASSEMBLY

4H7-17402-01-00

Unavailable

GEAR, 2ND WHEEL

4H7-17221-00-00

Unavailable

GEAR, 2ND WHEEL (30T)

99999-02204-00

Unavailable

GEAR, 2ND WHEEL (30T)

99999-02204-00

Unavailable

WASHER (3J3)

90209-22191-00

$7.49

CIRCLIP (4L0)

93440-25084-00

$5.60

GEAR, 3RD WHEEL

4KM-17231-01-00

Unavailable

GEAR, 3RD WHEEL

(4H7-17231-00-00)

Unavailable

WASHER (4H7)

90209-25196-00

Unavailable

CIRCLIP (2H7)

93440-28062-00

Unavailable

GEAR, 4TH WHEEL

4H7-17241-00-00

Unavailable

GEAR, 1ST WHEEL

4KM-17211-00-00

Unavailable

GEAR, MIDDLE DRIVE

4H7-17582-00-00

Unavailable

WASHER, PLATE (4H7)

90201-243A2-00

Unavailable

GEAR, 5TH WHEEL

16G-17251-00-00

Unavailable

GEAR, 5TH WHEEL

4H7-17251-00-00

Unavailable

BRG,R-B 6303 47MM 115G NK

93306-30302-00

Unavailable

BEARING (83A581A)

93306-30425-00

Unavailable

GEAR, MIDDLE DRIVEN

(4H7-17583-00-00)

Unavailable

BRG R-B 6911 80MM 176G NT

93306-91101-00

Unavailable

CIRCLIP(4BB)

99009-55400-00

Unavailable

CIRCLIP (4H7)

93440-80082-00

Unavailable

BRG,CYL-CAL ROLLER 100G KY

93311-36042-00

Unavailable

CIRCLIP (1J7)

93440-72049-00

Unavailable

OIL SEAL, SO-TYPE

93104-60066-00

Unavailable
