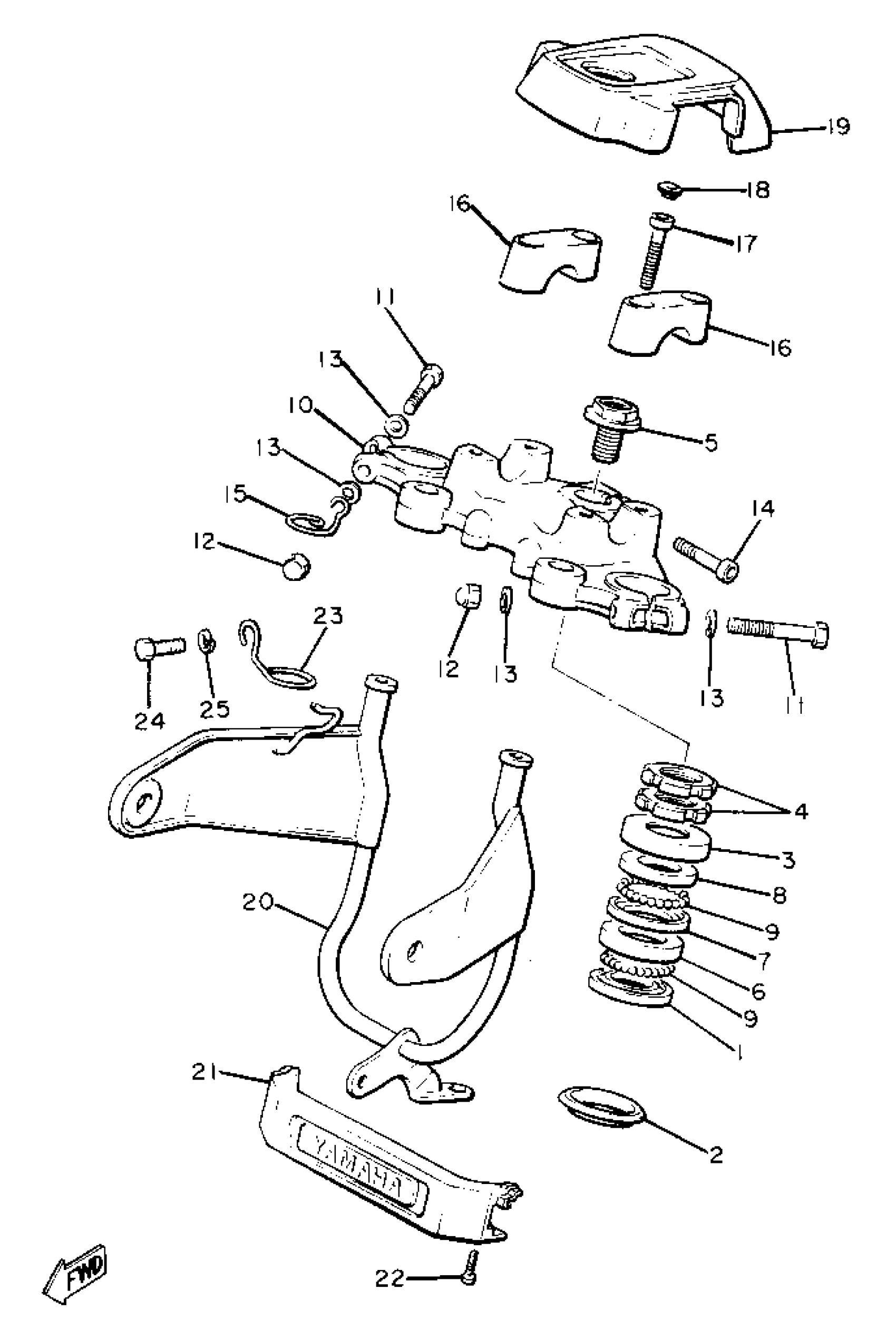

Find the part on the Steering diagram for your 1981 Yamaha XJ650L (XJ650LH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XJ650L (XJ650LH) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 1

256-23411-00-00

1
Out of stock

2

SEAL, DUST

164-23462-00-00

1

$6.42

In stock

3

COVER, BALL RACE

136-23415-00-00

1

$7.71

In stock

4

NUT

90179-25004-00

1

$20.78

In stock

5

BOLT (2A2)

90105-14102-00

1

$5.14

In stock

6

RACE, BALL2

256-23412-00-00

—

$35.19

In stock

7

RACE, BALL3

256-23413-00-00

—

$35.19

In stock

8

RACE, BALL4

256-23414-00-00

—

$51.94

In stock

9

BALL

93501-04011-00

1
Out of stock

10

CROWN, HANDLE

4H7-23435-00-98

1
Out of stock

11

BOLT, HEXAGON

97017-08055-00

1

$6.88

In stock

12

NUT, CAP

95307-08800-00

1
Out of stock

13

WASHER(6TA)

92907-08600-00

1

$2.52

In stock

14

BOLT,SOCKET

91317-08040-00

1

$5.68

In stock

15

HOLDER, CABLE

4H7-23317-00-00

1
Out of stock

16

HOLDER, HANDLE UPPER

4H7-23441-01-98

—
Out of stock

17

BOLT, SOCKET

91317-08030-00

—

$6.17

In stock

18

CAP, BOLT (371,447)

341-23469-00-00

—

$8.55

In stock

19

COVER, UPPER

4H7-26213-00-00

1
Out of stock

20

STAY, HEADLIGHT

4W5-23174-00-00

1
Out of stock

21

EMBLEM

4W5-23395-00-00

1
Out of stock

22

SCREW, FLAT

98707-05012-00

—
Out of stock

23

HOLDER, CABLE 1

4H3-23318-00-00

1
Out of stock

24

BOLT, HEXAGON

97017-06012-00

—

$2.62

In stock

25

WASHER, SPRING

92907-06100-00

—
Out of stock
