1981 Yamaha XJ650L (XJ650LH) Front Fork Diagram

← All diagrams

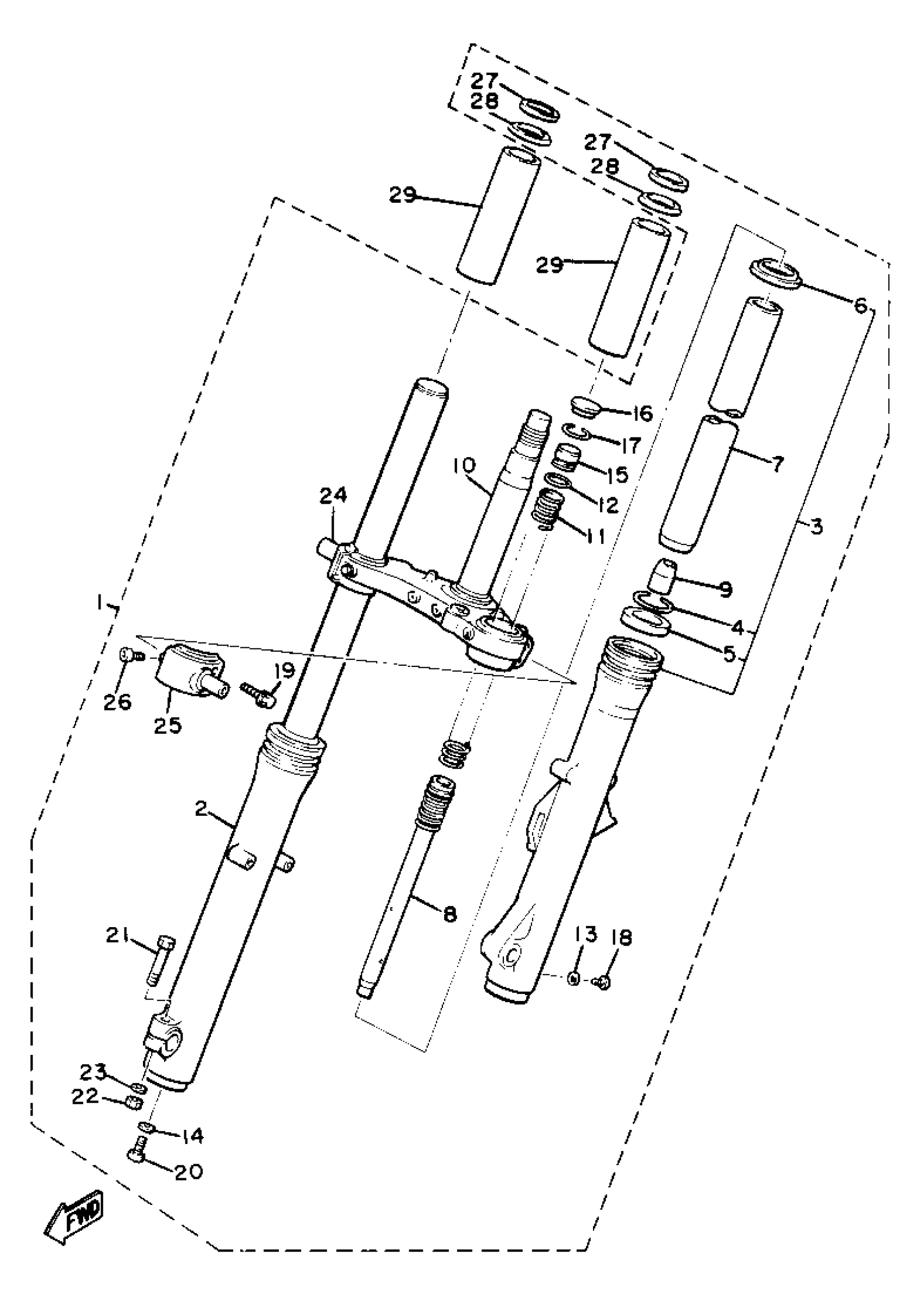

Find the part on the Front Fork diagram for your 1981 Yamaha XJ650L (XJ650LH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XJ650L (XJ650LH) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(4W5-23101-00-00)

1
Out of stock

2

. TUBE, OUTER 2 (4H7-23136-00-6G)

4W5-23136-00-6G

1
Out of stock

3

TUBE, OUTER 1

(4W5-23126-00-6G)

1
Out of stock

4

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

5

OIL SEAL

4ES-23145-00-00

1

$18.57

In stock

6

SEAL, DUST

33M-23144-00-00

1

$24.09

In stock

7

. INNER TUBE 1

4H7-23110-00-00

1
Out of stock

8

. CYLINDER, FRTFRKFRONT FORK

4H7-23170-00-00

1
Out of stock

9

TAPER SPINDLE

1W1-23173-L0-00

1

$15.98

In stock

10

. UNDER BRACKET

5N8-23340-00-33

1
Out of stock

11

SPRING, FRONT FORK

(4H7-23141-00-00)

1
Out of stock

12

O-RING

3J2-23114-00-00

1

$7.51

In stock

13

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

14

GASKET

509-23158-L0-00

1

$14.34

In stock

15

. BOLT, CAP

3Y1-23111-00-00

1
Out of stock

16

. CAP, FRONT FORK

3Y1-23168-00-00

1
Out of stock

17

RING, SNAP

3J2-23183-00-00

—

$4.20

In stock

18

PLUG, DRAIN

(4W5-23119-00-00)

1
Out of stock

19

BOLT, AXLE HOLDER

18G-23128-00-00

—

$7.77

In stock

20

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

21

BOLT(3HN)

97017-08045-00

—

$5.80

In stock

22

NUT(6TA)

95337-08600-00

—

$6.17

In stock

23

WASHER(JN5)

92907-08100-00

—

$5.98

In stock

24

COVER, OUTER 2

(4W5-23132-00-6G)

1
Out of stock

25

COVER, OUTER 1

(4W5-23122-00-6G)

1
Out of stock

26

. BOLT, HEX SCKT HEAD

4H7-23181-00-00

1
Out of stock

27

WASHER

2H7-23163-00-00

—

$4.35

In stock

28

GUIDE, COVER UPPER

(4W5-23115-00-00)

1
Out of stock

29

COVER, UPPER 2

(4W5-23131-00-6G)

1
Out of stock
