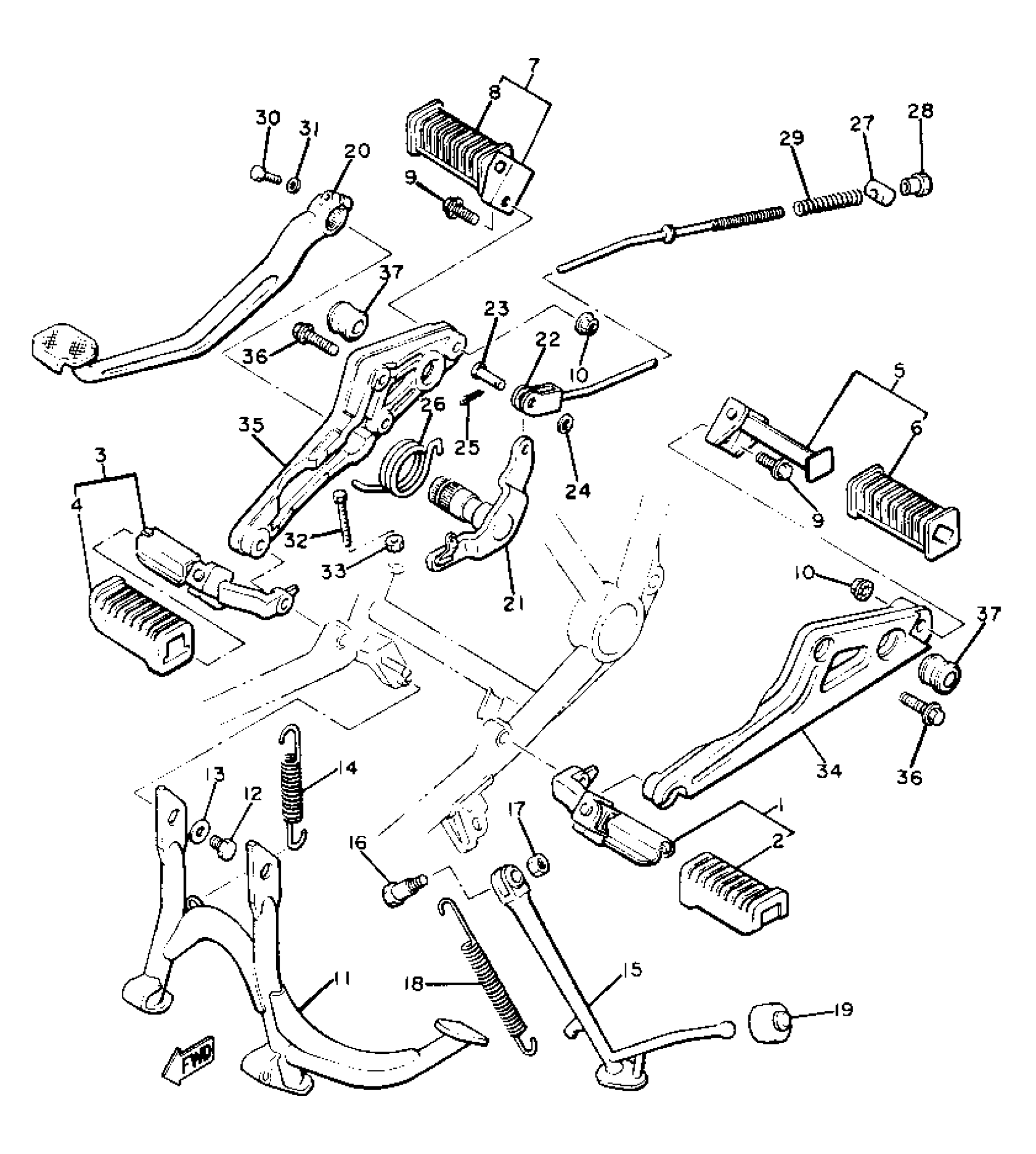

Yamaha XJ650LH (XJ650L) 1981 STAND FOOTREST Diagram

#

Description
Price

1

FRT FOOTREST ASSEMBLY L

4W5-27410-00-00

Unavailable

2

COVER, FOOTREST

4L0-27423-00-00

$49.99

3

FRT FOOTREST ASY R

4W5-27420-00-00

Unavailable

4

COVER, FOOTREST

4L0-27423-00-00

$49.99

5

RR FOOTREST ASSEMBLY 1

4W5-27430-00-00

Unavailable

6

. COVER, RR FOOTREST

1J7-27433-00-00

Unavailable

7

RR FOOTREST ASSEMBLY 2

4H7-27440-00-00

Unavailable

8

. COVER, RR FOOTREST

1J7-27444-00-00

Unavailable

9

BOLT, FLANGE

95817-10035-00

$9.49

10

NUT

90179-10321-00

Unavailable

11

STAND, MAIN

4H7-27111-00-R4

Unavailable

12

BOLT, HEXAGON

(97306-10016-00)

Unavailable

13

WASHER, PLATE (3J6)

90201-100A1-00

$8.49

14

SPRING, TENSION (1T5)

90506-35149-00

$17.99

15

STAND, SIDE

(4H7-27311-01-R4)

Unavailable

16

BOLT

90109-10473-00

Unavailable

17

NUT (3WP1)

95317-10700-00

Unavailable

18

SPRING, TENSION (1J7)

90506-28146-00

Unavailable

19

STOPPER, MAIN STAND

1A0-27114-00-00

Unavailable

20

PEDAL, BRAKE

(4W5-27211-00-00)

Unavailable

21

SHAFT, BRAKE PEDAL

(4W5-27212-00-00)

Unavailable

22

ROD, BRAKE

(4W5-27231-00-00)

Unavailable

23

PIN, clevis

90240-06079-00

Unavailable

24

WASHER(6TA)

92907-06200-00

Unavailable

25

PIN, COTTER

91490-20025-00

Unavailable

26

SPRING, COMPRESSION

90501-10609-00

Unavailable

27

PIN, SPEC''L SHAPE

90249-12150-00

Unavailable

28

NUT, SPEC''L SHAPE

90179-06324-00

Unavailable

29

SPRING, TORSION

90508-45446-00

Unavailable

30

BOLT (1J7)

90109-06468-00

Unavailable

31

WASHER, SPRING

92907-06100-00

Unavailable

32

SCREW, HEXAGON

(90153-06031-00)

Unavailable

33

NUT, HEXAGON (371 447)

90170-06184-00

Unavailable

34

BRACKET 2

4W5-27442-00-00

Unavailable

35

BRACKET 3

(4W5-27443-00-00)

Unavailable

36

BOLT, FLANGE

95817-10030-00

Unavailable

37

DAMPER, FOOTREST

3H3-27414-00-00

Unavailable
