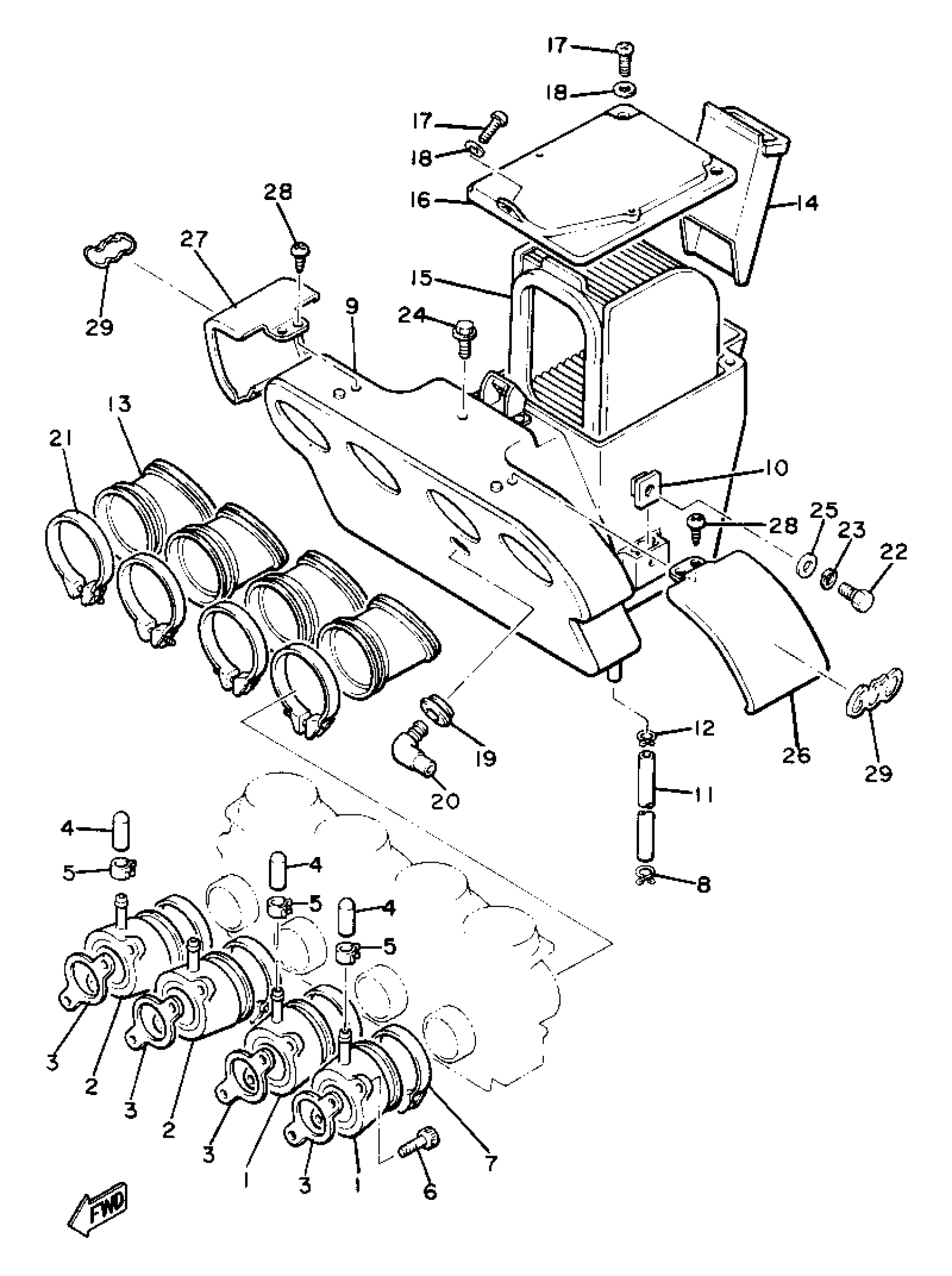

Yamaha XJ650LH (XJ650L) 1981 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

4H7-13586-02-00

$126.99

2

J0INT, CARBURET0R 2

5G2-13596-01-00

$137.99

3

GASKET, MANIFOLD

4H7-13556-11-00

$6.99

4

PLUG, BLIND

16G-13569-00-00

$7.99

5

CLIP

4W5-13577-00-00

Unavailable

6

BOLT,SOCKET

91317-06020-00

Unavailable

7

CLAMP, H0SE (29R)

90460-49248-00

$24.99

8

CLIP, DRAIN CLEANER

(4W5-14438-00-00)

Unavailable

9

AIR CLNR CASE ASSEMBLY

4H7-14401-00-00

Unavailable

10

PLATE, CLNR CS FTNG

4H7-14484-00-00

Unavailable

11

TUBE, FLEXIBLE(3NV)

91A21-07020-00

$10.49

12

CLIP, DRAIN CLEANER

(4W5-14438-00-00)

Unavailable

13

JOINT, AIR CLEANER 1

4H7-14453-00-00

$45.99

14

DUCT

4H7-14437-00-00

Unavailable

15

ELEMENT, AIR CLEANER

4H7-14451-00-00

$50.99

16

CAP, CLEANER CASE 1

4H7-14412-00-00

Unavailable

17

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

18

WASHER, PLAIN (646)

92990-06600-00

Unavailable

19

GROMMET (4H7)

90480-16278-00

Unavailable

20

PIPE

4H7-14419-00-00

Unavailable

21

HOSE CLAMP ASSY

90450-56001-00

Unavailable

22

BOLT, HEXAGON

97017-06020-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

BOLT, WITH WASHER (4L6)

90119-06029-00

Unavailable

25

WASHER, PLATE

90201-06380-00

Unavailable

26

COVER, CLNR CASE 1

4W5-1441A-00-00

Unavailable

27

COVER, CLNR CASE 2

4W5-1441E-00-00

Unavailable

28

SCREW, TAPPING(6U1)

97780-50610-00

Unavailable

29

EMBLEM

(4W5-1441K-00-00)

Unavailable
