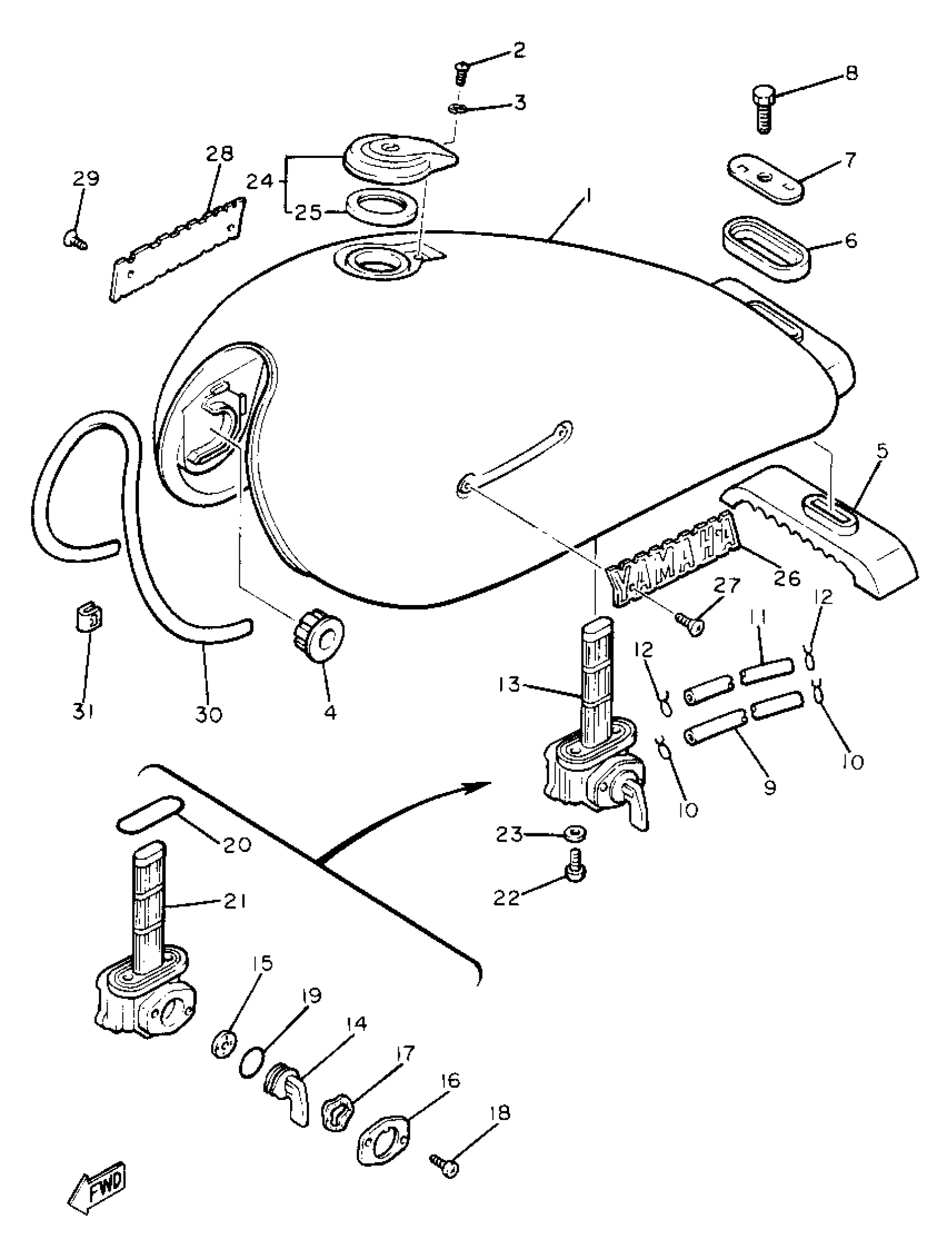

Yamaha XJ650LH (XJ650L) 1981 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

4H7-YK241-00-6G

Unavailable

2

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

3

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

4

DAMPER, LOCATING

4H7-24181-00-00

$6.99

5

DAMPER, LOCATING 2

4H7-24182-01-00

Unavailable

6

DAMPER, LOCATING 3

4H7-24183-00-00

Unavailable

7

WASHER, SPECIAL

4H7-24186-00-00

Unavailable

8

BOLT, HEXAGON

97017-08016-00

$8.49

9

HOSE (L400)

90445-116K9-00

$24.99

10

CLIP

90467-100A1-00

$7.49

11

HOSE (L770)

90445-090G9-00

$33.99

12

CLIP 101235600

90467-08003-00

$10.49

13

FUEL COCK ASSY 1

3AL-24500-00-00

$140.99

14

LEVER, COCK

(4W5-24524-00-00)

Unavailable

15

VALVE, FUEL COCK

3H3-24523-00-00

$31.99

16

PLATE, LVR FITTING

(4W5-24525-00-00)

Unavailable

17

WASHER, WAVE

10L-24518-00-00

Unavailable

18

SCREW, PAN HEAD(3AC)

98517-03008-00

Unavailable

19

O-RING, FUEL COCK

3H3-24534-00-00

Unavailable

20

O-RING

2W6-24512-00-00

Unavailable

21

NET, FILTER 1

3Y1-24514-00-00

Unavailable

22

SCREW, PAN HEAD

90157-06018-00

Unavailable

23

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

24

CAP ASSY

4X7-24602-10-00

Unavailable

25

. GASKET, CAP

4H7-24612-00-00

Unavailable

26

EMBLEM 1

(4W5-24161-00-00)

Unavailable

27

SCREW (2F0)

90152-04006-00

Unavailable

28

EMBLEM 2

(4W5-24162-00-00)

Unavailable

29

SCREW (2F0)

90152-04006-00

Unavailable

30

PLATE, MOLD

4W5-24189-00-00

Unavailable

31

CLIP

90468-03063-00

Unavailable
