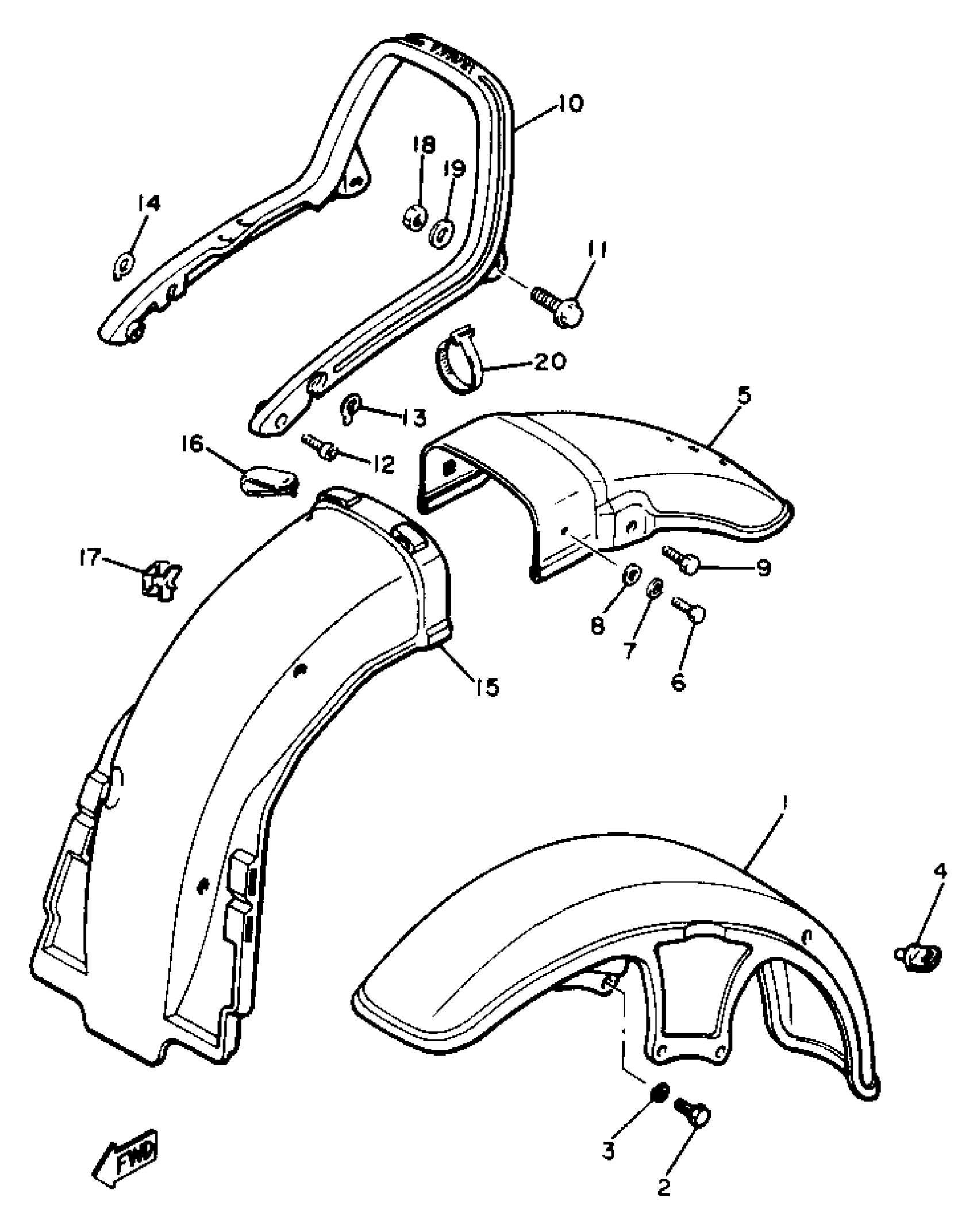

Yamaha XJ650LH (XJ650L) 1981 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

4H7-21510-01-6G

Unavailable

2

BOLT, HEXAGON

97017-08020-00

$9.49

3

WASHER(JN5)

92907-08100-00

$8.49

4

HOLDER, WIRE

1A0-21518-00-00

Unavailable

5

FENDER, REAR

4X7-21610-01-6G

Unavailable

6

BOLT (661)

97013-06012-00

$5.60

7

WASHER, SPRING

92995-06100-00

Unavailable

8

WASHER, PLAIN (646)

92990-06600-00

$2.80

9

BOLT, HEXAGON

(97326-10035-00)

Unavailable

10

STAY, REAR

(4W5-21645-00-00)

Unavailable

11

BOLT, FLANGE(3GD)

95817-10025-00

$8.49

12

BOLT,SOCKET

91314-08030-00

$2.34

13

WASHER 1

4W5-22243-00-00

Unavailable

14

WASHER 2 (4H7-22244-00)

4W5-22244-00-00

Unavailable

15

GUARD, MUD

4H7-21629-00-00

Unavailable

16

CLAMP (2H7)

90464-12027-00

Unavailable

17

CLAMP (1J7)

90464-16021-00

Unavailable

18

NUT(624)

95380-10600-00

Unavailable

19

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

20

BAND, SWITCH CORD

437-83936-01-00

Unavailable
