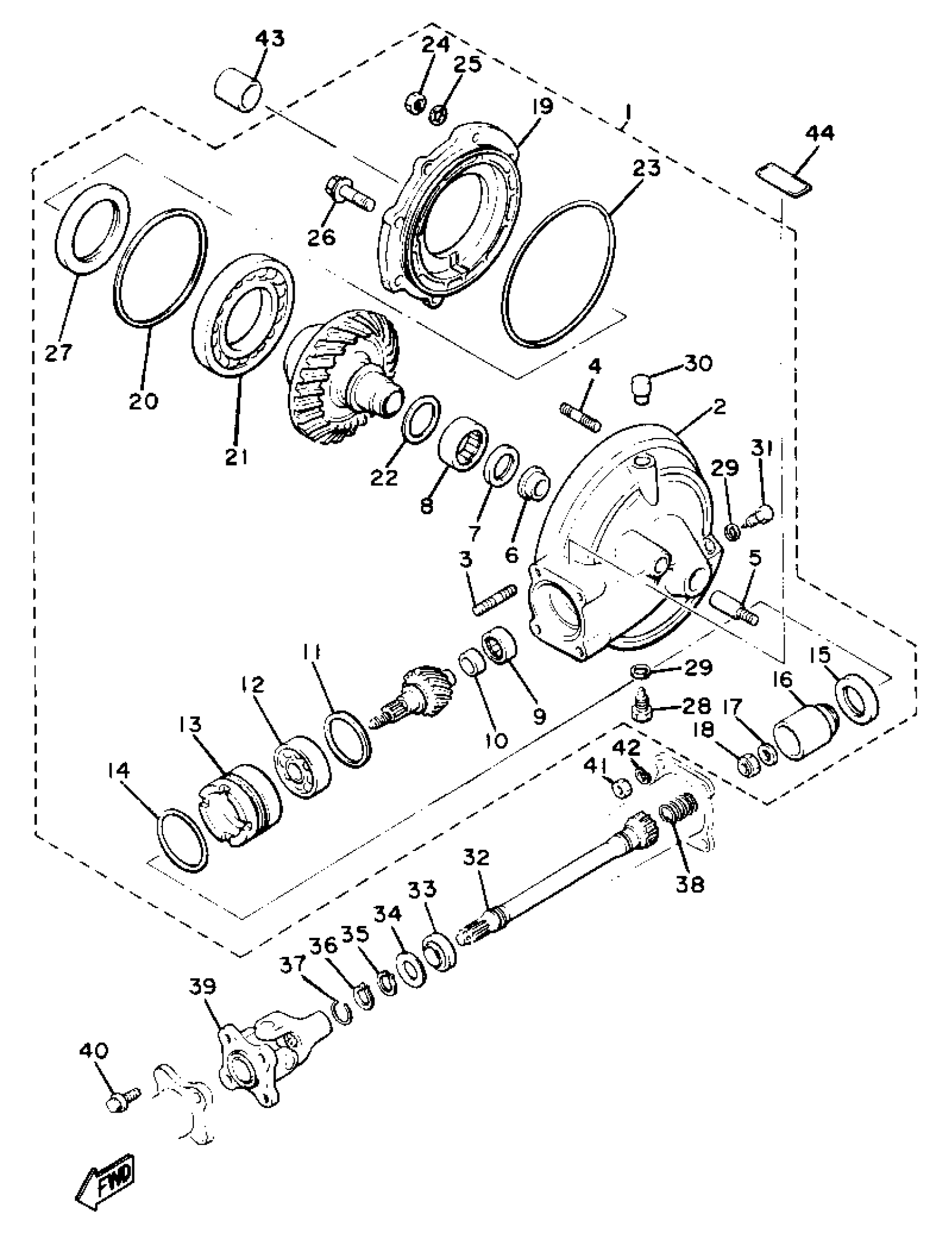

Yamaha XJ650LH (XJ650L) 1981 DRIVE SHAFT Diagram

#

Description
Price

1

RR AXL GR CASE ASSEMBLY

(4W5-46101-00-00)

Unavailable

2

HOUSING, DR SHAFT

(4W5-46151-00-00)

Unavailable

3

BOLT, STUD

(90116-10327-00)

Unavailable

4

.. BOLT, STUD

90116-08247-00

Unavailable

5

BOLT, STUD (4H7)

90116-10249-00

Unavailable

6

COLLAR, GUIDE

4H7-46153-00-00

$27.99

7

OIL SEAL (30X42X7-1J7)

93101-30084-00

$18.99

8

BRG,CYL-CAL ROLLER 80G KY

93311-43729-00

Unavailable

9

BEARING ASSY

2H7-46102-00-00

$58.99

10

RACE, INNER

2H7-46122-00-00

$28.99

11

SHIM, THRUST (0.30T)

1J7-17537-Y0-30

$4.47

11

SHIM, THRUST (0.40T)

1J7-17537-Y0-40

$4.47

11

SHIM, THRUST (0.50T)

1J7-17537-Y0-50

$4.47

12

BRG,R-B 6305RB1 62MM 245G KY

93306-30533-00

$137.99

13

RETAINER, BEARING

4H7-46125-00-00

$62.99

14

O-RING (4H7)

93210-60426-00

Unavailable

15

OIL SEAL (4H7)

93101-38098-00

Unavailable

16

COUPLING, GEAR

4H7-46123-01-00

Unavailable

17

WASHER, PLATE 11J7)

90201-14632-00

Unavailable

18

NUT, SELF-LOCKING (1J7)

90185-14070-00

Unavailable

19

HOUSING, BEARING

4H7-46152-00-00

Unavailable

20

SHIM, RING GEAR (0.25T)

1J7-46117-Y0-25

Unavailable

20

SHIM, RING GEAR (0.30T)

1J7-46117-Y0-30

Unavailable

20

. SHIM, RING GEAR (035T)

1J7-46117-Y0-35

Unavailable

20

SHIM, RING GEAR (0.40T)

1J7-46117-Y0-40

Unavailable

20

SHIM, RING GEAR (0.50T)

1J7-46117-Y0-50

Unavailable

21

BRG,R-B 16014C2 110MM 433G KY

93316-01403-00

Unavailable

22

. WASHER, THRUST

1J7-46118-Y0-18

Unavailable

22

. WASHER, THRUST

1J7-46118-Y0-19

Unavailable

22

. WASHER, THRUST

1J7-46118-Y0-20

Unavailable

22

. WASHER, THRUST

1J7-46118-Y0-21

Unavailable

22

. WASHER, THRUST

4H7-46118-00-14

Unavailable

22

. WASHER, THRUST

4H7-46118-00-15

Unavailable

22

. WASHER, THRUST

4H7-46118-00-16

Unavailable

22

. WASHER, THRUST

4H7-46118-00-17

Unavailable

22

. WASHER, THRUST

4H7-46118-00-22

Unavailable

22

. WASHER, THRUST

4H7-46118-00-23

Unavailable

23

O-RING (1J7)

93211-44348-00

Unavailable

24

NUT(6L2)

95333-08600-00

Unavailable

25

WASHER(6TA)

92907-08700-00

Unavailable

26

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

27

OIL SEAL (4H7)

93102-70167-00

Unavailable

28

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

29

GASKET

214-11198-01-00

Unavailable

30

. BREATHER COMP

4H3-17590-00-00

Unavailable

31

PLUG, STRAIGHT SCREW

90340-14004-00

Unavailable

32

SHAFT, DRIVE

4H7-46172-00-00

Unavailable

33

OIL SEAL(1FK)

93108-43013-00

Unavailable

34

WASHER, PLATE (4H7)

90201-231A2-00

Unavailable

35

CIRCLIP (4H7)

93410-23056-00

Unavailable

36

CIRCLIP (537)

93410-22039-00

Unavailable

37

CLIP

90468-14067-00

Unavailable

38

SPRING, COMPRESSION (2H7)

90501-16491-00

Unavailable

39

CROSS JOINT

4H7-46180-00-00

Unavailable

40

BOLT WASHER BASED (1J7)

90105-08066-00

Unavailable

41

NUT(6TD)

95337-10600-00

Unavailable

42

WASHER(6TA)

92907-10100-00

Unavailable

43

COLLAR (4H7)

90387-172A5-00

Unavailable

44

LABEL, OIL CAUTION

4H7-46181-10-00

Unavailable
