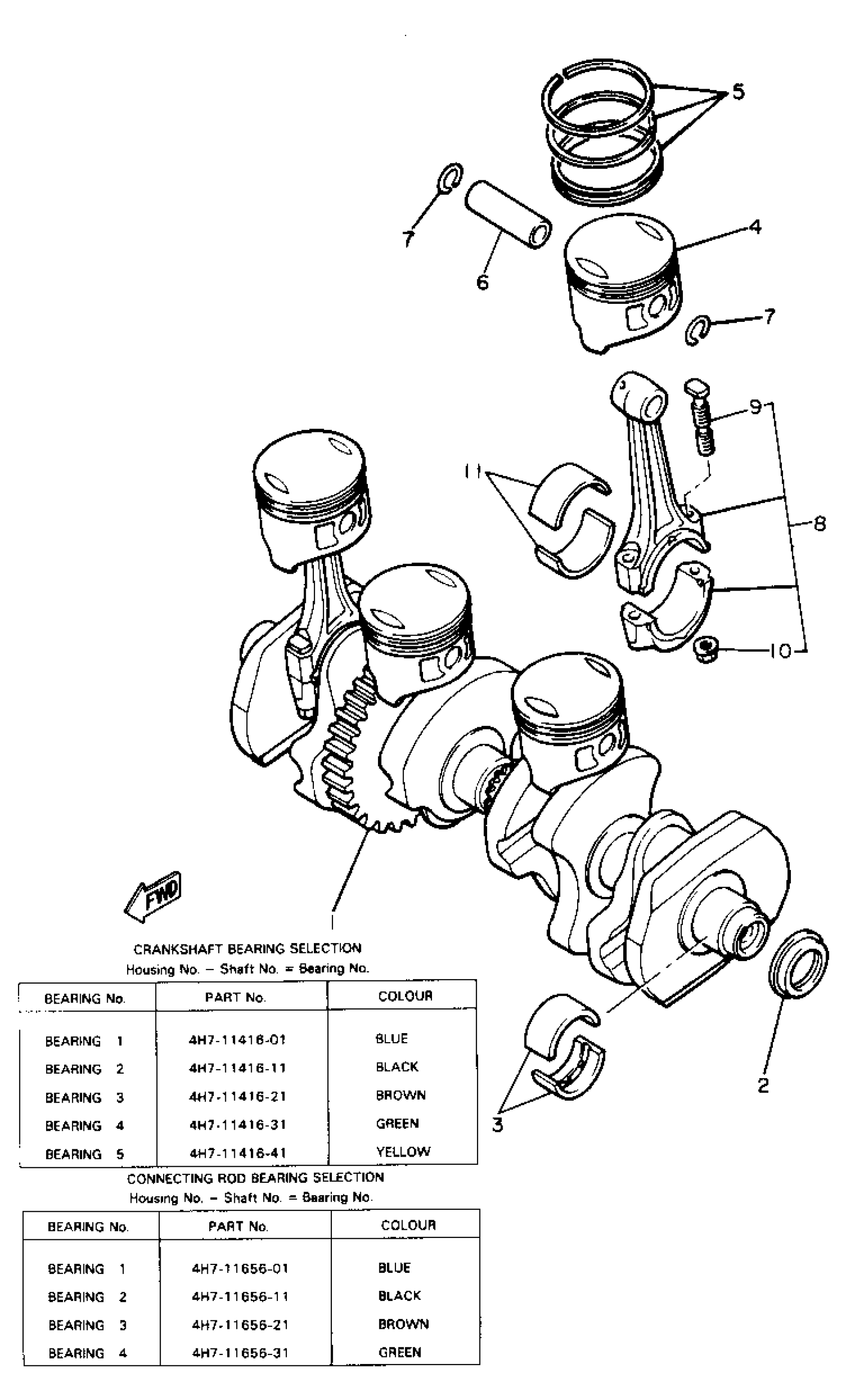

Yamaha XJ650LH (XJ650L) 1981 CRANKSHAFT PISTON Diagram

#

Description

Price

1

CRANKSHAFT

(4H7-11411-10-00)

Unavailable

2

OIL SEAL (32X45X6.5-2H7)

93101-32144-00

$24.99

3

PLANE BRNG, CRSF 1

4H7-11416-01-00

Unavailable

3

PLANE BRNG, CRSF 1

4H7-11416-11-00

Unavailable

3

PLANE BRNG, CRSF 1

4H7-11416-21-00

Unavailable

3

PLANE BRNG, CRSF 1

4H7-11416-31-00

Unavailable

3

PLANE BRNG, CRSF 1

4H7-11416-41-00

Unavailable

4

PISTON STD

4H7-11631-00-00

Unavailable

4

PISTON 1 O/S 0.25

4H7-11635-00-00

Unavailable

4

PISTON 2 O/S 0.50

4H7-11636-00-00

Unavailable

4

PISTON 3 O/S 0.75

4H7-11637-00-00

Unavailable

4

PISTON 4 O/S 1.00

4H7-11638-00-00

Unavailable

5

PISTON RING SET

4H7-11610-00-00

$63.99

5

PISTON RINGSET 1ST

4H7-11610-10-00

Unavailable

5

PISTON RINGSET 2ND (2ND O/S)

4H7-11610-20-00

Unavailable

5

PISTON RINGSET 3RD

4H7-11610-30-00

Unavailable

5

PISTON RINGSET 4TH

4H7-11610-40-00

Unavailable

6

PIN, PISTON

4H7-11633-00-00

Unavailable

7

CIRCLIP (1L9)

93450-17044-00

Unavailable

8

CONNECTING ROD ASY

4H7-11650-00-00

Unavailable

9

BOLT, CONNECTING ROD

4H7-11654-00-00

Unavailable

10

NUT (4H7)

90179-07307-00

Unavailable

11

PLANE BRNG,CON ROD

5G2-11656-10-00

Unavailable

11

PLANE BRNG, CON RODCONNECTING ROD

5G2-11656-00-00

Unavailable

11

PLANE BRNG, CON RODCONNECTING ROD

5G2-11656-20-00

Unavailable

11

PLANE BRNG, CON RODCONNECTING ROD

5G2-11656-30-00

Unavailable
