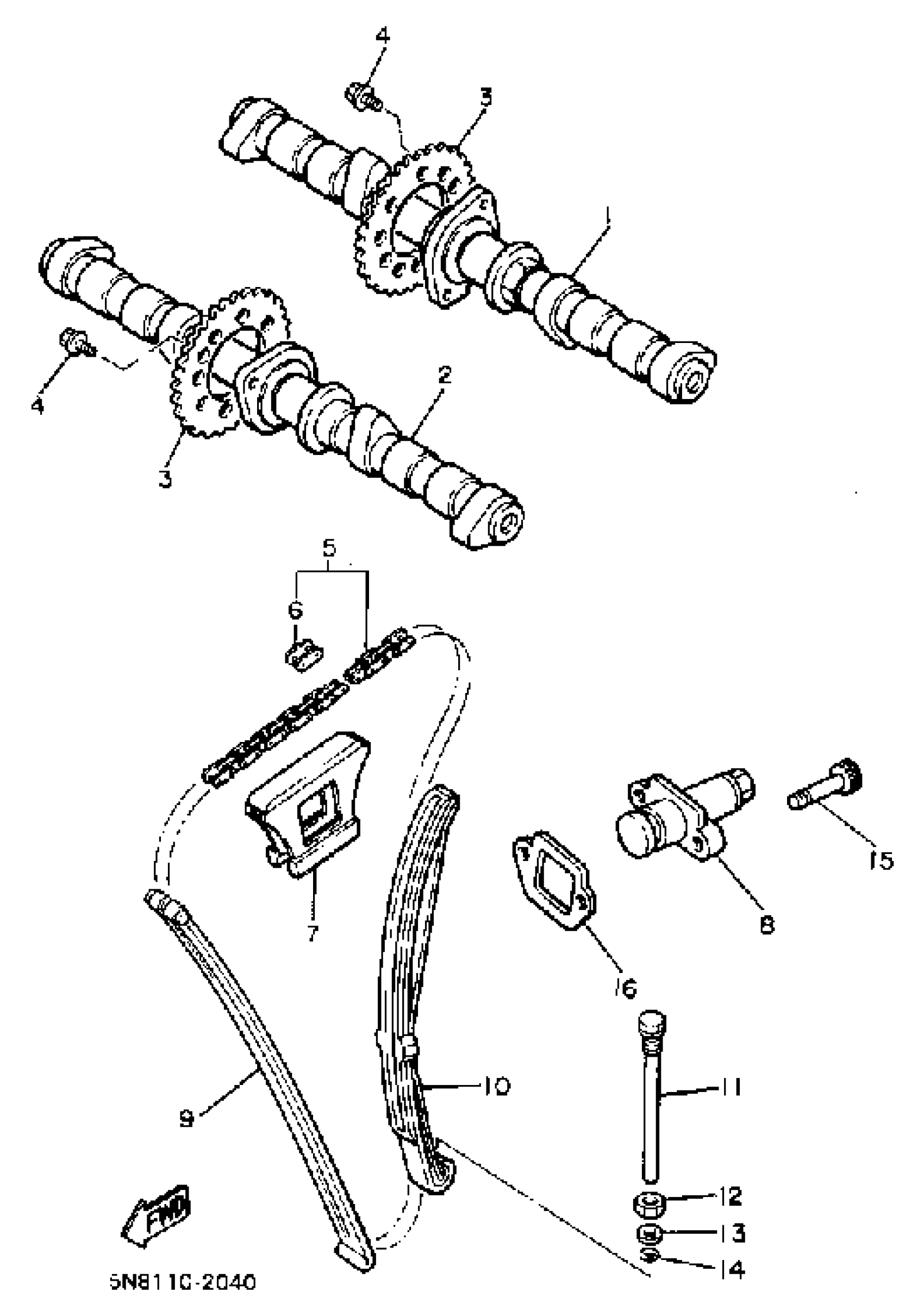

Yamaha XJ650K (XJ650) 1983 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

4H7-12171-00-00

Unavailable

2

CAMSHAFT 2

4H7-12181-00-00

Unavailable

3

SPROCKET, CAM CHAIN

4H7-12176-01-00

Unavailable

4

BOLT, FLANGE

90105-07004-00

$5.60

5

BOLT, FLANGE

90105-07004-00

$5.60

6

JOINT, CHAIN (583)

94600-02001-00

$7.99

7

GUIDE, STOPPER 2

4H7-12241-00-00

Unavailable

8

TENSNR ASSEMBLY, CAMCHN

5G2-12210-02-00

Unavailable

9

DAMPER, CHAIN 1

4H7-12251-00-00

Unavailable

10

DAMPER, CHAIN 2

4H7-12252-00-00

Unavailable

11

BOLT

90109-10570-00

Unavailable

12

NUT (682)

95380-10700-00

Unavailable

13

.. WASHER, PLATE

92990-08600-00

Unavailable

14

O-RING

93210-08003-00

$9.49

15

BOLT,SOCKET

91317-06025-00

$5.60

16

GASKET, TENSIONER CASE

3YX-12213-00-00

Unavailable
