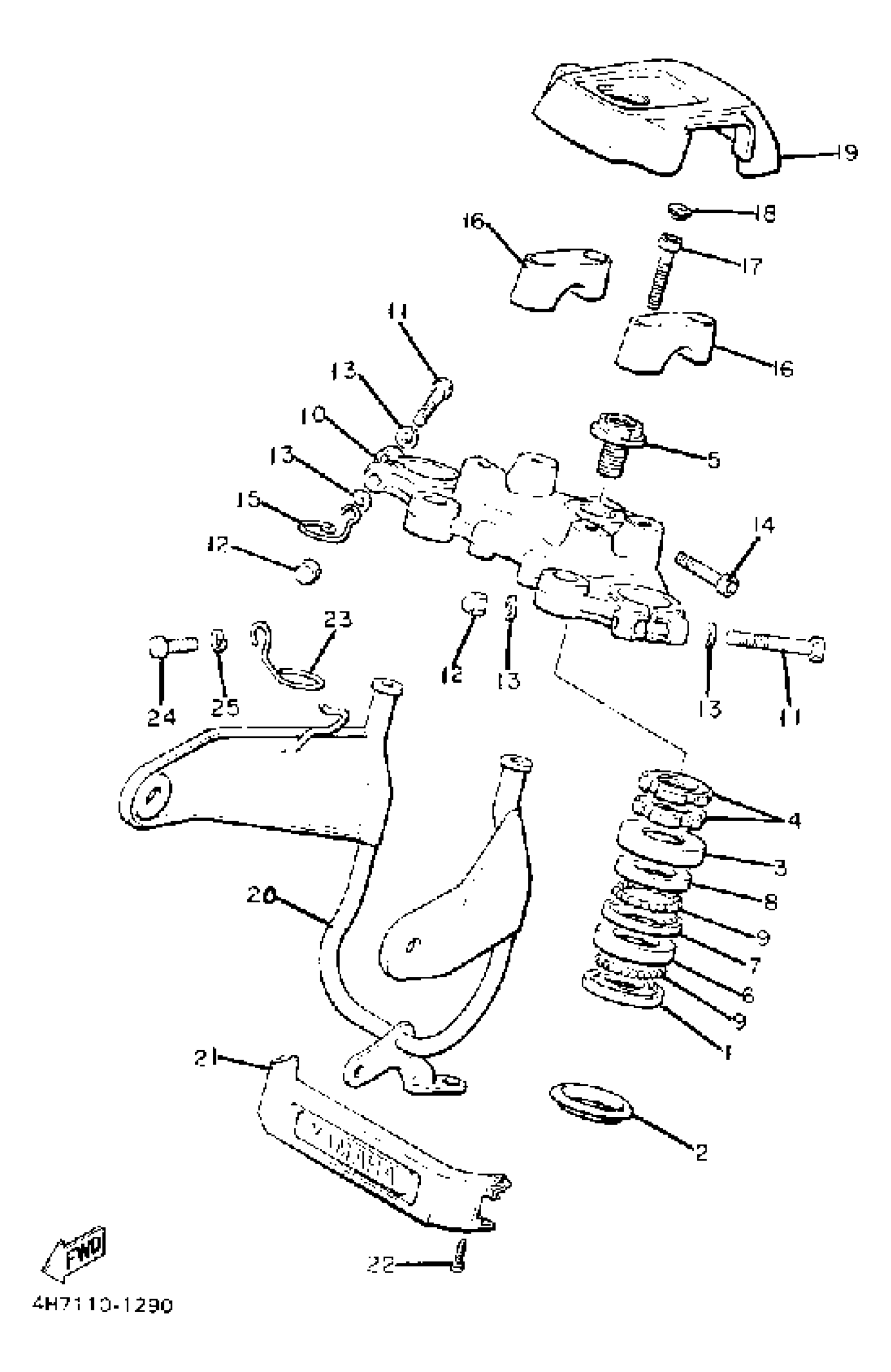

Yamaha XJ650J (XJ650) 1982 STEERING Diagram

#

Description
Price

1

RACE, BALL 1

256-23411-00-00

Unavailable

2

SEAL, DUST

164-23462-00-00

$7.99

3

COVER, BALL RACE

136-23415-00-00

$8.99

4

NUT

90179-25004-00

$24.99

5

BOLT (2A2)

90105-14102-00

$5.60

6

RACE, BALL2

256-23412-00-00

Unavailable

7

RACE, BALL3

256-23413-00-00

Unavailable

8

RACE, BALL4

256-23414-00-00

Unavailable

9

BALL

93501-04011-00

$8.49

10

CROWN, HANDLE

4H7-23435-00-98

Unavailable

11

BOLT, HEXAGON

97017-08055-00

$9.49

12

NUT, CAP

95307-08800-00

$7.49

13

WASHER(6TA)

92907-08600-00

$3.03

14

BOLT,SOCKET

91317-08040-00

$7.49

15

HOLDER, CABLE

4H7-23317-00-00

Unavailable

16

HOLDER, HANDLE UPPER

4H7-23441-01-98

Unavailable

17

BOLT, SOCKET

91317-08030-00

Unavailable

18

CAP, BOLT (371,447)

341-23469-00-00

Unavailable

19

COVER, UPPER

4H7-26213-00-00

Unavailable

20

STAY, HEADLIGHT

4H7-23174-00-00

Unavailable

21

EMBLEM

4H7-23395-00-00

Unavailable

22

SCREW(617)

98780-05012-00

Unavailable

23

HOLDER, CABLE 1

4H3-23318-00-00

Unavailable

24

BOLT (661)

97013-06012-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable
