1982 Yamaha XJ650 (XJ650J) Speedometer Tachometer Diagram

← All diagrams

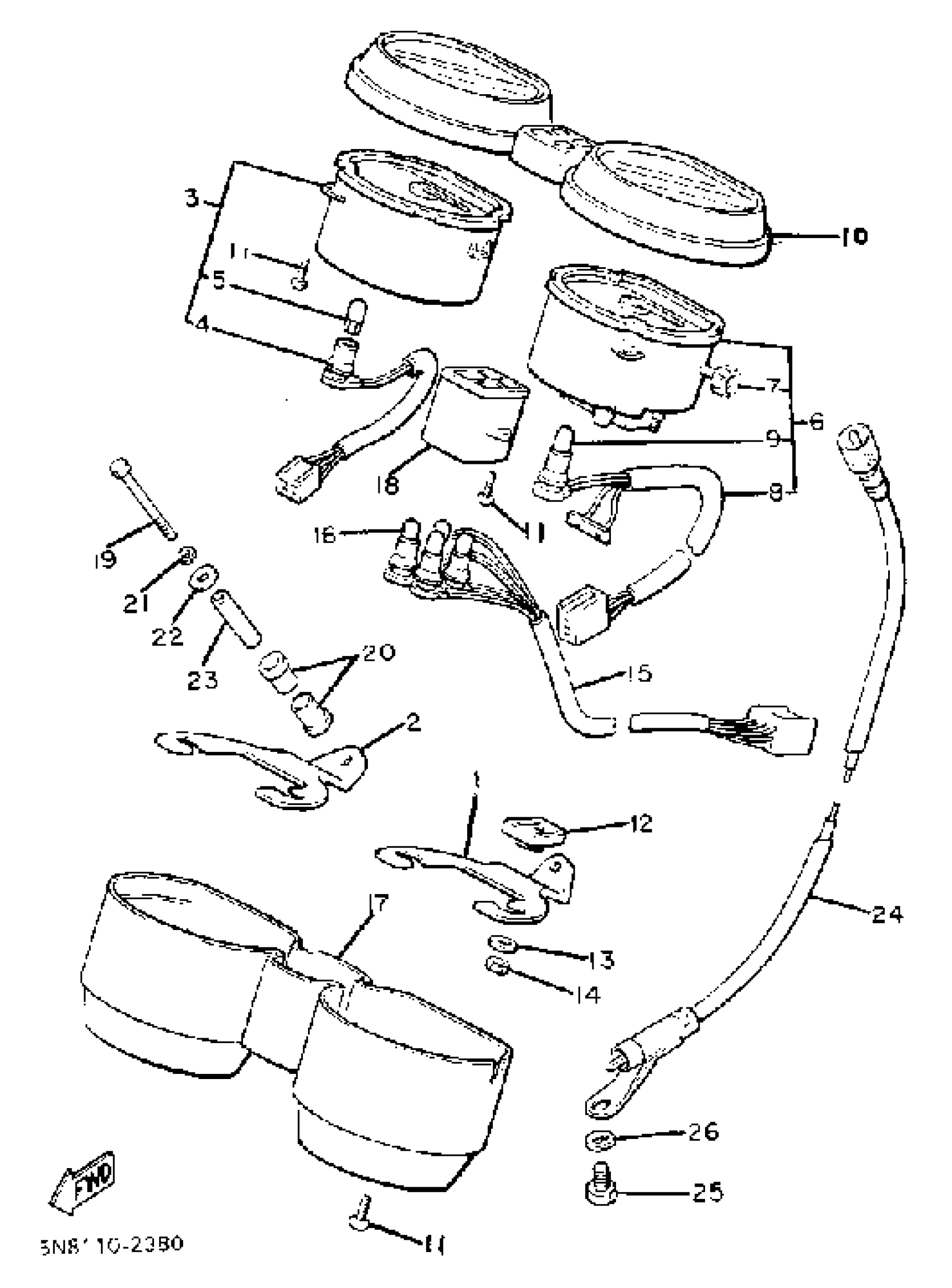

Find the part on the Speedometer Tachometer diagram for your 1982 Yamaha XJ650 (XJ650J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XJ650 (XJ650J) Speedometer Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, METER

4H7-83519-00-00

1
Out of stock

2

BRACKET, TACHOMETER

4H7-83545-00-00

1
Out of stock

3

TACHOMETER ASSEMBLY

5N8-83540-00-00

1
Out of stock

4

. SOCKET CORD ASSEMBLY

5N8-83520-00-00

1
Out of stock

5

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

6

SPEEDOMETER ASSEMBLY

5K5-83570-A0-00

1
Out of stock

7

. KNOB, TRIP METER

4U8-83578-00-00

1
Out of stock

8

. SOCKET CORD ASSY

10M-83520-20-00

1
Out of stock

9

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

10

COVER, METER

4H7-83559-A0-00

1
Out of stock

11

SCREW, TAPPING

4H7-83616-00-00

—

$2.49

In stock

12

DAMPER

4H7-83523-00-00

1
Out of stock

13

WASHER PLATE 803835240000

90201-05032-00

—

$6.71

In stock

14

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

15

SOCKET CORD ASSEMBLY

5K5-83509-00-00

1
Out of stock

16

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

17

COVER, METER 2

4H7-83579-00-00

1
Out of stock

18

BODY, PILOT LIGHT

4H7-83587-00-00

1
Out of stock

19

BOLT, HEXAGON

97017-06045-00

—
Out of stock

20

DAMPER, METER BRACKET

584-83541-00-00

—
Out of stock

21

WASHER, SPRING

92907-06100-00

—
Out of stock

22

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

23

COLLAR (877)

90387-06249-00

—
Out of stock

24

SPEEDOMETER CABLE

5K5-83550-00-00

1
Out of stock

25

SCREW, HEXAGON

90153-06004-00

1
Out of stock

26

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
