1982 Yamaha XJ650 (XJ650J) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1982 Yamaha XJ650 (XJ650J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

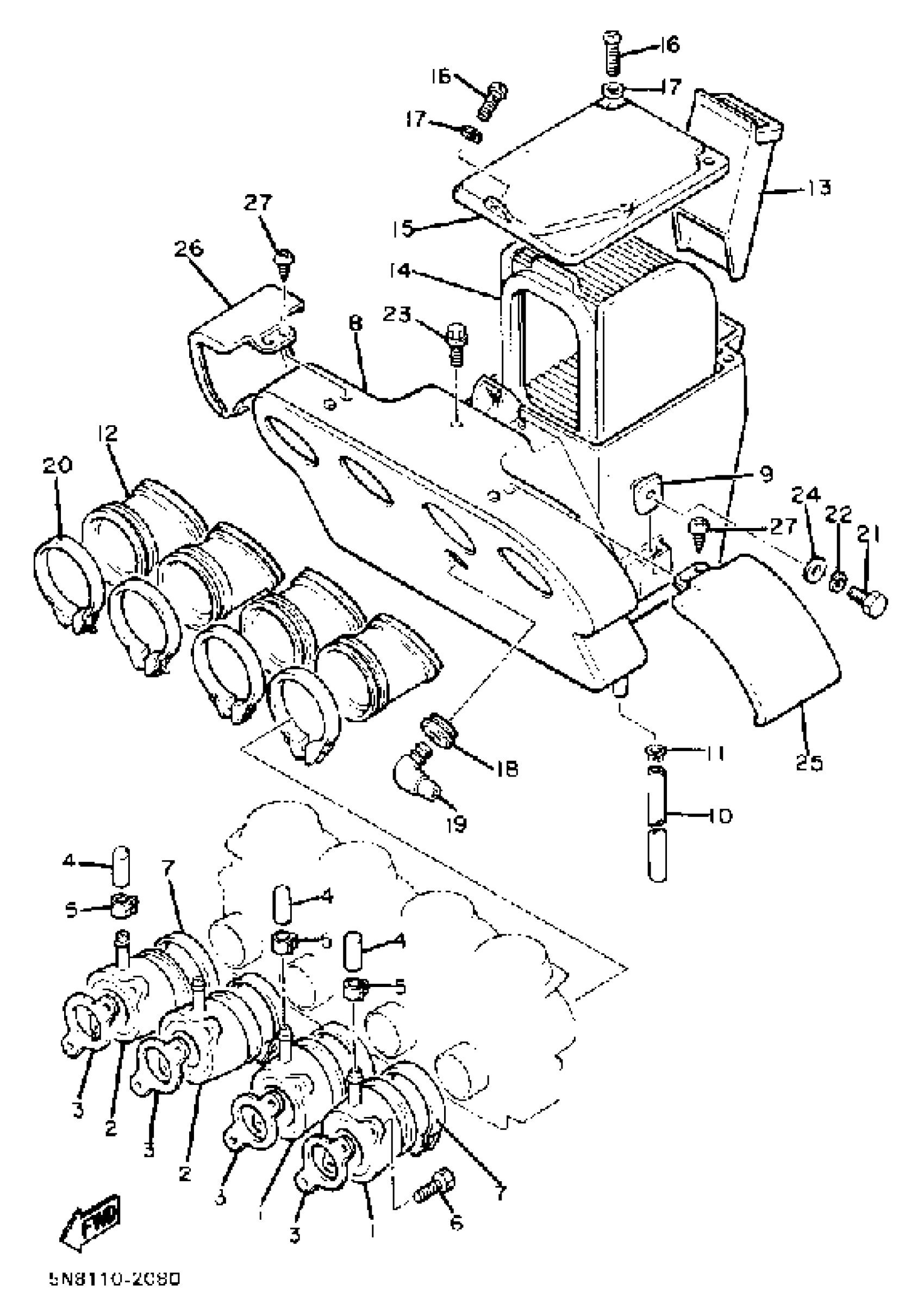

1982 Yamaha XJ650 (XJ650J) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

5G2-13586-02-00

1
Out of stock

2

J0INT, CARBURET0R 2

5G2-13596-01-00

1

$129.17

In stock

3

GASKET, MANIFOLD

4H7-13556-11-00

1

$5.93

In stock

4

PLUG, BLIND

16G-13569-00-00

1
Out of stock

5

CLIP (3G0)

90467-10039-00

1
Out of stock

6

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

7

CLAMP, H0SE (29R)

90460-49248-00

1

$20.77

In stock

8

AIR CLNR CASE ASSEMBLY

4H7-14401-00-00

1
Out of stock

9

PLATE, CLNR CS FTNG

4H7-14484-00-00

1
Out of stock

10

HOSE (L370)

90445-112E1-00

1

$20.43

In stock

11

CLIP

90467-090A2-00

1

$2.51

In stock

12

JOINT, AIR CLEANER 1

4H7-14453-00-00

1

$39.59

In stock

13

DUCT

4H7-14437-00-00

1
Out of stock

14

ELEMENT, AIR CLEANER

4H7-14451-00-00

1

$46.43

In stock

15

CAP, CLEANER CASE 1

4H7-14412-00-00

1
Out of stock

16

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

17

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

18

GROMMET (4H7)

90480-16278-00

—

$2.62

In stock

19

PIPE

4H7-14419-00-00

1
Out of stock

20

HOSE CLAMP ASSY

90450-56001-00

—

$14.77

In stock

21

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

BOLT, WITH WASHER (4L6)

90119-06029-00

—

$5.38

In stock

24

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

25

COVER, CLNR CASE 1

4H7-1441A-00-00

1
Out of stock

26

COVER, CLNR CASE 2

4H7-1441E-00-00

1
Out of stock

27

SCREW, TAPPING(6U1)

97780-50610-00

—
Out of stock
