1982 Yamaha XJ650 (XJ650J) Clutch Diagram

← All diagrams

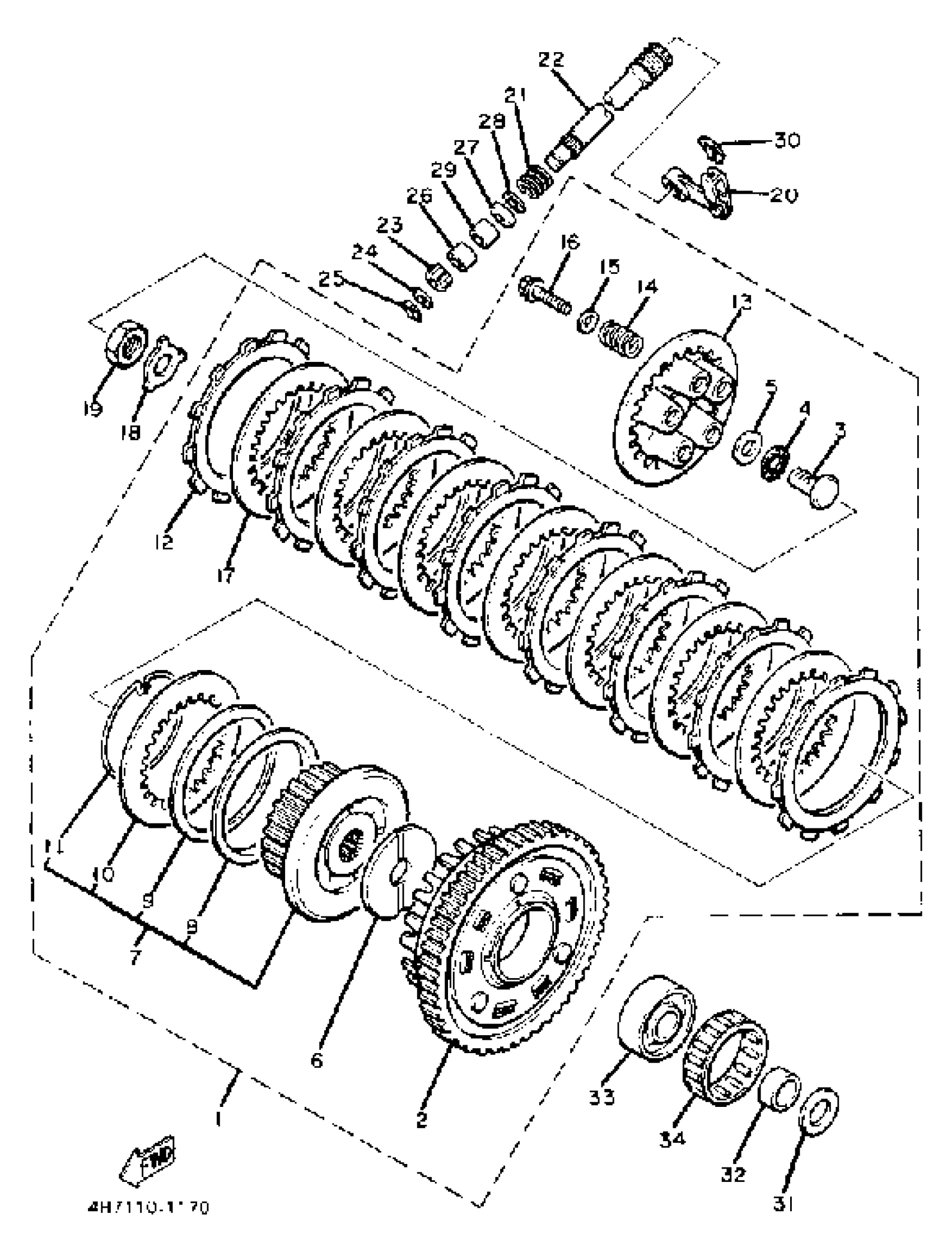

Find the part on the Clutch diagram for your 1982 Yamaha XJ650 (XJ650J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XJ650 (XJ650J) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLUTCH ASSEMBLY

(4H7-16300-10-00)

1
Out of stock

2

. PRI DRVN GEARCOMP (97T)

4H7-16150-10-00

1
Out of stock

3

. ROD, PUSH 1

4H7-16356-01-00

1
Out of stock

4

BEARING, THRUST (713)

93340-21505-00

1

$16.62

In stock

5

WASHER, PLATE (5G3)

90201-154E9-00

1

$6.31

In stock

6

PLATE, THRUST 1

4H7-16154-00-00

—

$19.91

In stock

7

. CLUTCH BOSS ASSY

4H7-16370-00-00

1
Out of stock

8

PLATE, SEAT

1J7-16384-00-00

—
Out of stock

9

.. SPRING, CLUTCH BOSS

1J7-16383-01-00

1
Out of stock

10

PLATE, CLUTCH 1

168-16324-10-00

—

$19.09

In stock

11

RING, CLUTCH BOSS

1J7-16385-00-00

—
Out of stock

12

PLATE, FRICTION

4H7-16321-02-00

1

$20.06

In stock

13

. PLATE, PRESSURE 1

4H7-16351-00-00

1
Out of stock

14

SPRING, COMPRESSION (4H7)

90501-23598-00

1
Out of stock

15

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

16

BOLT, FLANGE

95822-06025-00

—

$1.46

In stock

17

PLATE, CLUTCH 2

168-16325-10-00

—

$13.32

In stock

18

WASHER, LOCK (34L)

90215-20231-00

—
Out of stock

19

NUT (34L)

90170-20327-00

—

$16.98

In stock

20

PUSH LEVER ASSY

4HM-16340-00-00

1
Out of stock

21

SPRING, TORSION

90508-16459-00

—

$5.62

In stock

22

AXLE, PUSH LEVER

4H7-16382-01-00

—

$26.68

In stock

23

PINION, RELEASE

3LD-16398-00-00

—

$22.37

In stock

24

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

25

CIRCLIP

99080-07600-00

1

$2.89

In stock

26

BEARING

93317-11096-00

—
Out of stock

27

OIL SEAL (4G0)

93102-12224-00

—
Out of stock

28

WASHER (692)

90201-12M34-00

1

$3.47

In stock

29

BRG,CYL-CAL ROLLER 6G TM

93315-11206-00

—

$31.64

In stock

30

CIRCLIP(J51)

99080-09600-00

—

$1.88

In stock

31

PLATE, THRUST

2K7-16154-00-00

—

$18.11

In stock

32

COLLAR (4H7)

90387-252A8-00

—

$11.29

In stock

33

SPACER 1

4H7-16181-00-00

—

$50.82

In stock

34

BRG,CYL-CAL ROLLER

93310-365H3-00

—

$43.83

In stock
