Description

Price

1

SPACER

90560-15116-00

Unavailable

2

FLANGE, SPACER

146-25115-00-00

$6.99

3

BEARING

93306-30212-00

$40.99

4

OIL SEAL (22X42X7)

93102-22014-00

$12.49

5

CLUTCH, METER (371,447)

341-25149-00-00

$7.99

6

RETAINER, CLUTCH (371,447)

341-25846-00-00

$8.99

7

OIL SEAL (45X56X6)

93105-45017-00

$14.99

8

WHEEL, CAST FRONT

4H7-25168-29-98

Unavailable

9

325H19 L303TL #TBB (3.25-19) (94132-1946)

94132-193M3-00

Unavailable

9

325H19 L303TL #TBB (3.25-19) (94132-1946)

94132-193M3-00

Unavailable

10

VALVE, RIM (31A)

93900-00031-00

$16.99

11

COVER, HOUSING

1U4-25847-00-00

Unavailable

12

BALANCER, WHEEL

5MT-25398-00-00

$17.49

12

BALANCER, WHEEL

5MT-25398-00-00

$17.49

12

BALANCER, WHEEL

5MT-25398-00-00

$17.49

13

GEAR UNIT ASSEMBLY

4H7-25190-00-00

Unavailable

14

AXLE, WHEEL

4H7-25181-01-00

Unavailable

15

WASHER, PLAIN

92990-14200-00

Unavailable

16

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

17

PIN, COTTER

91490-30030-00

Unavailable

18

COLLAR (1Y8)

90387-15734-00

Unavailable

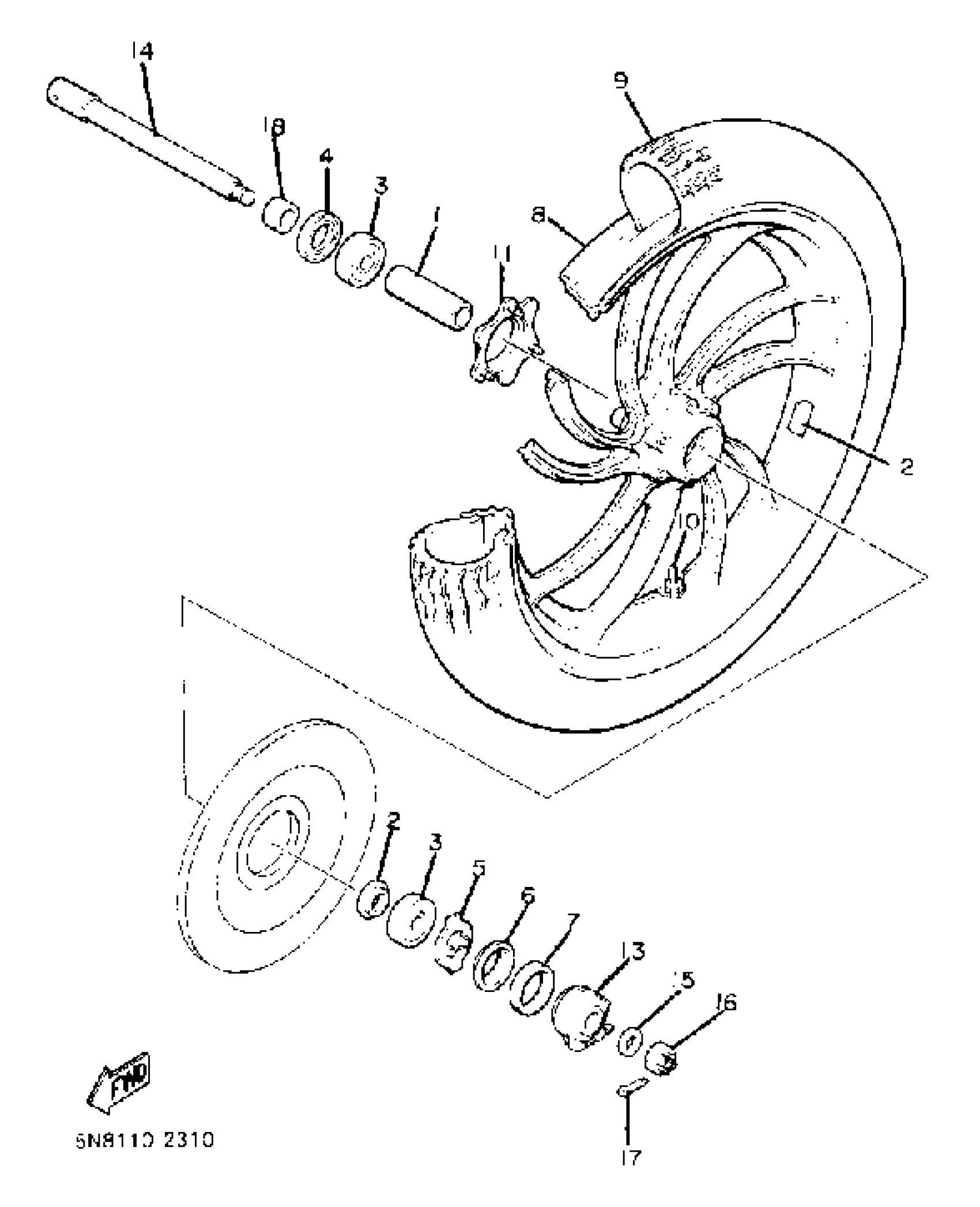

Yamaha XJ650J (XJ650) 1982 FRONT WHEEL Diagram

SPACER

FLANGE, SPACER

BEARING

OIL SEAL (22X42X7)

CLUTCH, METER (371,447)

RETAINER, CLUTCH (371,447)

OIL SEAL (45X56X6)

WHEEL, CAST FRONT

325H19 L303TL #TBB (3.25-19) (94132-1946)

325H19 L303TL #TBB (3.25-19) (94132-1946)

VALVE, RIM (31A)

COVER, HOUSING

BALANCER, WHEEL

BALANCER, WHEEL

BALANCER, WHEEL

GEAR UNIT ASSEMBLY

AXLE, WHEEL

WASHER, PLAIN

NUT, CASTLE(2UJ)

PIN, COTTER

COLLAR (1Y8)
