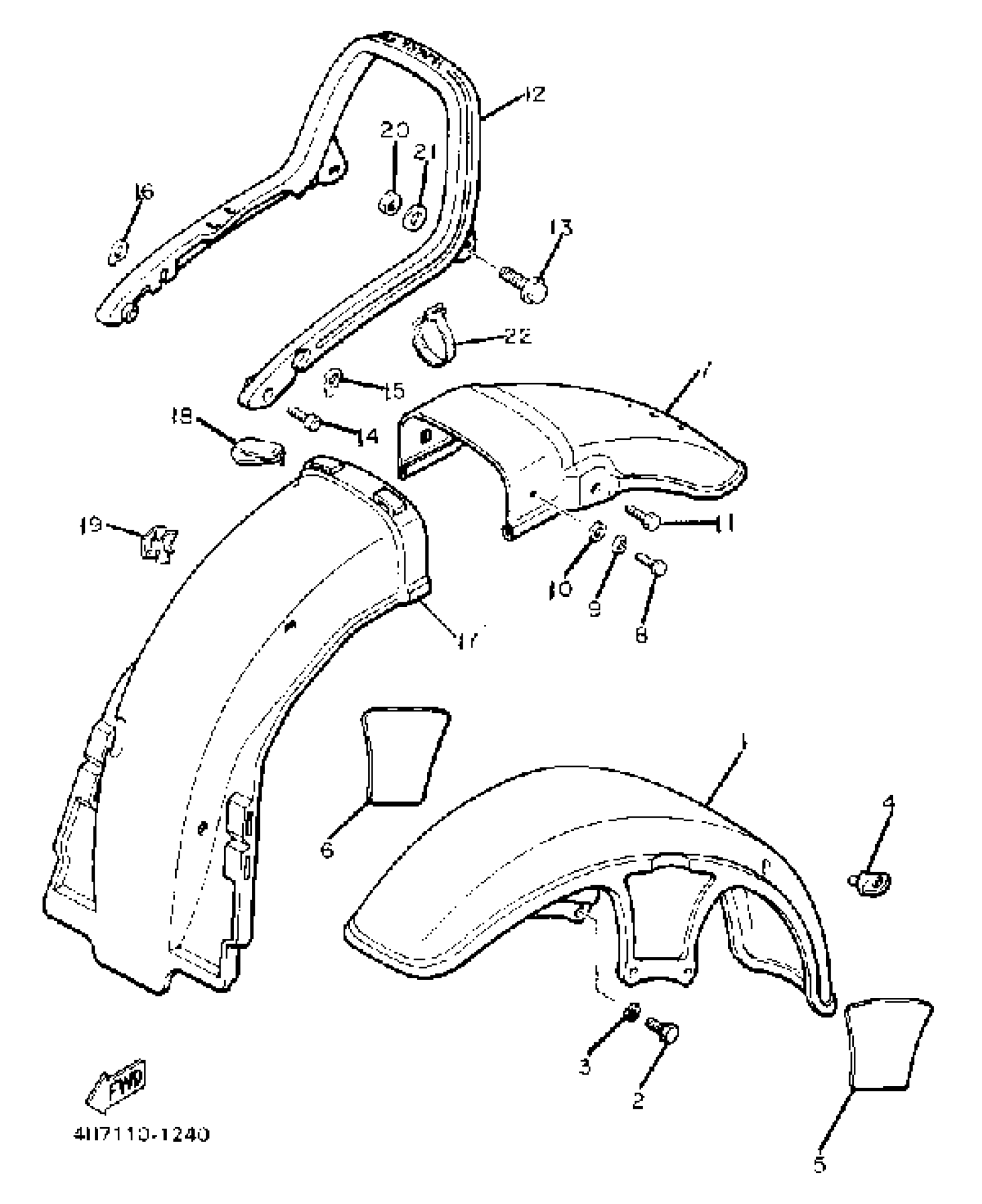

Yamaha XJ650J (XJ650) 1982 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

4H7-21510-01-93

Unavailable

2

BOLT, HEXAGON

97013-08020-00

$1.16

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

HOLDER, WIRE

1A0-21518-00-00

Unavailable

5

SEAL 1

4H7-21575-00-00

Unavailable

6

SEAL 2

4H7-21576-00-00

Unavailable

7

FENDER, REAR

4X7-21610-01-93

Unavailable

8

BOLT (661)

97013-06012-00

$5.60

9

WASHER, SPRING

92995-06100-00

Unavailable

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

BOLT(N02)

97070-10035-00

$14.99

12

STAY, REAR

4H7-21645-00-00

Unavailable

13

BOLT, FLANGE(3GD)

95817-10025-00

$8.49

14

BOLT,SOCKET

91314-08030-00

$2.34

15

WASHER 1

4H7-22243-00-00

Unavailable

16

WASHER 2 (4H7-22244-00)

4W5-22244-00-00

Unavailable

17

GUARD, MUD

4H7-21629-00-00

Unavailable

18

CLAMP (2H7)

90464-12027-00

Unavailable

19

CLAMP (1J7)

90464-16021-00

Unavailable

20

NUT(3BM)

95314-10600-00

Unavailable

21

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

22

BAND, SWITCH CORD

437-83936-01-00

Unavailable
