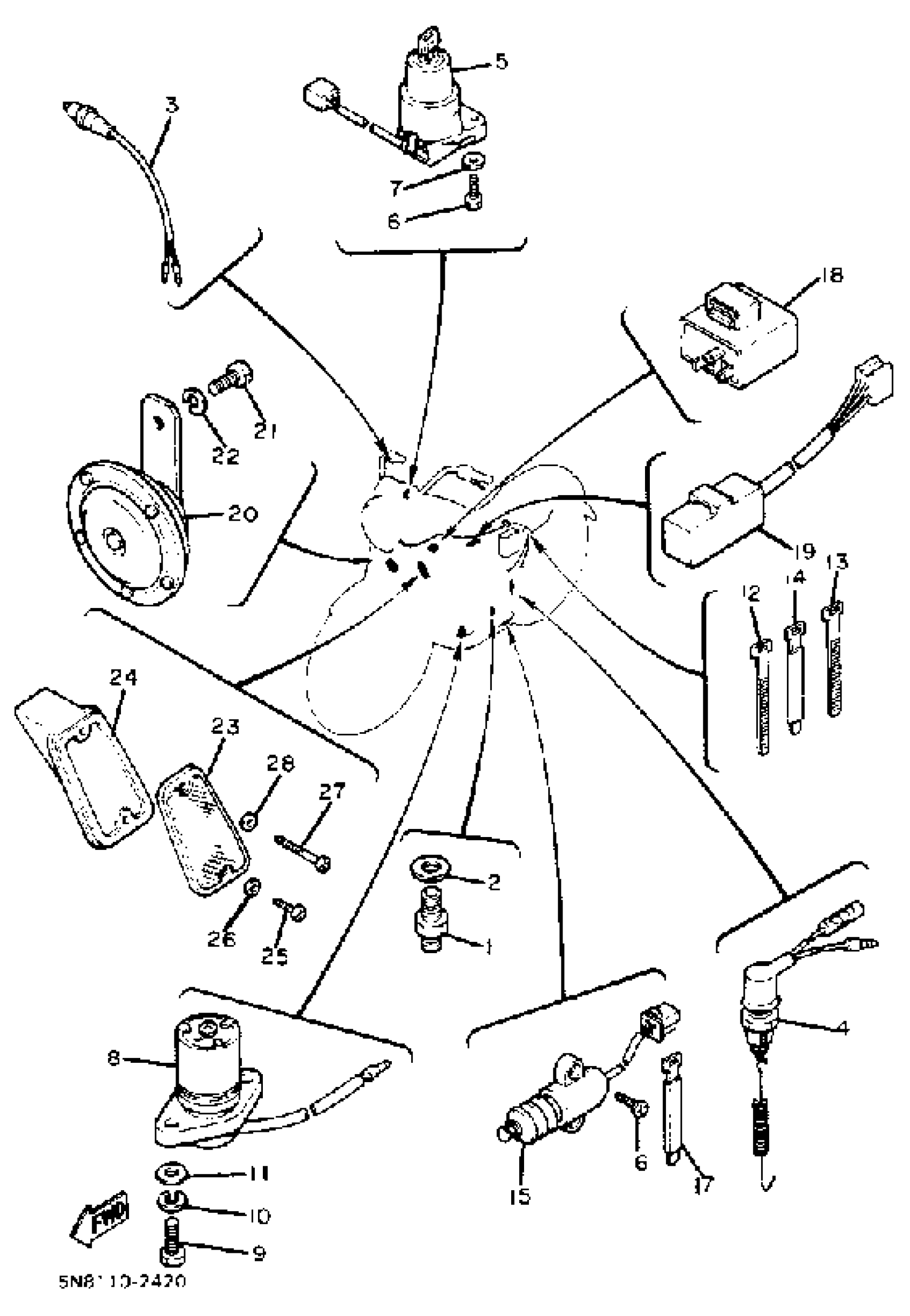

Yamaha XJ650J (XJ650) 1982 ELECTRICAL 2 Diagram

#

Description
Price

1

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

2

GASKET (5R6)

90430-10171-00

$3.18

3

FRONT STOP SWITCH ASSY

26H-83980-00-00

$74.99

4

STOP SWITCH ASSEMBLY (1E9-82530-00-00)

1E9-82530-02-00

Unavailable

5

MAIN SWITCH STEERING LOCK

3JV-82501-00-00

Unavailable

6

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

7

WASHER, PLAIN (646)

92990-06600-00

$2.80

8

OIL LEVEL GAUGE ASSY

4H7-85720-02-00

Unavailable

9

BOLT, HEXAGON

97017-06020-00

$4.06

10

WASHER, SPRING

92995-06100-00

Unavailable

11

WASHER, PLAIN (646)

92990-06600-00

$2.80

12

BAND, SWITCH CORD

437-83936-11-00

$4.63

13

BAND, SWITCH CORD

25G-83936-01-00

$4.78

14

BAND

341-26397-01-00

Unavailable

15

SWITCH, SIDE STAND

33E-82566-00-00

Unavailable

16

SCREW, FLAT

98707-05016-00

Unavailable

17

BAND

341-26397-01-00

Unavailable

18

FLASHER RELAY ASSEMBLY

4H7-83350-70-00

Unavailable

19

FLASHER CANCELING UNIT

1A0-83395-03-00

Unavailable

20

HORN

1J7-83371-22-00

Unavailable

21

BOLT, HEXAGON

97017-08016-00

Unavailable

22

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

23

FRONT REFLECTOR ASSEMBLY

3G1-85110-00-00

Unavailable

24

BASE, REFLECTOR

4H7-85127-01-00

Unavailable

25

SCREW, PAN HEAD

98507-04018-00

Unavailable

26

WASHER, PLAIN (646)

92990-04600-00

Unavailable

27

SCREW, PAN HEAD

98580-04540-00

Unavailable

28

WASHER, PLAIN (646)

92990-04600-00

Unavailable
