1981 Yamaha XJ650 (XJ650H) Transmission Diagram

← All diagrams

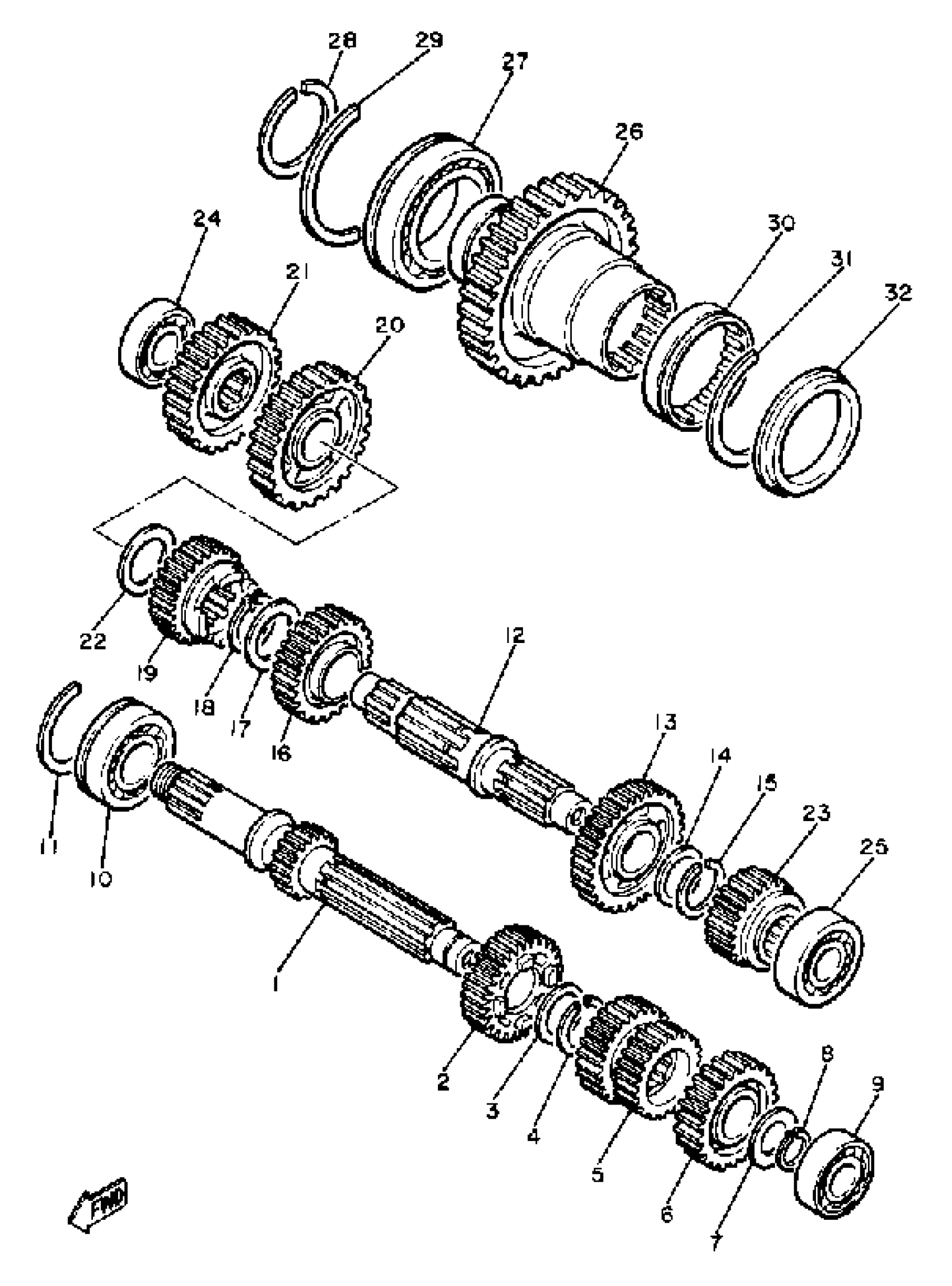

Find the part on the Transmission diagram for your 1981 Yamaha XJ650 (XJ650H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XJ650 (XJ650H) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MAIN AXLE ASSEMBLY

4H7-17401-00-00

1
Out of stock

2

GEAR, 4TH PINION

4H7-17141-00-00

—

$47.43

In stock

3

WASHER (3J3)

90209-22191-00

1

$5.62

In stock

4

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

5

GEAR, 2ND PINION

4BB-17121-00-00

1
Out of stock

6

GEAR, 5TH PINION

4KM-17151-00-00

—

$97.42

In stock

7

WASHER PLATE 328171160000

90201-20276-00

1
Out of stock

8

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

9

BEARING(1GJ)

93306-20458-00

1

$36.19

In stock

10

BEARING(1WG)

93306-30550-00

1
Out of stock

11

CIRCLIP

278-17424-01-00

1
Out of stock

12

DRIVE AXLE ASSEMBLY

(4H7-17402-00-00)

1
Out of stock

12

DRIVE AXLE ASSEMBLY

4H7-17402-01-00

1
Out of stock

13

GEAR, 2ND WHEEL

4H7-17221-00-00

1
Out of stock

13

GEAR, 2ND WHEEL (30T)

99999-02204-00

1
Out of stock

14

WASHER (3J3)

90209-22191-00

1

$5.62

In stock

15

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

16

GEAR, 3RD WHEEL

4KM-17231-01-00

—

$63.57

In stock

16

GEAR, 3RD WHEEL

(4H7-17231-00-00)

1
Out of stock

17

WASHER (4H7)

90209-25196-00

—
Out of stock

18

CIRCLIP (2H7)

93440-28062-00

—
Out of stock

19

GEAR, 4TH WHEEL

4H7-17241-00-00

1
Out of stock

20

GEAR, 1ST WHEEL

4KM-17211-00-00

—

$89.40

In stock

21

GEAR, MIDDLE DRIVE

4H7-17582-00-00

1
Out of stock

22

WASHER, PLATE (4H7)

90201-243A2-00

—
Out of stock

23

GEAR, 5TH WHEEL

16G-17251-00-00

1
Out of stock

23

GEAR, 5TH WHEEL

4H7-17251-00-00

1
Out of stock

24

BRG,R-B 6303 47MM 115G NK

93306-30302-00

—

$39.88

In stock

25

BEARING (83A581A)

93306-30425-00

1
Out of stock

26

GEAR, MIDDLE DRIVEN

(4H7-17583-00-00)

1
Out of stock

27

BRG R-B 6911 80MM 176G NT

93306-91101-00

—

$70.03

In stock

28

CIRCLIP(4BB)

99009-55400-00

—

$4.29

In stock

29

CIRCLIP (4H7)

93440-80082-00

—
Out of stock

30

—

$49.25

In stock

31

CIRCLIP (1J7)

93440-72049-00

—
Out of stock

32

OIL SEAL, SO-TYPE

93104-60066-00

1
Out of stock
