1981 Yamaha XJ650 (XJ650H) Drive Shaft Diagram

← All diagrams

Find the part on the Drive Shaft diagram for your 1981 Yamaha XJ650 (XJ650H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

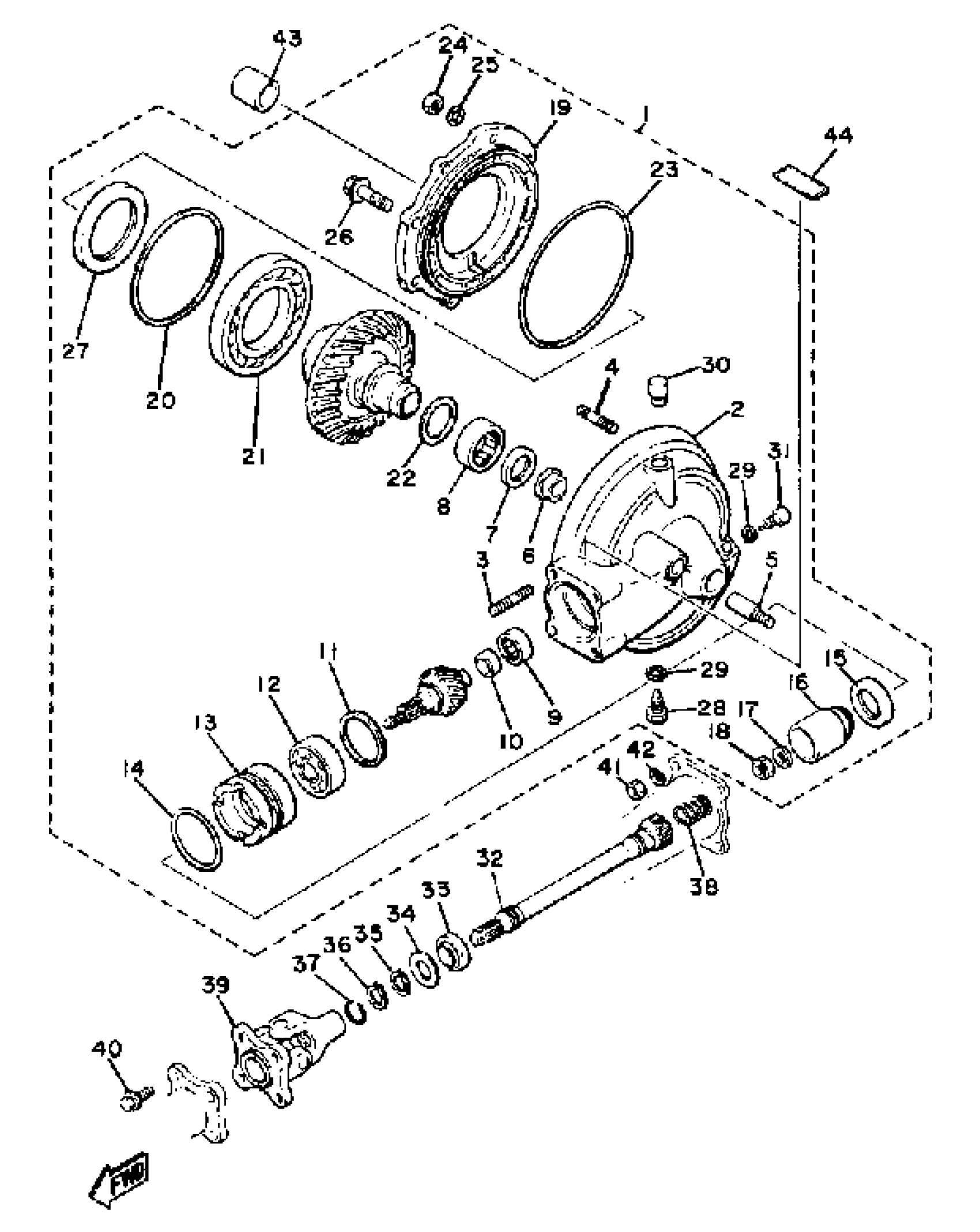

1981 Yamaha XJ650 (XJ650H) Drive Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR AXLE GEAR CASE ASSEMBLY

5G2-46101-01-00

1
Out of stock

2

HOUSING, DR SHAFT

(4H7-46151-00-00)

1
Out of stock

3

BOLT, STUD

(90116-10327-00)

1
Out of stock

4

.. BOLT, STUD

90116-08247-00

1
Out of stock

5

BOLT, STUD (4H7)

90116-10249-00

—
Out of stock

6

COLLAR, GUIDE

4H7-46153-00-00

1
Out of stock

7

OIL SEAL (30X42X7-1J7)

93101-30084-00

1
Out of stock

8

BRG,CYL-CAL ROLLER 80G KY

93311-43729-00

—
Out of stock

9

BEARING ASSY

2H7-46102-00-00

1
Out of stock

10

RACE, INNER

2H7-46122-00-00

1
Out of stock

11

SHIM, THRUST (0.30T)

1J7-17537-Y0-30

1
Out of stock

11

SHIM, THRUST (0.40T)

1J7-17537-Y0-40

1
Out of stock

11

SHIM, THRUST (0.50T)

1J7-17537-Y0-50

1
Out of stock

12

BRG,R-B 6305RB1 62MM 245G KY

93306-30533-00

1
Out of stock

13

RETAINER, BEARING

4H7-46125-00-00

1
Out of stock

14

O-RING (4H7)

93210-60426-00

—
Out of stock

15

OIL SEAL (4H7)

93101-38098-00

—
Out of stock

16

COUPLING, GEAR

4H7-46123-01-00

—
Out of stock

17

WASHER, PLATE 11J7)

90201-14632-00

—
Out of stock

18

NUT, SELF-LOCKING (1J7)

90185-14070-00

—
Out of stock

19

HOUSING, BEARING

4H7-46152-00-00

—
Out of stock

20

SHIM, RING GEAR (0.25T)

1J7-46117-Y0-25

—
Out of stock

20

SHIM, RING GEAR (0.30T)

1J7-46117-Y0-30

—
Out of stock

20

. SHIM, RING GEAR (035T)

1J7-46117-Y0-35

1
Out of stock

20

SHIM, RING GEAR (0.40T)

1J7-46117-Y0-40

—
Out of stock

20

SHIM, RING GEAR (0.50T)

1J7-46117-Y0-50

—
Out of stock

21

BRG,R-B 16014C2 110MM 433G KY

93316-01403-00

—
Out of stock

22

. WASHER, THRUST

1J7-46118-Y0-18

1
Out of stock

22

. WASHER, THRUST

1J7-46118-Y0-19

1
Out of stock

22

. WASHER, THRUST

1J7-46118-Y0-20

1
Out of stock

22

. WASHER, THRUST

1J7-46118-Y0-21

1
Out of stock

22

. WASHER, THRUST

4H7-46118-00-14

1
Out of stock

22

. WASHER, THRUST

4H7-46118-00-15

1
Out of stock

22

. WASHER, THRUST

4H7-46118-00-16

1
Out of stock

22

. WASHER, THRUST

4H7-46118-00-17

1
Out of stock

22

. WASHER, THRUST

4H7-46118-00-22

1
Out of stock

22

. WASHER, THRUST

4H7-46118-00-23

1
Out of stock

23

O-RING (1J7)

93211-44348-00

—
Out of stock

24

NUT(6L2)

95333-08600-00

—
Out of stock

25

WASHER(6TA)

92907-08700-00

—
Out of stock

26

BOLT, FLANGE(3GD)

95817-10025-00

—
Out of stock

27

OIL SEAL (4H7)

93102-70167-00

—
Out of stock

28

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

—
Out of stock

29

GASKET

214-11198-01-00

—
Out of stock

30

BREATHER COMP.

2H7-17590-00-00

—
Out of stock

31

PLUG, STRAIGHT SCREW

90340-14004-00

—
Out of stock

32

SHAFT, DRIVE

4H7-46172-00-00

1
Out of stock

33

OIL SEAL(1FK)

93108-43013-00

—
Out of stock

34

WASHER, PLATE (4H7)

90201-231A2-00

—
Out of stock

35

CIRCLIP (4H7)

93410-23056-00

—
Out of stock

36

CIRCLIP (537)

93410-22039-00

—
Out of stock

37

CLIP

90468-14067-00

1
Out of stock

38

SPRING, COMPRESSION (2H7)

90501-16491-00

—
Out of stock

39

CROSS JOINT

4H7-46180-00-00

1
Out of stock

40

BOLT WASHER BASED (1J7)

90105-08066-00

—
Out of stock

41

NUT(6TD)

95337-10600-00

—
Out of stock

42

WASHER(6TA)

92907-10100-00

—
Out of stock

43

COLLAR (4H7)

90387-172A5-00

—
Out of stock

44

LABEL, OIL CAUTION

4H7-46181-10-00

1
Out of stock
