1981 Yamaha XJ650 (XJ650H) Tailllight Diagram

← All diagrams

Find the part on the Tailllight diagram for your 1981 Yamaha XJ650 (XJ650H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

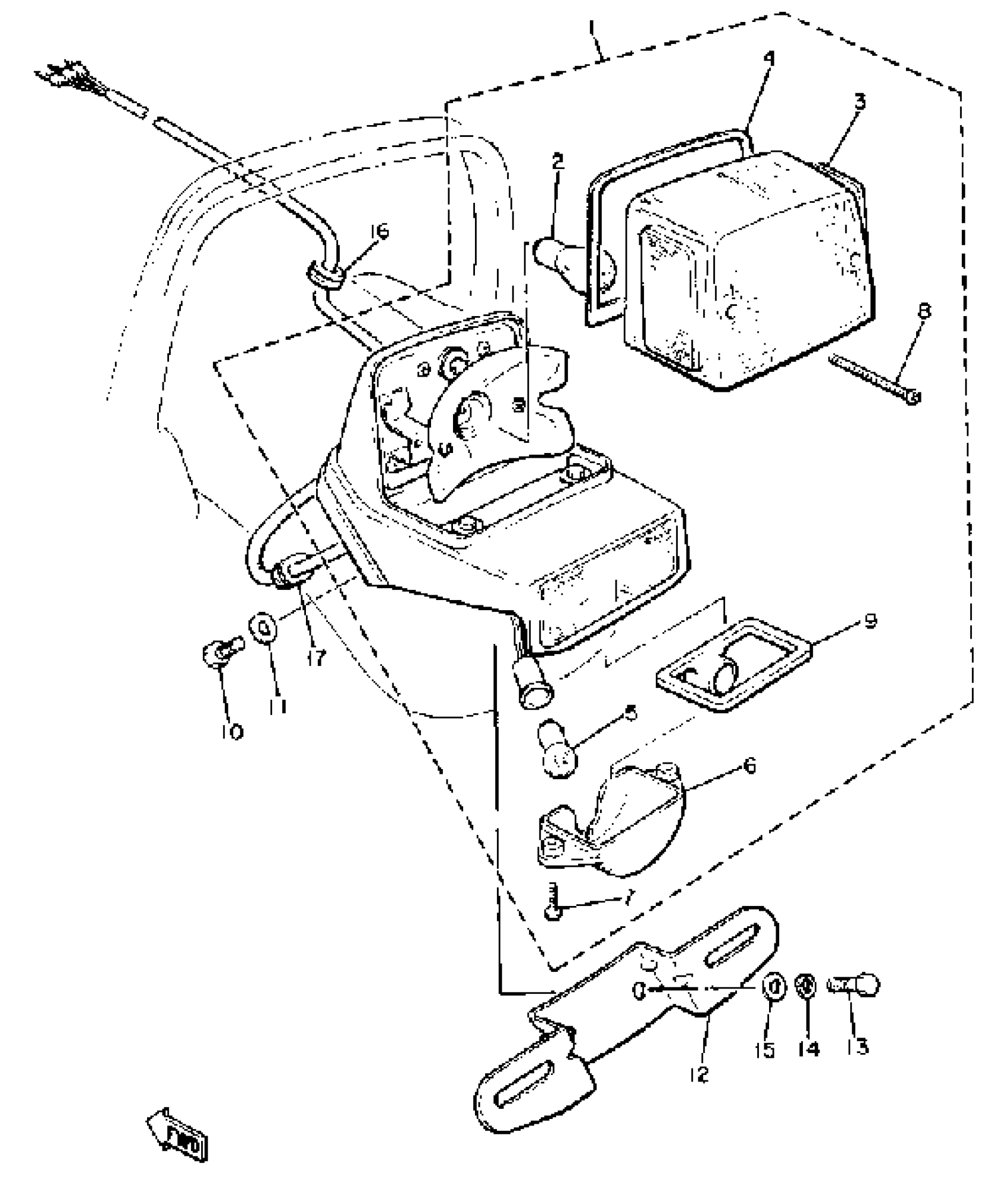

1981 Yamaha XJ650 (XJ650H) Tailllight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT ASSEMBLY

4H7-84700-60-93

1
Out of stock

2

1

$10.02

In stock

3

. LENS, TAILLIGHT

4H7-84721-60-00

1
Out of stock

4

SEAL

3TJ-14457-00-00

—
Out of stock

5

BULB (12V 38W)

4H7-84744-00-00

1
Out of stock

6

LENS, LICENSE LIGHT

4H7-84743-00-00

1
Out of stock

7

SCREW, PAN HEAD(GA5)

98580-04014-00

1

$2.78

In stock

8

SCREW, ADJUSTING

5BF-8433E-00-00

1

$6.11

In stock

9

. DAMPER

4H7-84753-60-00

1
Out of stock

10

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

11

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

12

BRACKET, LICENSE

4H7-84751-01-93

1
Out of stock

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

16

GROMMET(2UJ)

90480-16501-00

—

$5.37

In stock

17

GROMMET (438)

90480-15061-00

—

$6.68

In stock
