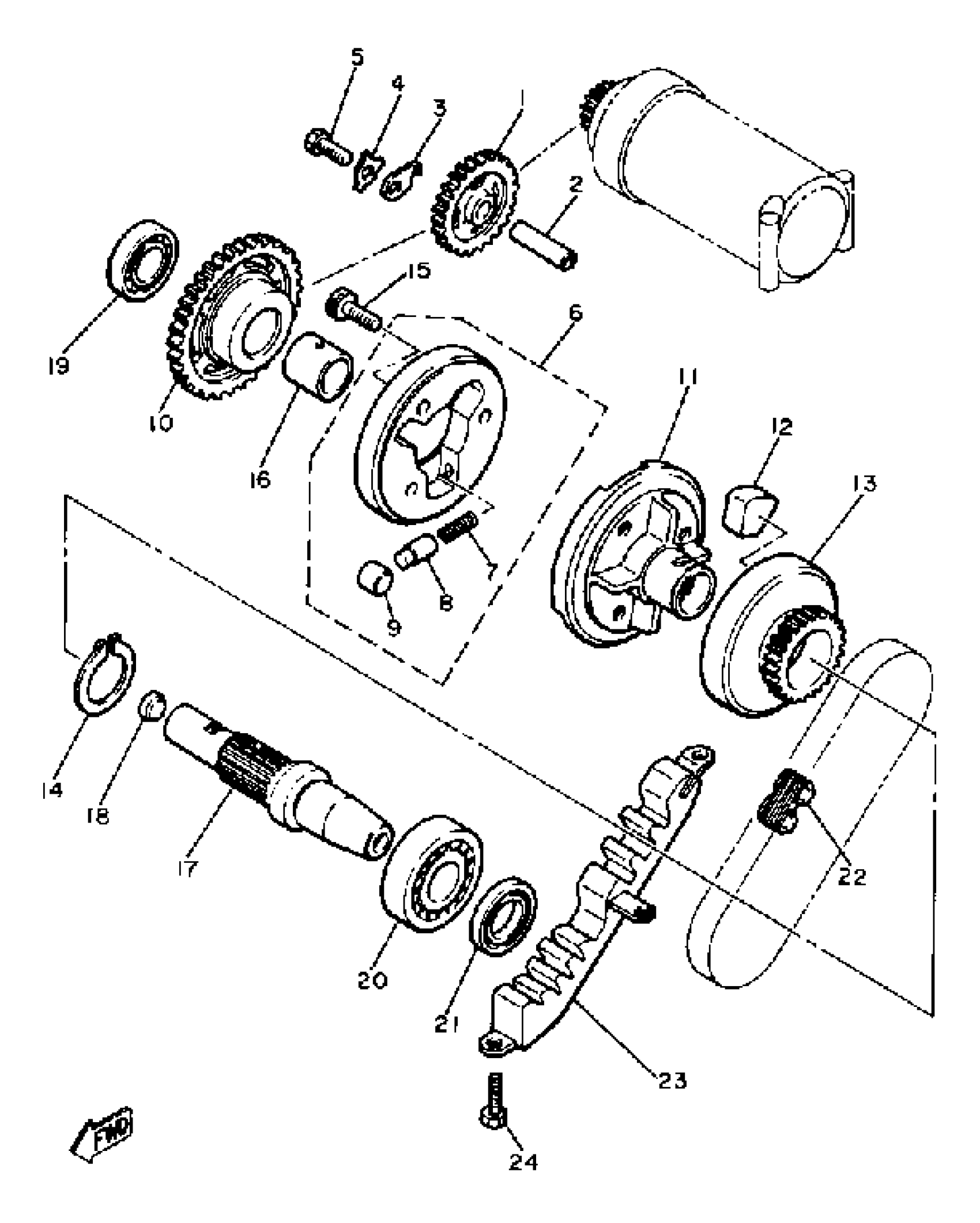

Yamaha XJ650H (XJ650) 1981 STARTING CLUTCH Diagram

#

Description
Price

1

GEAR, IDLER 1

4H7-15512-00-00

Unavailable

2

SHAFT 1

3TJ-15521-00-00

Unavailable

3

PLATE, STOPPER

2H7-15531-00-00

Unavailable

4

WASHER, LOCK (371)

90215-06040-00

$2.44

5

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

6

STARTER CLUTCH OUTER ASSY

4H7-15580-10-00

$187.99

7

SPRING, COMPRESSION (4H7)

90501-04596-00

$9.49

8

CAP, STARTER CLUTCH

1J7-15583-01-00

$18.49

9

PIN,DOWEL(341)

93615-12088-00

$7.49

10

GEAR, IDLER 2

4H7-15517-00-00

Unavailable

11

WHEEL, STARTER

4H7-15524-00-00

Unavailable

12

ABSORBER 1

4H7-16155-01-00

$5.49

13

SPROCKET, STARTER 2

4H7-15519-00-00

Unavailable

14

CIRCLIP

93410-32075-00

$9.49

15

BOLT, SOCKET

91317-08014-00

$8.49

16

COLLAR

90387-202A7-00

Unavailable

17

SHAFT 2

(4H7-15522-00-00)

Unavailable

18

PLUG (4H7)

90331-12028-00

Unavailable

19

BEARING (5Y1)

93306-00426-00

Unavailable

20

BEARING (3Y1)

93306-20541-00

Unavailable

21

OIL SEAL (4H7)

93102-25218-00

Unavailable

22

CHAIN, PRIMARY

4SV-11456-00-00

Unavailable

23

GUIDE, UPPER

4H7-11474-01-00

Unavailable

24

BOLT(8CP)

97017-06014-00

Unavailable
