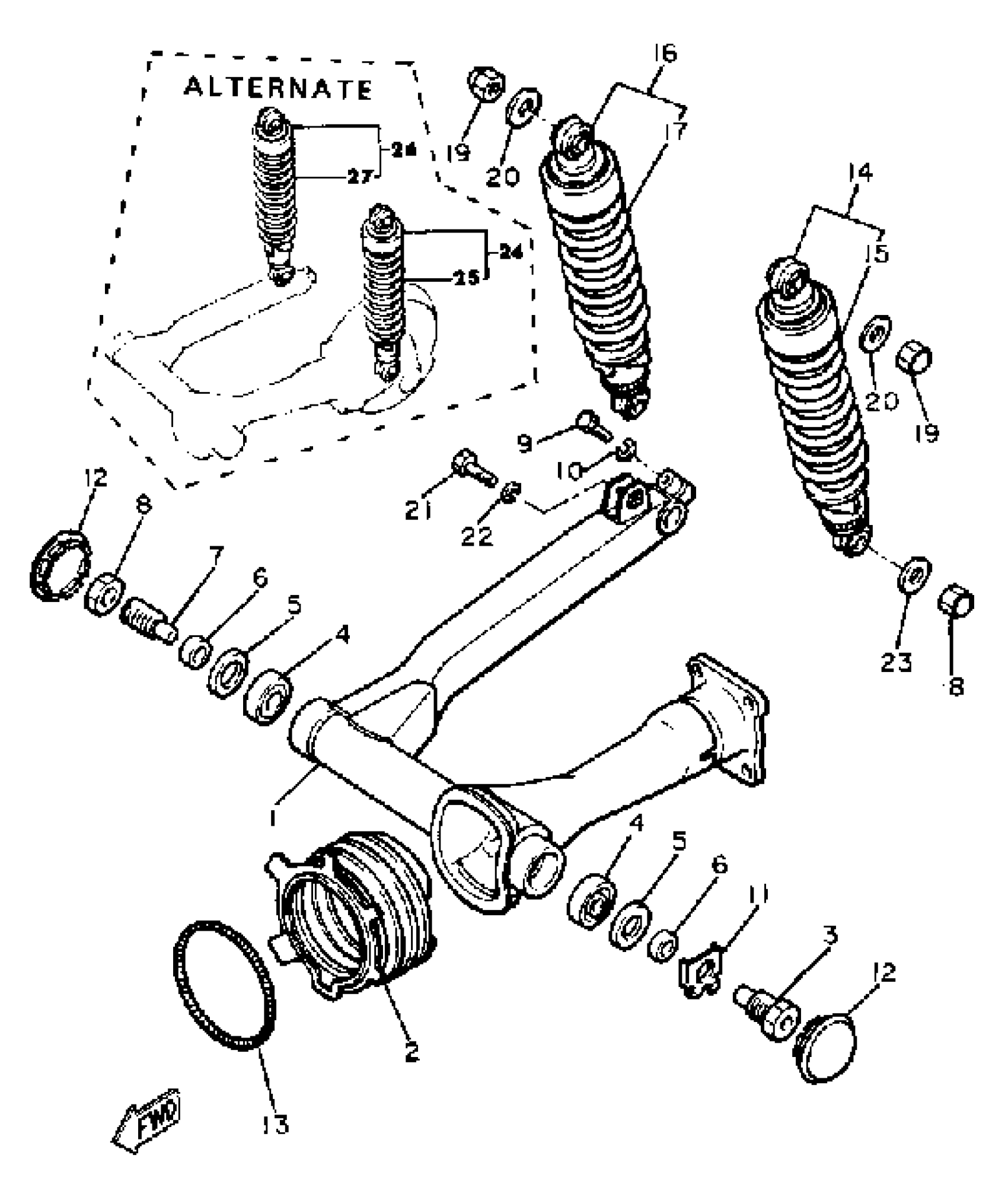

Yamaha XJ650H (XJ650) 1981 REAR ARM SUSPENSION Diagram

#

Description
Price

1

REAR ARM (4H7-22110-00-98)

16G-22110-00-98

Unavailable

2

BOOT, RUBBER

4H7-22189-00-00

Unavailable

3

SHAFT, PIVOT

4H7-22141-00-00

$36.99

4

BRG,CYL-CAL ROLLER 74G KY

93332-00010-00

$47.99

5

OIL SEAL (25X40X5-101)

93102-25017-00

$5.60

6

COLLAR

90387-17011-00

$15.99

7

SHAFT, PIVOT

15B-22141-00-00

Unavailable

8

NUT, PIVOT SHAFT

1J7-22143-00-00

$23.99

9

BOLT

97013-08035-00

$5.60

10

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

11

WASHER, LOCK(10H)

90215-22238-00

$11.49

12

COVER

2H7-2219X-00-00

$35.99

13

SPRING, TENSION (1J7)

90506-07136-00

$12.49

14

SHK/ABS ASSEMBLY, REAR

5N8-22210-00-00

Unavailable

15

. SPRING

4H7-22212-00-00

Unavailable

16

SHK/ABS ASSEMBLY, REAR

5N8-22210-10-00

Unavailable

17

. SPRING

4H7-22212-00-00

Unavailable

18

NUT, CROWN(3BM)

90176-10073-00

Unavailable

19

NUT, CROWN(3BM)

90176-10073-00

Unavailable

20

WASHER PLATE 341222430000

90201-10142-00

Unavailable

21

BOLT,DOME HEAD

90106-10052-00

Unavailable

22

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

23

WASHER, PLATE(3BM)

90201-105R9-00

Unavailable

24

SHK/ABS ASSEMBLY, REAR

(4H7-22210-A0-00)

Unavailable

25

. SPRING

4H7-22212-A0-00

Unavailable

26

SHK/ABS ASSEMBLY, REAR

4H7-22210-E0-00

Unavailable

27

. SPRING

4H7-22212-A0-00

Unavailable
