1981 Yamaha XJ650 (XJ650H) Intake Diagram

← All diagrams

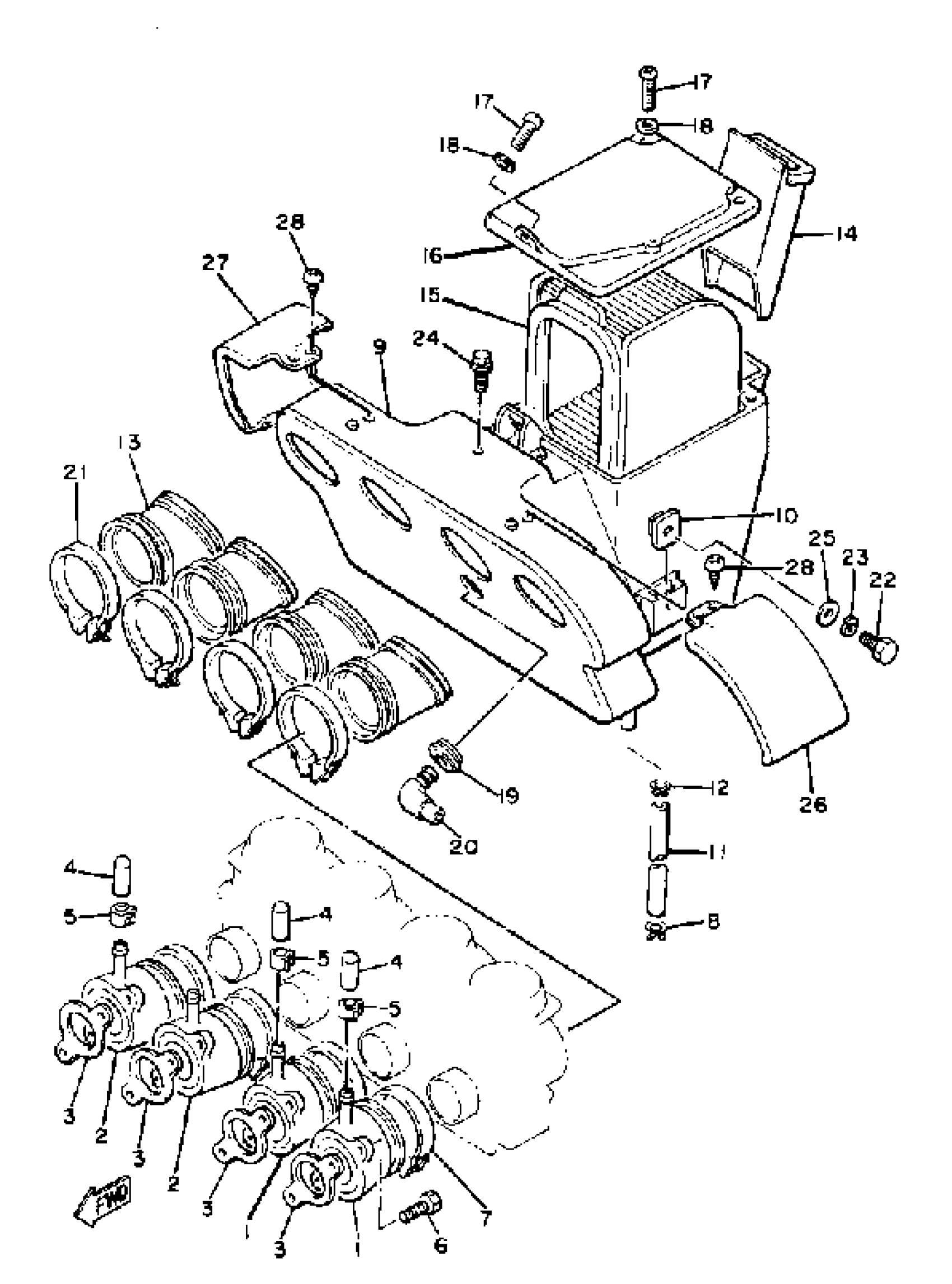

Find the part on the Intake diagram for your 1981 Yamaha XJ650 (XJ650H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XJ650 (XJ650H) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

4H7-13586-02-00

1

$120.68

In stock

2

J0INT, CARBURET0R 2

5G2-13596-01-00

1

$129.17

In stock

3

GASKET, MANIFOLD

4H7-13556-11-00

1

$5.93

In stock

4

PLUG, BLIND

16G-13569-00-00

1
Out of stock

5

CLIP (3G0)

90467-10039-00

1
Out of stock

6

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

7

CLAMP, H0SE (29R)

90460-49248-00

1

$20.77

In stock

8

CLIP

90467-090A2-00

1

$2.51

In stock

9

AIR CLNR CASE ASSEMBLY

4H7-14401-00-00

1
Out of stock

10

PLATE, CLNR CS FTNG

4H7-14484-00-00

1
Out of stock

11

TUBE, FLEXIBLE(3NV)

91A21-07020-00

1

$8.95

In stock

12

CLIP

90467-090A2-00

1

$2.51

In stock

13

JOINT, AIR CLEANER 1

4H7-14453-00-00

1

$39.59

In stock

14

DUCT

4H7-14437-00-00

1
Out of stock

15

ELEMENT, AIR CLEANER

4H7-14451-00-00

1

$46.43

In stock

16

CAP, CLEANER CASE 1

4H7-14412-00-00

1
Out of stock

17

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

18

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

19

GROMMET (4H7)

90480-16278-00

—

$2.62

In stock

20

PIPE

4H7-14419-00-00

1
Out of stock

21

HOSE CLAMP ASSY

90450-56001-00

—

$14.77

In stock

22

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

BOLT, WITH WASHER (4L6)

90119-06029-00

—

$5.38

In stock

25

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

26

COVER, CLNR CASE 1

4H7-1441A-00-00

1
Out of stock

27

COVER, CLNR CASE 2

4H7-1441E-00-00

1
Out of stock

28

SCREW, TAPPING(6U1)

97780-50610-00

—
Out of stock
