1981 Yamaha XJ650 (XJ650H) Handlebar Cable Diagram

← All diagrams

Find the part on the Handlebar Cable diagram for your 1981 Yamaha XJ650 (XJ650H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

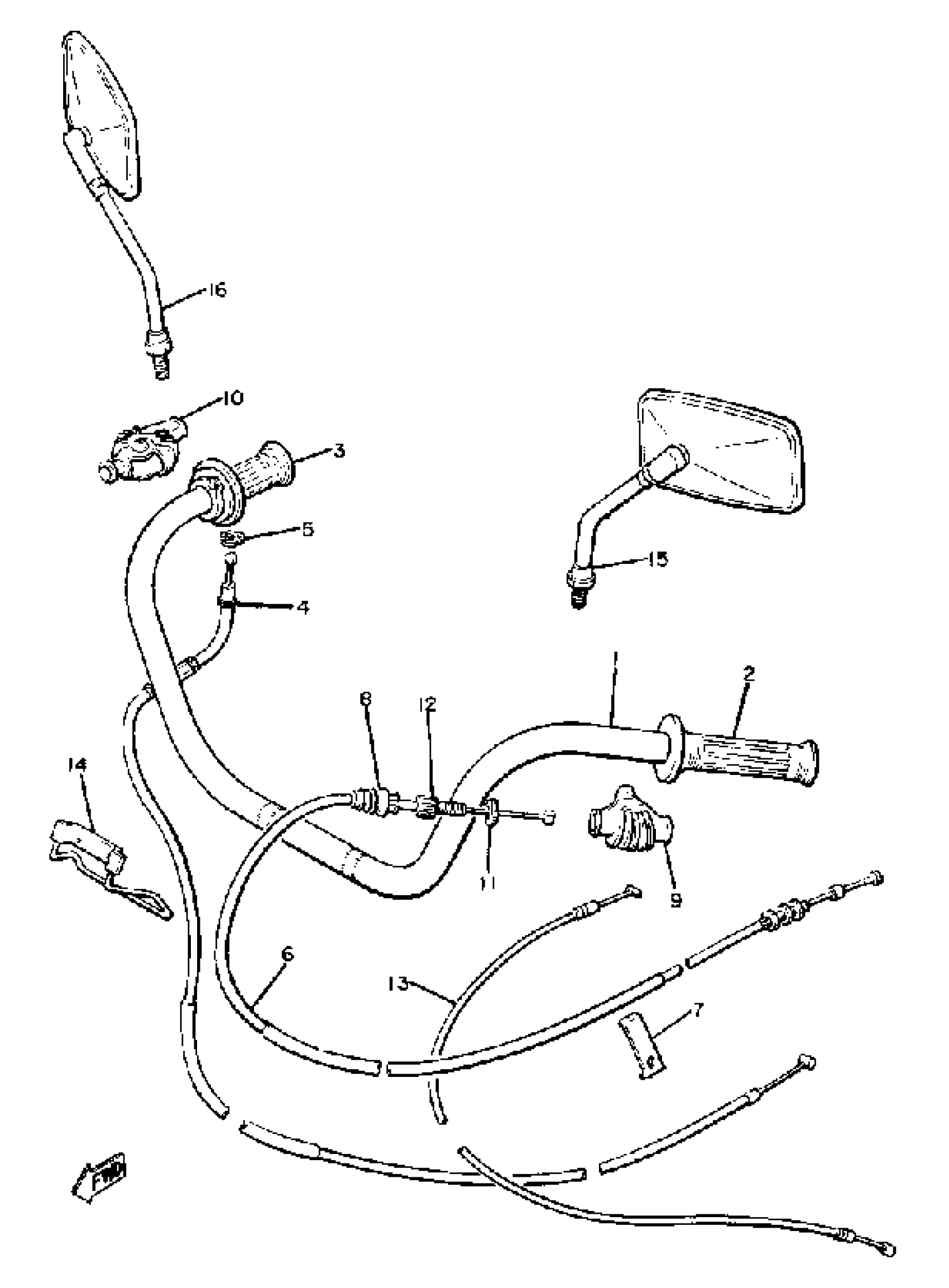

1981 Yamaha XJ650 (XJ650H) Handlebar Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

4H7-26111-10-00

1
Out of stock

2

GRIP LH

2H7-26241-01-00

1
Out of stock

3

GRIP ASSY

2H7-26240-01-00

1
Out of stock

4

CABLE, THROTTLE

5L8-26311-00-00

1
Out of stock

5

HOLDER,

584-26393-02-00

—

$6.02

In stock

6

CABLE, CLUTCH

15R-26335-00-00

—
Out of stock

7

HOLDER

(4H7-26393-00-00)

1
Out of stock

8

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

9

COVER, LEVER

1E6-26372-00-00

1

$19.91

In stock

10

COVER, HANDLE LEVER (R.H)

1T5-26372-00-00

1

$17.86

In stock

11

NUT

90179-08030-00

1

$3.78

In stock

12

BOLT

90123-08002-00

1

$8.93

In stock

13

CABLE, STARTER 1

5L8-26331-00-00

1
Out of stock

14

GUIDE, CABLE

(1J7-26399-00-00)

1
Out of stock

15

REAR VIEW MIRROR ASSY(LEFT)

4H7-26290-20-00

1
Out of stock

16

REAR VIEW MIRROR ASSY (RIGHT)

4H7-26290-50-00

—
Out of stock
