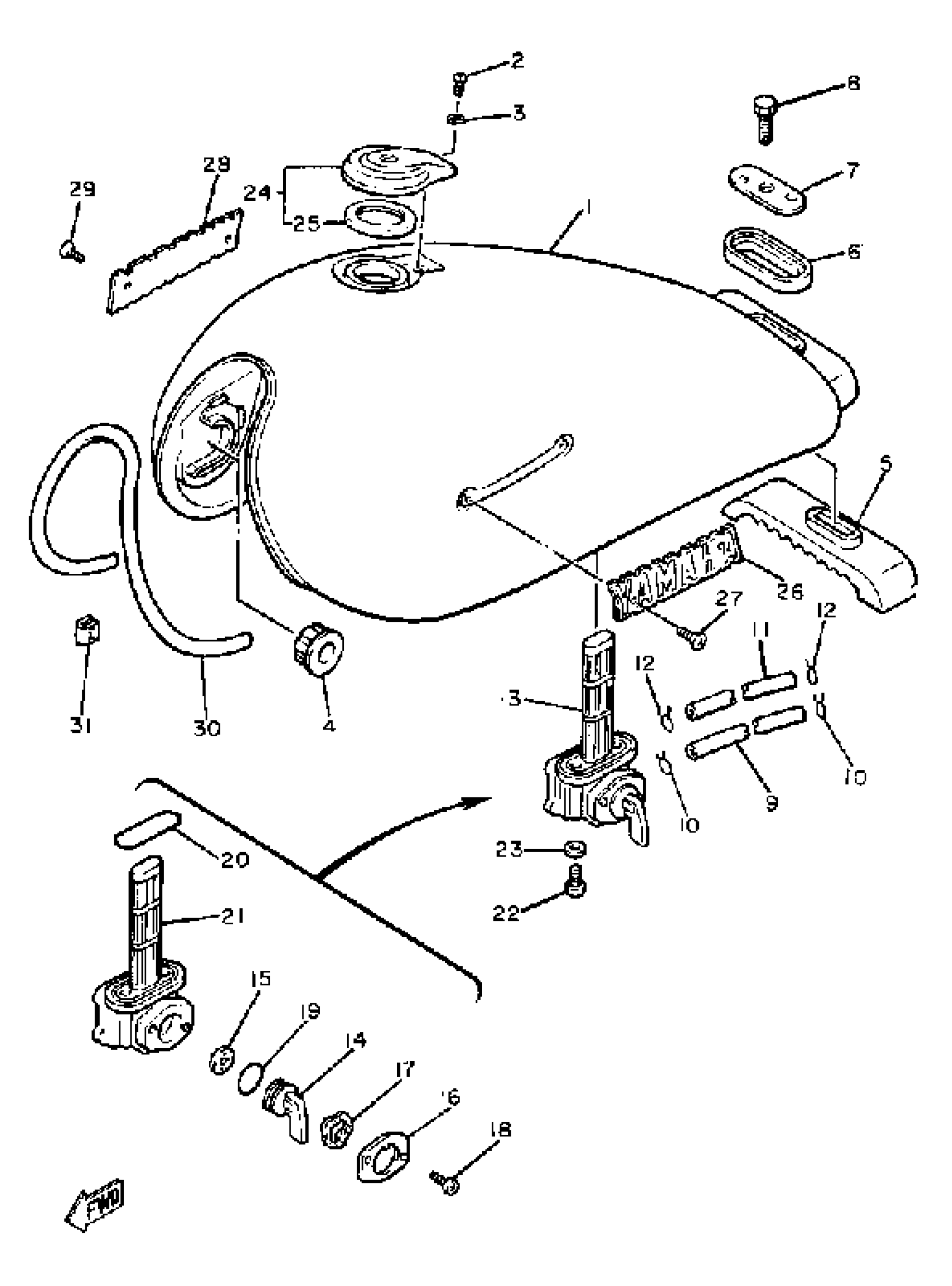

Yamaha XJ650H (XJ650) 1981 FUEL TANK Diagram

FUEL TANK

4H7-YK241-00-6G

Unavailable

FUEL TANK

4H7-24110-00-9G

Unavailable

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

DAMPER, LOCATING

4H7-24181-00-00

$6.99

DAMPER, LOCATING 2

4H7-24182-01-00

Unavailable

DAMPER, LOCATING 3

4H7-24183-00-00

Unavailable

WASHER, SPECIAL

4H7-24186-00-00

Unavailable

BOLT(62E)

97013-08012-00

Unavailable

HOSE (L400)

90445-116K9-00

$24.99

CLIP

90467-100A1-00

$7.49

HOSE (L770)

90445-090G9-00

$33.99

CLIP 101235600

90467-08003-00

$10.49

FUEL COCK ASSY 1

3AL-24500-00-00

$140.99

. LEVER, COCK

4H7-24524-00-00

Unavailable

VALVE, FUEL COCK

3H3-24523-00-00

Unavailable

. PLATE, LVR FITTING

4H7-24525-00-00

Unavailable

WASHER, WAVE

10L-24518-00-00

Unavailable

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

O-RING, FUEL COCK

3H3-24534-00-00

Unavailable

O-RING

2W6-24512-00-00

Unavailable

NET, FILTER 1

3Y1-24514-00-00

Unavailable

SCREW 256241430000

90149-06011-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

CAP ASSY

4X7-24602-10-00

Unavailable

. GASKET, CAP

4H7-24612-00-00

Unavailable

EMBLEM 1

4H7-24161-00-00

Unavailable

SCREW (2F0)

90152-04006-00

Unavailable

EMBLEM 2

4H7-24162-00-00

Unavailable

SCREW (2F0)

90152-04006-00

Unavailable

PLATE, MOLD

4H7-24189-00-00

Unavailable

CLIP

90468-03063-00

Unavailable
