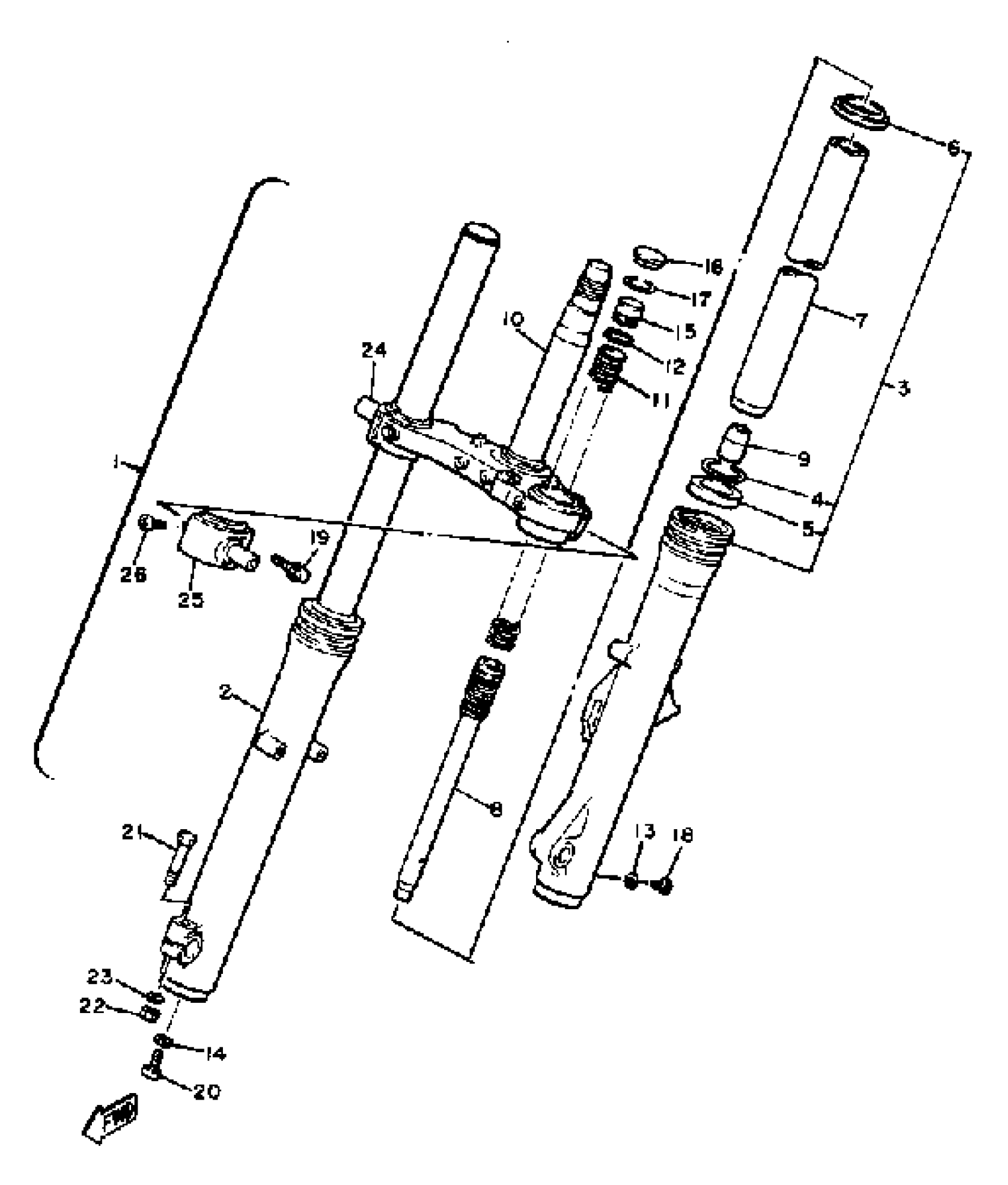

Yamaha XJ650H (XJ650) 1981 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

4H7-23101-00-00

Unavailable

2

. TUBE, OUTER 2

22U-23136-01-38

Unavailable

3

. TUBE, OUTER 1

4H7-23126-00-00

Unavailable

4

RING, SNAP

4A1-23156-00-00

$5.49

5

OIL SEAL

4ES-23145-00-00

$22.99

6

SEAL, DUST

33M-23144-00-00

$28.99

7

. INNER TUBE 1

4H7-23110-00-00

Unavailable

8

. CYLINDER, FRTFRKFRONT FORK

4H7-23170-00-00

Unavailable

9

TAPER SPINDLE

1W1-23173-L0-00

$31.99

10

. UNDER BRACKET

5N8-23340-00-33

Unavailable

11

SPRING, FRONT FORK

(4H7-23141-00-00)

Unavailable

11

SPRING, FRONT FORK

(4H7-23141-A0-00)

Unavailable

12

O-RING

3J2-23114-00-00

$8.99

13

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

14

GASKET

509-23158-L0-00

$16.49

15

. BOLT, CAP

3Y1-23111-00-00

Unavailable

16

. CAP, FRONT FORK

3Y1-23168-00-00

Unavailable

17

RING, SNAP

3J2-23183-00-00

Unavailable

18

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

19

BOLT, AXLE HOLDER

18G-23128-00-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

21

BOLT

97013-08045-00

Unavailable

22

NUT(6L2)

95333-08600-00

Unavailable

23

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

24

. COVER, OUTER 2

4H7-23132-00-00

Unavailable

25

. COVER, OUTER 1

4H7-23122-00-00

Unavailable

26

. BOLT, HEX SCKT HEAD

4H7-23181-00-00

Unavailable
