1981 Yamaha XJ650 (XJ650H) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1981 Yamaha XJ650 (XJ650H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

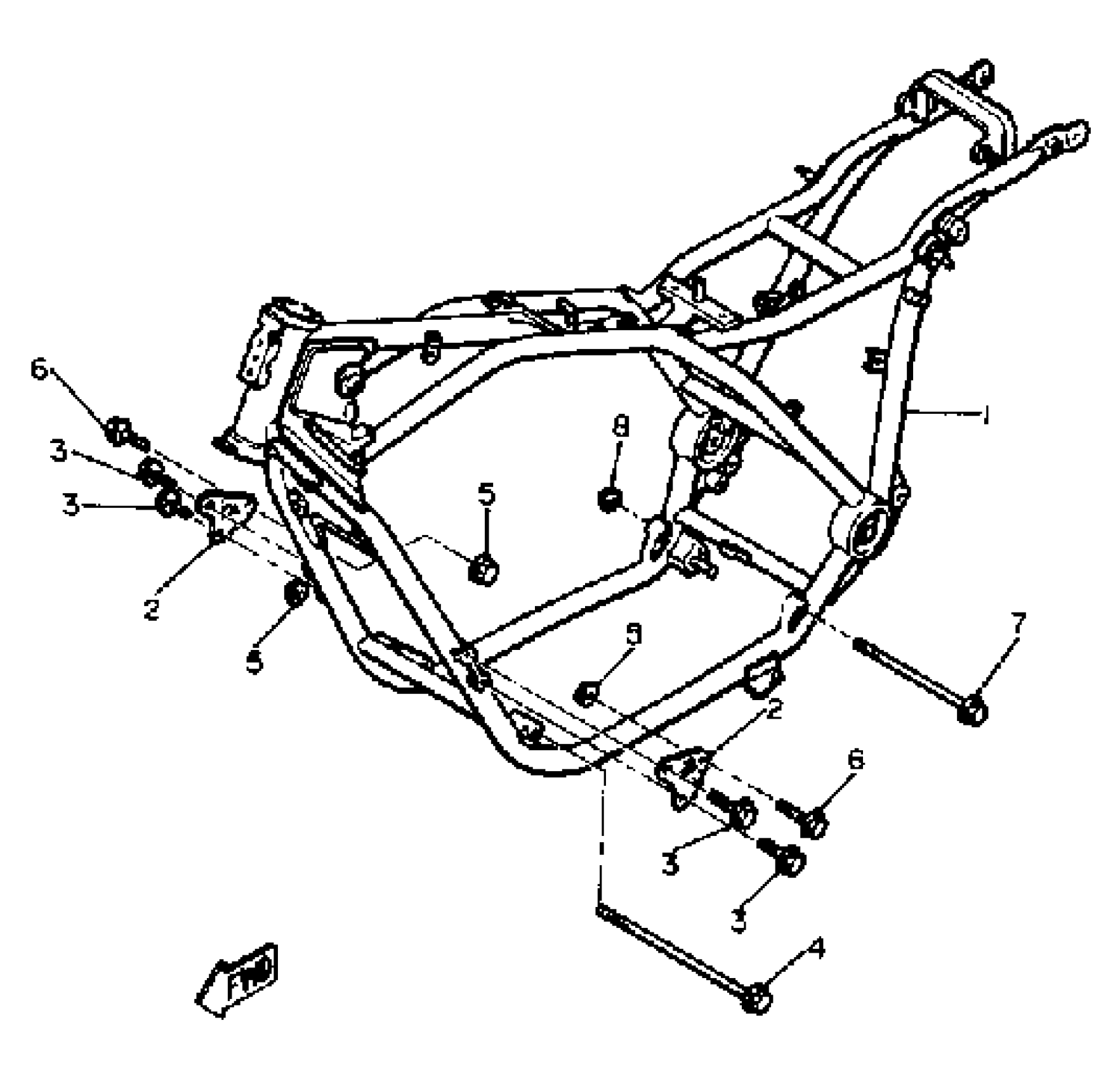

1981 Yamaha XJ650 (XJ650H) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. UNAVAILABLE IN PRICE BOOK

4H7-21110-01-33

1
Out of stock

1

STAY, HORN

(4H7-2134Y-00-00)

1
Out of stock

1

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

1

BOLT, HEXAGON

97017-08016-00

1
Out of stock

1

FRAME COMP

(99999-01225-00)

1
Out of stock

2

STAY, ENGINE 2

4H7-21315-00-00

1
Out of stock

3

BOLT WASHER BASED (1J7)

90105-08066-00

—

$6.82

In stock

4

BOLT, WASHER BASED

90105-10476-00

1
Out of stock

5

NUT(4KG)

90179-10658-00

1

$7.49

In stock

6

BOLT, WASHER BASED(59V)

90105-10392-00

1

$8.40

In stock

7

BOLT, WASHER BASED

90105-12157-00

1
Out of stock

8

NUT(3EF)

90179-12657-00

1

$5.32

In stock
← Tachometer Gear Front Fender Rear Fender →
