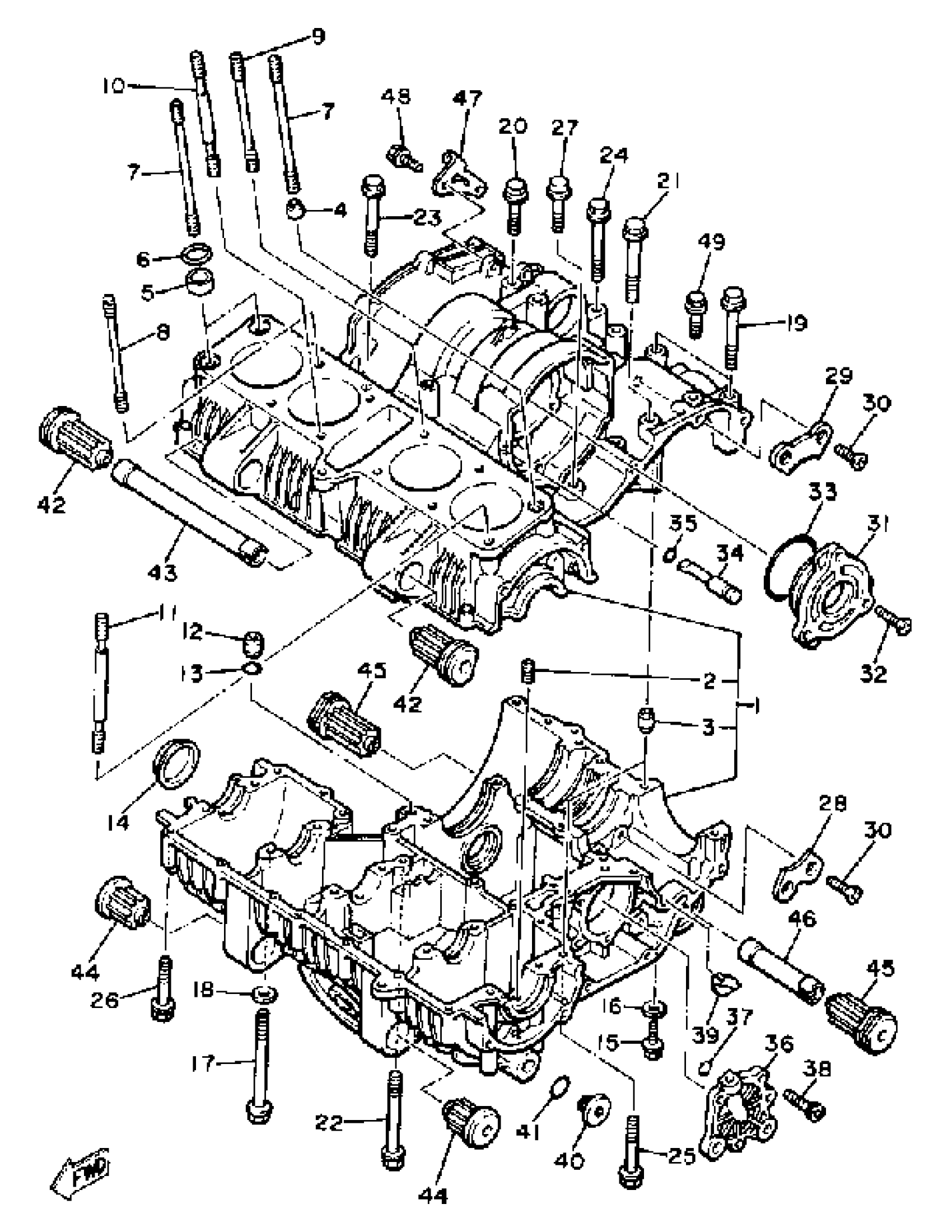

Yamaha XJ650H (XJ650) 1981 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

(99999-01239-00)

Unavailable

2

NOZZLE

4KM-13572-01-00

$6.99

3

PIN, DOWEL

99530-12016-00

$4.89

4

PIN, DOWEL

99530-14016-00

$3.80

5

COLLAR (1L9)

90387-16547-00

$9.49

6

O-RING (1L9)

93210-18322-00

$5.60

7

BOLT, CYLINDER HOLDING 4

4H7-11364-00-00

Unavailable

8

BOLT, CYLINDER HOLDING 3

4H7-11363-00-00

Unavailable

9

BOLT, STUD (4H7)

90116-10329-00

$15.99

10

BOLT, CYLINDER HOLDING 3

4H7-11363-00-00

Unavailable

11

BOLT, CYLINDER HOLDING 4

4H7-11364-00-00

Unavailable

12

PIN, DOWEL

99530-12016-00

$4.89

13

O-RING (371)

93210-11124-00

$7.49

14

PLUG (4H7)

4H7-15167-10-00

$19.99

15

BOLT, WASHER BASED(4JT)

90105-08729-00

$4.77

16

WASHER, PLATE 3411117500

90201-08087-00

Unavailable

17

BOLT, FLANGE(4BD)

95817-08105-00

Unavailable

18

WASHER, PLATE (33N)

90201-094G1-00

Unavailable

19

BOLT, FLANGE

95814-08065-00

Unavailable

20

BOLT, FLANGE

95817-06135-00

Unavailable

21

BOLT, FLANGE

95817-06120-00

Unavailable

22

BOLT, FLANGE

95817-06080-00

Unavailable

23

BOLT, FLANGE

95817-06070-00

Unavailable

24

BOLT, FLANGE

95817-06060-00

Unavailable

25

BOLT, FLANGE

95817-06055-00

Unavailable

26

BOLT, FLANGE

95817-06045-00

Unavailable

27

BOLT, FLANGE

95817-06035-00

Unavailable

28

PLATE, BRNG COVER

(31A-15381-00-00)

Unavailable

29

PLATE, BEARING COVER 2

31A-15383-00-00

Unavailable

30

SCREW

90149-08013-00

Unavailable

31

HOUSING, BEARING 1

4H7-15163-01-00

Unavailable

32

SCREW, FLAT

98707-06014-00

Unavailable

33

O-RING

93210-62439-00

Unavailable

34

NOZZLE

4H7-13454-00-00

Unavailable

35

O-RING (11M)

93210-07540-00

Unavailable

36

HOUSING, BEARING 2

(5G2-15164-00-00)

Unavailable

37

O-RING

93210-07438-00

Unavailable

38

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

39

GROMMET

4H7-15365-00-00

Unavailable

40

PLUG

4H7-15189-00-00

Unavailable

41

O-RING

93210-21001-00

Unavailable

42

DAMPER, ENGINE MOUNT 3

36Y-15336-02-00

Unavailable

43

SPACER, ENG MOUNT (4W5-15317-00)

4H7-15317-00-00

Unavailable

44

DAMPER, ENG MOUNT 1

4H7-15316-00-00

Unavailable

45

DAMPER, ENGINE MOUNT 2 (2H7-15326-01-00)

36Y-15326-00-00

Unavailable

46

SPACER, ENG MOUNT (4W5-15327-00)

4H7-15327-00-00

Unavailable

47

HOLDER, CLUTCH CABLE

4H7-15441-01-00

Unavailable

48

BOLT,SOCKET HEAD

91314-06012-00

Unavailable

49

BOLT, FLANGE

95817-06060-00

Unavailable
