1981 Yamaha XJ650 (XJ650H) Carburetor Diagram

← All diagrams

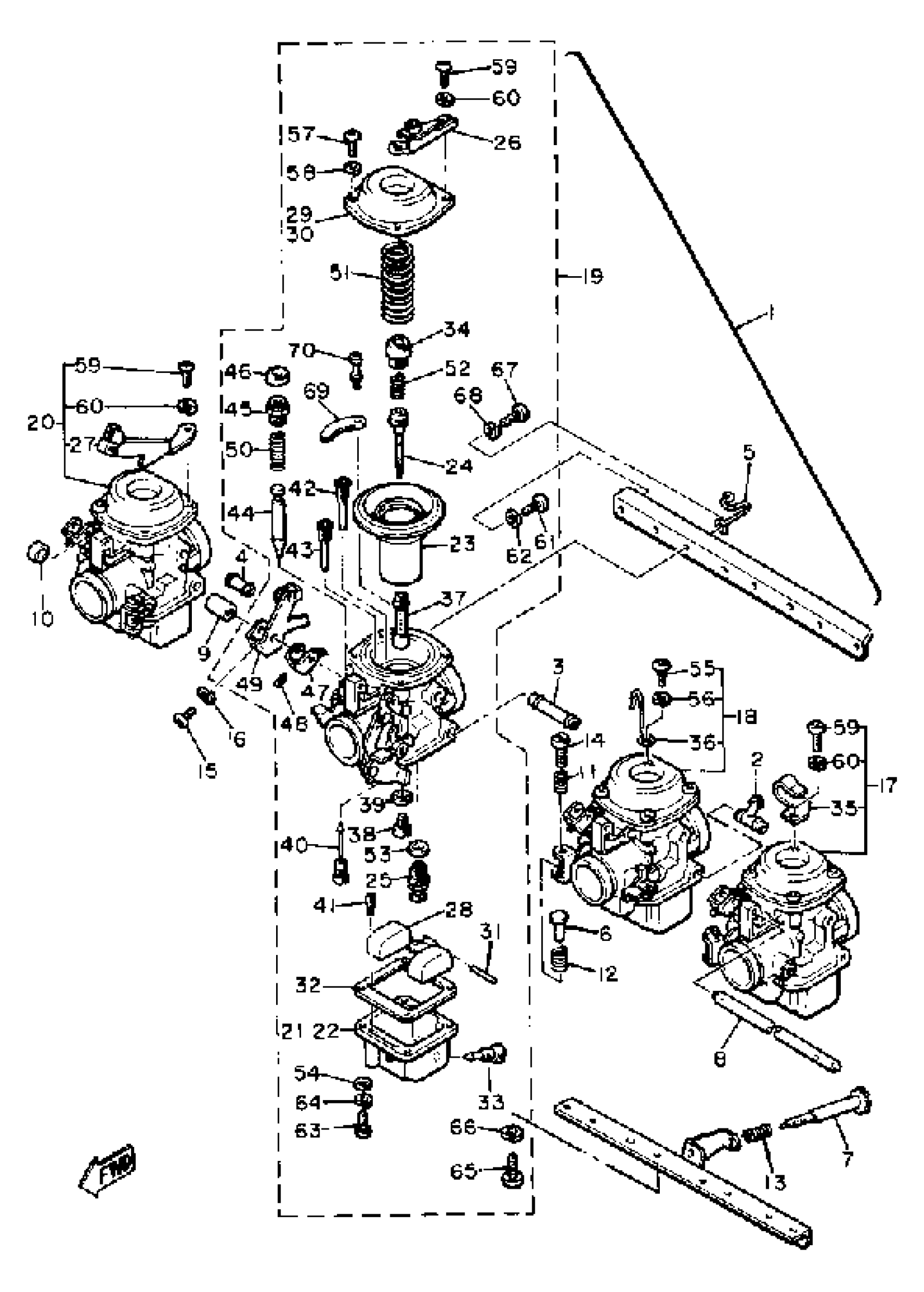

Find the part on the Carburetor diagram for your 1981 Yamaha XJ650 (XJ650H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XJ650 (XJ650H) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

(4H7-14900-00-00)

1
Out of stock

2

PIPE, STARTER CON

(4H7-14988-00-00)

1
Out of stock

3

CONNECTOR

(4H7-14188-01-00)

1
Out of stock

4

. CONNECTOR

4H7-14189-01-00

1
Out of stock

5

. CLIP

4H7-14919-00-00

1
Out of stock

6

ROD

(4H7-14992-00-00)

1
Out of stock

7

SCREW, THROTTLE

(3J3-14122-00-00)

1
Out of stock

8

SHAFT, STARTER LVR

(5G2-14978-00-00)

1
Out of stock

9

BUSH

(4H7-14998-00-00)

1
Out of stock

10

. WASHER

4H7-14973-00-00

1
Out of stock

11

SPRING, THRTL STOP

(4H7-14133-00-00)

1
Out of stock

12

SPRING, THRTL STOP

(4H7-14934-00-00)

1
Out of stock

13

.. SPRING, THRTL STOP

3J3-14934-00-00

1
Out of stock

14

SCREW, THROTTLE

(4H7-14922-00-00)

1
Out of stock

15

SCREW, PAN HEAD

98507-03016-00

—
Out of stock

16

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

17

CARBURETOR ASSEMBLY 1

(4H7-14901-00-00)

1
Out of stock

18

CARBURETOR ASSEMBLY 2

(4H7-14902-00-00)

1
Out of stock

19

CARBURETOR ASSEMBLY 3

(4H7-14903-00-00)

1
Out of stock

20

CARBURETOR ASSEMBLY 4

(4H7-14904-00-00)

1
Out of stock

21

BODY, FLOAT CHAMBER

(4H7-14981-01-00)

1
Out of stock

22

.. HOLDER

4H7-14982-01-00

1
Out of stock

23

.. DIAPHRAGM ASSEMBLY

4H7-14940-00-00

1
Out of stock

24

.. JET, NEEDLE

4H7-14917-10-00

1
Out of stock

25

.. NEEDLE VALVE ASSY

10L-14390-02-00

1
Out of stock

26

BRACKET, THROTTLE 1

(4H7-14926-00-00)

1
Out of stock

27

BRACKET

(4H7-14995-00-00)

1
Out of stock

28

.. FLOAT

4H7-14985-00-00

1
Out of stock

29

.. COVER, DIAPHRAGM

4H7-14958-00-00

1
Out of stock

30

.. COVER, DIAPHRAGM

4H8-14958-00-00

1
Out of stock

31

.. PIN, FLOAT

4H7-14186-00-00

1
Out of stock

32

.. GASKET, FLOAT CHMBR (4H7-14984-00)

4H7-14984-01-00

1
Out of stock

33

.. PLUG, DRAIN

4X7-14191-01-00

1
Out of stock

34

SEAT, SPRING

(4H7-14936-00-00)

1
Out of stock

35

CLIP

(4H7-14159-00-00)

1
Out of stock

36

.. CLIP, PIPE (4H7-14139-00)

4H7-14139-01-00

1
Out of stock

37

.. NOZZLE, MAIN

4H7-14921-32-00

1
Out of stock

38

.. JET, MAIN #110

4H7-14925-10-00

1
Out of stock

39

.. WASHER, MAIN JET

4H7-14945-00-00

1
Out of stock

40

.. JET (#40)

4H7-14948-40-00

1
Out of stock

41

.. JET, STARTER

4H7-14961-40-00

1
Out of stock

42

.. JET, MAIN AIR

4H7-14928-10-00

1
Out of stock

43

.. JET, PILOT AIR

4H7-14949-39-00

1
Out of stock

44

.. PLUNGER, STARTER

4H7-14171-00-00

1
Out of stock

45

.. CAP, PLUNGER

4H7-14174-00-00

1
Out of stock

46

.. COVER, PLUNGER CAP

4H7-14173-00-00

1
Out of stock

47

LEVER, STARTER 1

(4H7-14975-00-00)

1
Out of stock

48

.. SCREW

4H7-14991-00-00

1
Out of stock

49

LEVER, STARTER 2

(4H7-14976-00-00)

1
Out of stock

50

. SPRING, PLUNGER

4H7-14135-00-00

1
Out of stock

51

. SPRING, DIAPHRAGM

4H7-14933-00-00

1
Out of stock

52

.. SPRING

4H7-14589-01-00

1
Out of stock

53

.. WASHER

4H7-14952-00-00

1
Out of stock

54

WASHER

(4H7-14955-00-00)

1
Out of stock

55

SCREW, PAN HEAD (E56)

98580-04010-00

—

$6.17

In stock

56

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

57

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

58

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

59

SCREW, PAN HEAD (E56)

98580-04010-00

—

$6.17

In stock

60

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

61

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

62

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

63

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

64

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

65

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

66

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

67

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock

68

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

69

.. PLATE

4H7-14527-00-00

1
Out of stock

70

.. SCREW, PAN HEAD

4H7-14325-00-00

1
Out of stock
