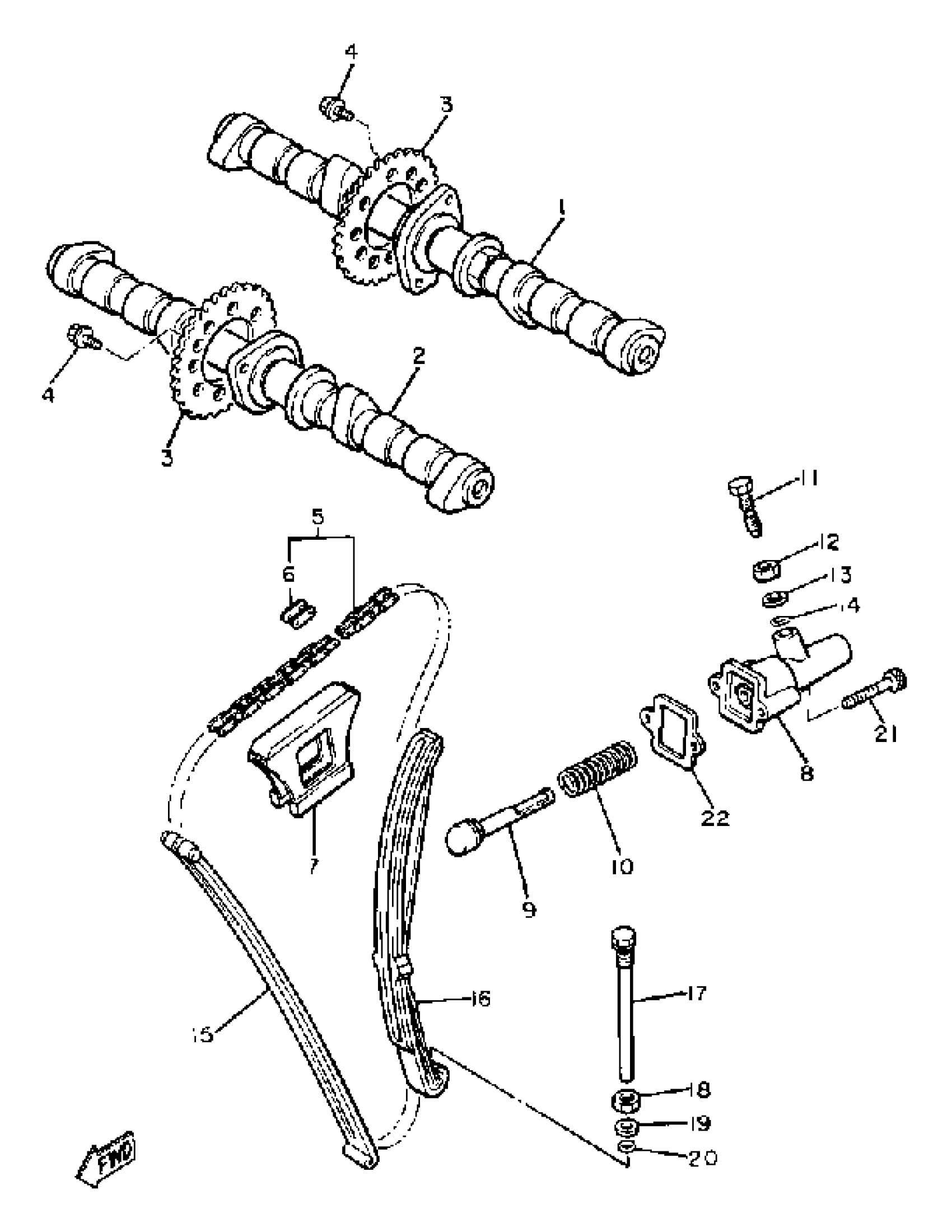

Yamaha XJ650H (XJ650) 1981 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

4H7-12171-00-00

Unavailable

2

CAMSHAFT 2

4H7-12181-00-00

Unavailable

3

SPROCKET, CAM CHAIN

4H7-12176-01-00

Unavailable

4

BOLT, FLANGE

90105-07004-00

$5.60

5

CHAIN (BF05M-120L)

94500-02120-00

Unavailable

6

JOINT, CHAIN (583)

94600-02001-00

$7.99

7

GUIDE, STOPPER 2

4H7-12241-00-00

Unavailable

8

CASE, CHAIN TENSNR

4K0-12212-00-00

Unavailable

9

ROD, CHN TENSIONER

4H7-12217-01-00

Unavailable

10

SPRING, COMPRESSION

90501-16417-00

Unavailable

11

BOLT

90109-08442-00

Unavailable

12

. NUT

95380-08700-00

Unavailable

13

WASHER, PLAIN (646)

92990-06600-00

$2.80

14

O-RING (26H)

93210-06632-00

$8.49

15

DAMPER, CHAIN 1

4H7-12251-00-00

Unavailable

16

DAMPER, CHAIN 2

4H7-12252-00-00

Unavailable

17

BOLT

90109-10570-00

Unavailable

18

NUT (682)

95380-10700-00

Unavailable

19

.. WASHER, PLATE

92990-08600-00

Unavailable

20

O-RING

93210-08003-00

Unavailable

21

BOLT, SOCKET

91314-06040-00

Unavailable

22

GASKET, TENSIONER CASE

3YX-12213-00-00

Unavailable
