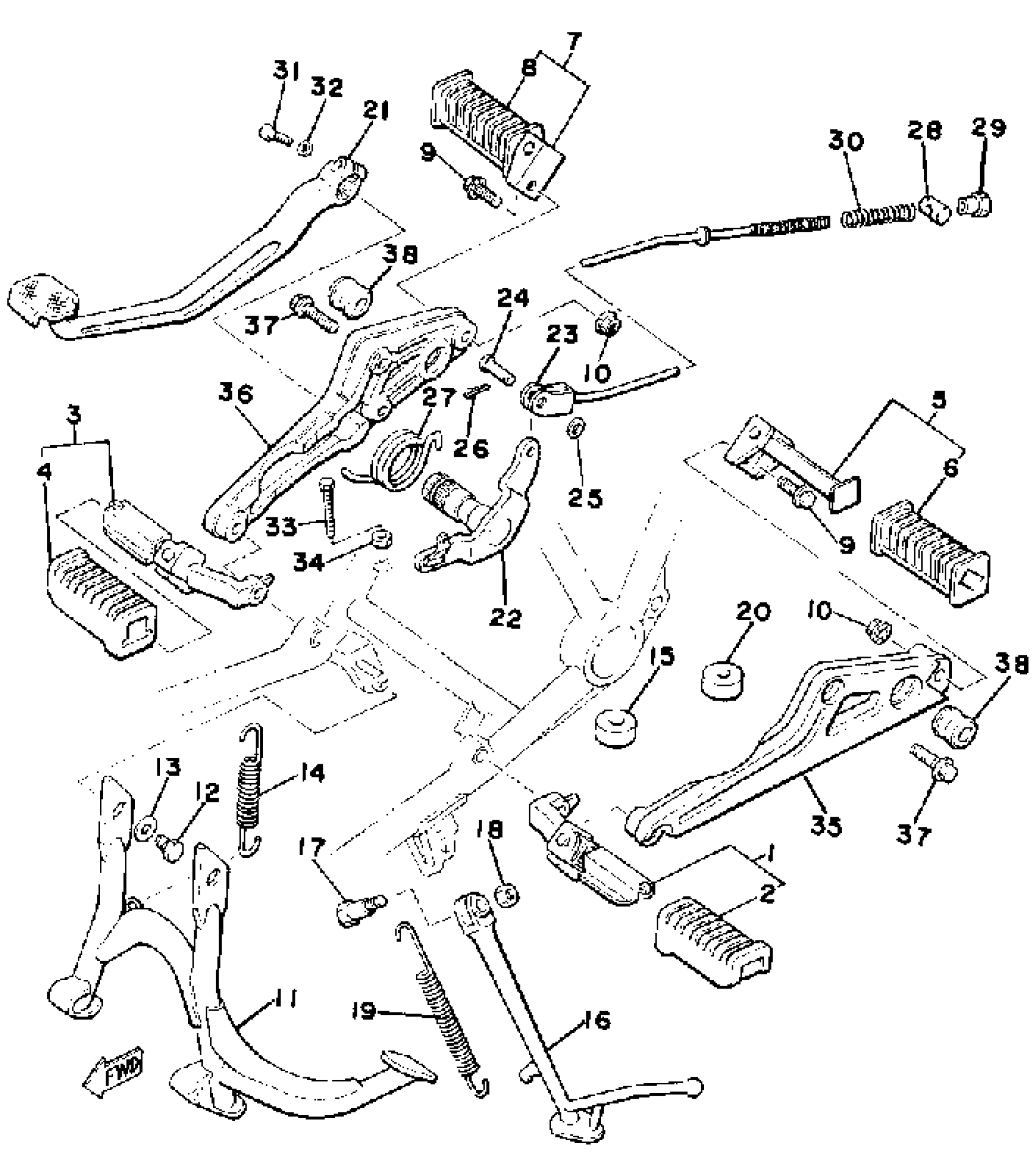

Yamaha XJ650G (XJ650) 1980 STAND FOOTREST Diagram

FRT FOOTREST ASSEMBLY L

4W5-27410-00-00

Unavailable

COVER, FOOTREST

4L0-27423-00-00

$49.99

FRT FOOTREST ASY R

4W5-27420-00-00

Unavailable

COVER, FOOTREST

4L0-27423-00-00

$49.99

RR FOOTREST ASSEMBLY 1

4H7-27430-00-00

Unavailable

. COVER, RR FOOTREST

1J7-27433-00-00

Unavailable

RR FOOTREST ASSEMBLY 2

4H7-27440-00-00

Unavailable

. COVER, RR FOOTREST

1J7-27444-00-00

Unavailable

BOLT, FLANGE

95817-10035-00

$9.49

NUT(4KG)

90179-10658-00

$9.49

STAND, MAIN

4H7-27111-00-R4

Unavailable

BOLT,HEXAGON

97017-10016-00

Unavailable

WASHER, PLATE (3J6)

90201-100A1-00

$8.49

SPRING, TENSION (1T5)

90506-35149-00

$17.99

STOPPER, MAIN STAND

1A0-27114-00-00

$17.49

STAND, SIDE

(4H7-27311-01-R4)

Unavailable

BOLT

90109-10473-00

Unavailable

NUT (682)

95380-10700-00

Unavailable

SPRING, TENSION (1J7)

90506-28146-00

Unavailable

STOPPER, MAIN STAND

1A0-27114-00-00

$17.49

PEDAL, BRAKE

4H7-27211-00-00

Unavailable

SHAFT, BRAKE PEDAL

4H7-27212-00-00

Unavailable

ROD, BRAKE

4H7-27231-00-00

Unavailable

PIN, CLEVIS (24X)

90240-06103-00

Unavailable

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

PIN, COTTER

91490-20025-00

Unavailable

SPRING, (180-27236-00)

90501-10245-00

Unavailable

PIN 1562723700

90249-12008-00

Unavailable

NUT (25K)

90179-06411-00

Unavailable

SPRING, TORSION

90508-45446-00

Unavailable

BOLT (1J7)

90109-06468-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

SCREW, HEXAGON

90153-06009-00

Unavailable

NUT, HEXAGON (371 447)

90170-06184-00

Unavailable

BRACKET 2

4H7-27442-00-00

Unavailable

BRACKET 3

4H7-27443-00-00

Unavailable

BOLT, FLANGE

95817-10030-00

Unavailable

DAMPER, FOOTREST

3H3-27414-00-00

Unavailable
