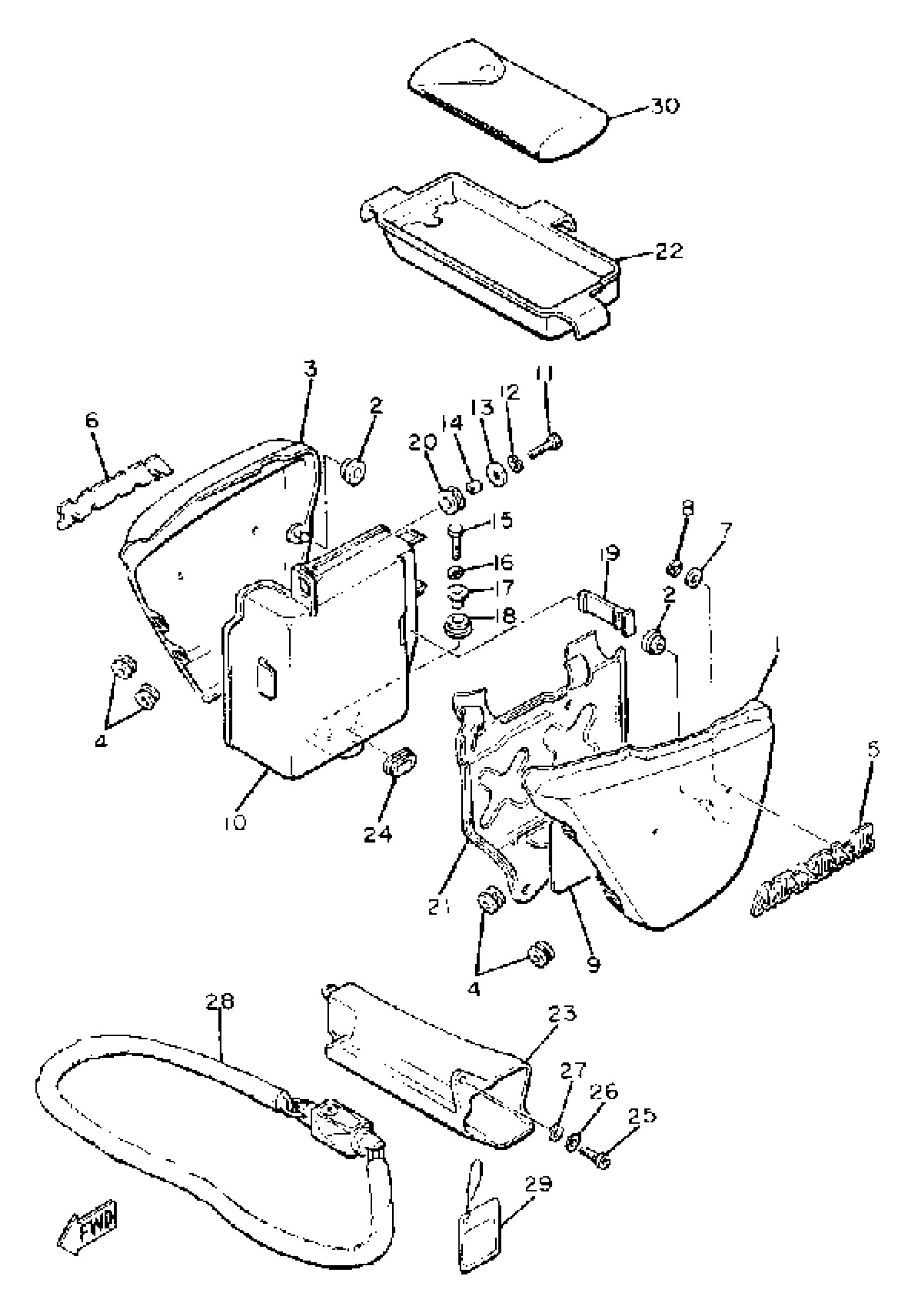

Yamaha XJ650G (XJ650) 1980 SIDE COVER TOOL Diagram

#

Description
Price

1

COVER, SIDE 1

4H7-21711-00-6G

Unavailable

1

COVER, SIDE 1

4H7-21711-00-7J

Unavailable

2

GROMMET(41Y)

90480-01401-00

$8.49

3

COVER, SIDE 2

(4H7-21721-01-7J)

Unavailable

3

COVER, SIDE 2

4H7-21721-02-6G

Unavailable

4

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

5

EMBLEM 1

4H7-21781-10-00

Unavailable

6

EMBLEM 2

4H7-21782-10-00

Unavailable

7

WASHER PLATE 174283160000

90202-04003-00

$8.49

8

NUT SPRING 116283170100

90183-04005-00

$10.49

9

PLATE, SPEC

(4H7-21683-10-00)

Unavailable

10

BOX

(4H7-21240-01-00)

Unavailable

11

BOLT, HEXAGON

97017-06025-00

$4.24

12

WASHER, SPRING

92995-06100-00

Unavailable

13

WASHER, PLATE

90201-06747-00

$8.49

14

COLLAR

90387-06113-00

Unavailable

15

BOLT (682)

97013-08025-00

Unavailable

16

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

17

COLLAR (21X)

90387-093H1-00

Unavailable

18

DAMPER

4H7-21746-00-00

Unavailable

19

HOOK, BANK

4H7-2175R-00-00

Unavailable

20

GROMMET (2N3)

90480-16233-00

Unavailable

21

PLATE, BRIDGE

4H7-21243-01-00

Unavailable

22

BOX

4H7-21170-00-00

Unavailable

23

BOX

4H7-21258-00-00

Unavailable

24

GROMMET

90480-22084-00

Unavailable

25

SCREW PAN HEAD

98580-06020-00

Unavailable

26

WASHER, SPRING

92995-06100-00

Unavailable

27

WASHER, PLATE

90201-06020-00

Unavailable

28

WHEEL LOCK ASSEMBLY (4X7-W2171-00)

4W5-W2171-00-00

Unavailable

29

TAG, CAUTION

(4H7-23496-00-00)

Unavailable

30

TOOL KIT

1FX-28100-00-00

Unavailable
