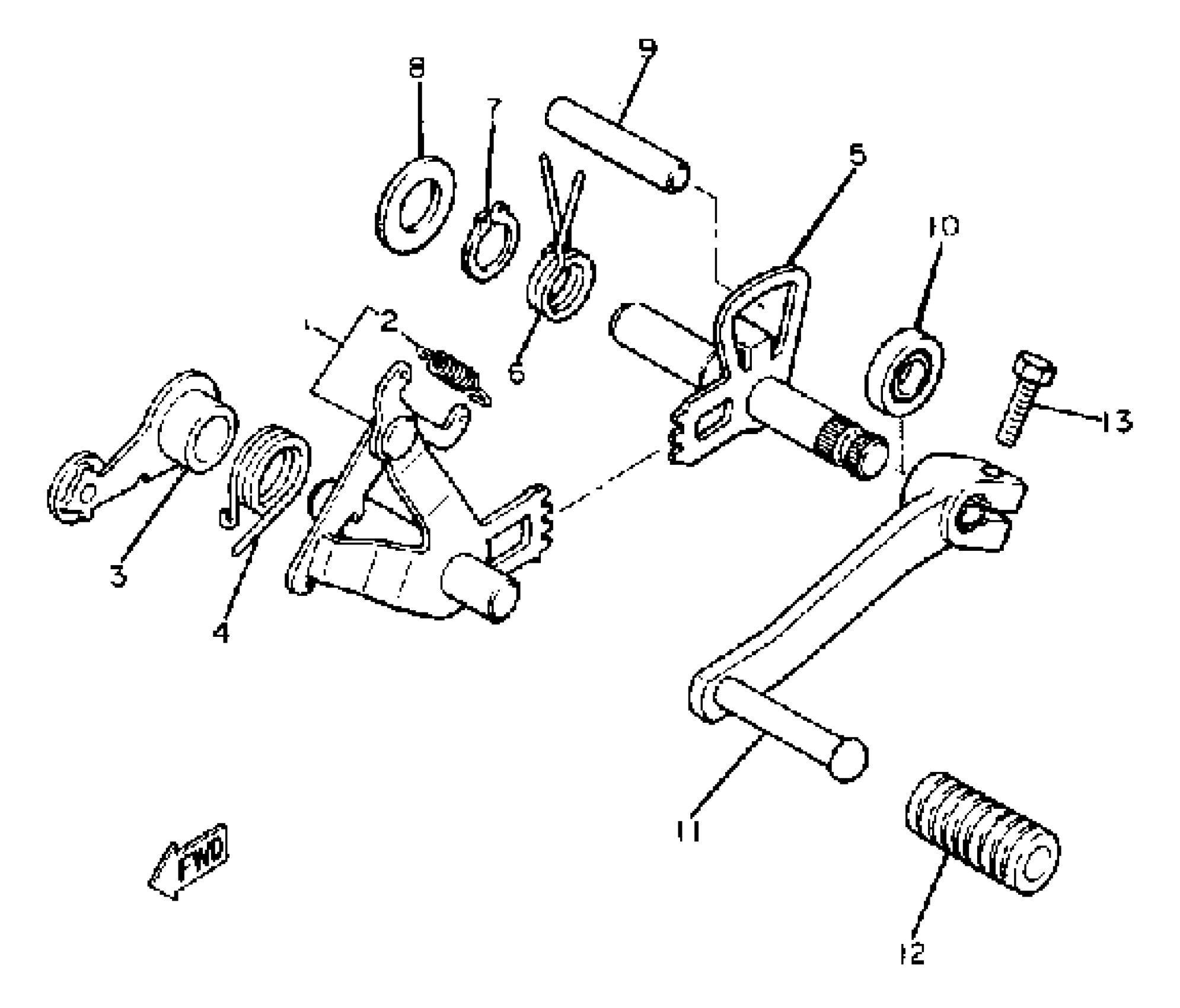

Yamaha XJ650G (XJ650) 1980 SHIFT SHAFT PEDAL Diagram

#

Description
Price

1

SHIFT SHAFT ASSEMBLY.1

4H7-18101-00-00

Unavailable

2

SPRING, TENSION (4H7)

90506-08227-00

$4.19

3

STOPPER LEVER ASSEMBLY

4H7-18140-00-00

Unavailable

4

SPRING, TORSION

90508-29530-00

Unavailable

5

SHIFT LEVER ASSEMBLY

4H7-18120-02-00

Unavailable

6

COLLAR

90387-12033-00

$7.49

6

SPRING, TORSION (4H7)

90508-32535-00

$10.49

6

SPRING W/ COLLAR

99999-01179-00

Unavailable

7

CIRCLIP

99006-10600-00

$9.49

8

WASHER

90201-12588-00

$7.49

9

PIN, DOWEL (4H7)

93608-50158-00

$8.49

10

SEAL, OIL (30X)

93102-12321-00

$12.49

11

PEDAL, SHIFT

4H7-18111-00-00

Unavailable

12

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

13

BOLT, HEXAGON

97017-06020-00

$4.06
