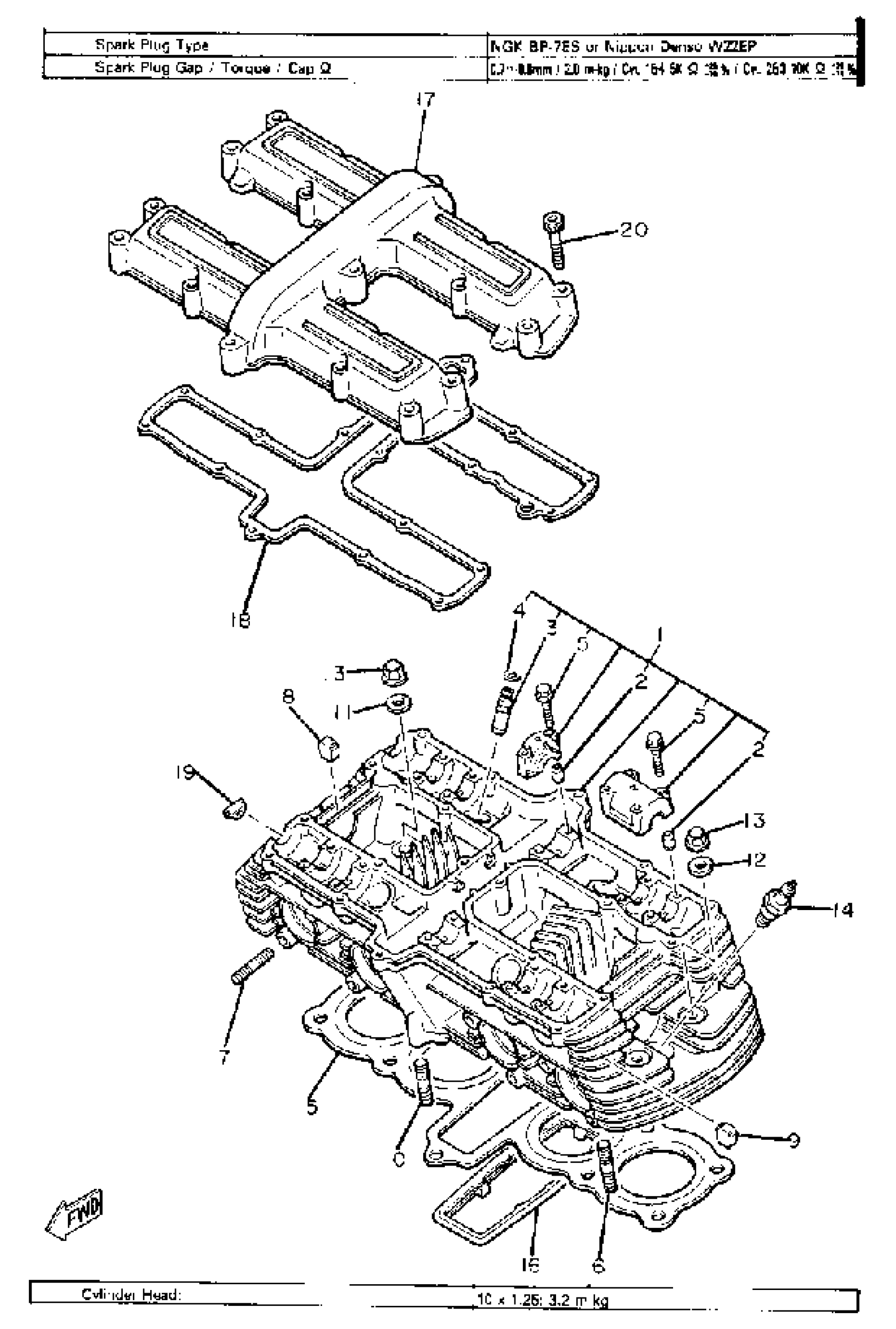

Yamaha XJ650G (XJ650) 1980 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

(4H7-11110-00-00)

Unavailable

2

PIN, DOWEL(3XW)

91808-16023-00

$8.49

3

GUIDE, INTAKE VALVE

4H7-11133-11-00

$50.99

4

CIRCLIP (1L9)

93440-12052-00

$2.44

5

BOLT, WASHER BASED (4H7)

90105-06153-00

$4.14

6

BOLT, STUD 2

95617-08325-00

Unavailable

7

BOLT, STUD(1FW)

90116-06466-00

$4.51

8

ABSORBER

434-11161-00-00

Unavailable

9

ABSORBER 1

4H7-11161-00-00

$3.48

10

GASKT KIT TE XJ650

(4H7-W0001-90-00)

Unavailable

10

BOLT, STUD 2

95617-08330-00

$10.49

11

WASHER PLATE 256111740000

90201-10131-00

$9.49

12

WASHER PLATE 341839090000

90201-10128-00

$4.82

13

NUT, CROWN(2GG)

90176-10075-00

$8.49

14

BPR7ES NGK - 4/PACK

BPR-7ES00-40-00

Unavailable

15

GASKET, CYL. HEAD

4H7-11181-12-00

Unavailable

16

SEAL, CYLINDER 1

5G2-11355-00-00

Unavailable

17

COVER, CYLINDER.HEAD 1

4H7-11191-00-00

Unavailable

18

GASKET, HEAD COVER 1

4H7-11193-10-00

Unavailable

19

PLUG

1J7-11138-00-00

Unavailable

20

BOLT, SOCKET

91314-06035-00

Unavailable
