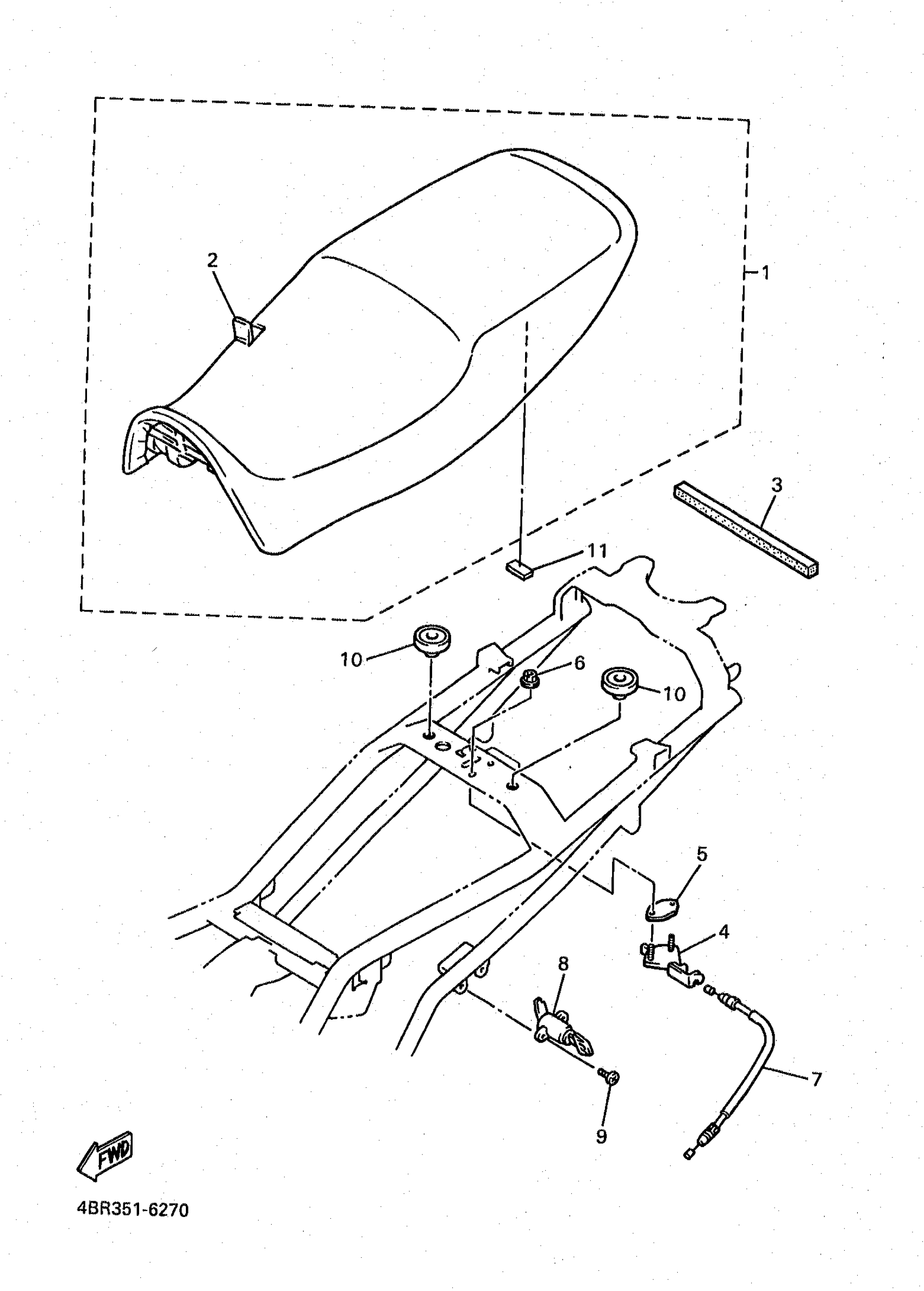

Yamaha XJ600SKC (SECA II CA) 1998 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

4EB-24730-20-00

Unavailable

2

. COVER, SEAT

4BR-24731-10-00

Unavailable

3

DAMPER, SEAT

4BP-24737-00-00

Unavailable

4

SEAT LOCK ASSY

4BP-24780-00-00

$90.53

5

PLATE

4BP-24792-00-00

Unavailable

6

NUT, FLANGE(4MV)

95707-06500-00

$0.73

7

CABLE, SEAT LOCK

4EB-2478E-00-00

Unavailable

8

SEAT LOCK ASSY

3CK-W2470-00-00

$69.49

9

SCREW(1KT)

90149-06228-00

$5.86

10

PAD, SEAT

22W-24741-00-00

$7.20

11

DAMPER, SIDE COVER

3XV-21717-00-00

$2.01
