1998 Yamaha Seca II CA (XJ600SKC) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1998 Yamaha Seca II CA (XJ600SKC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

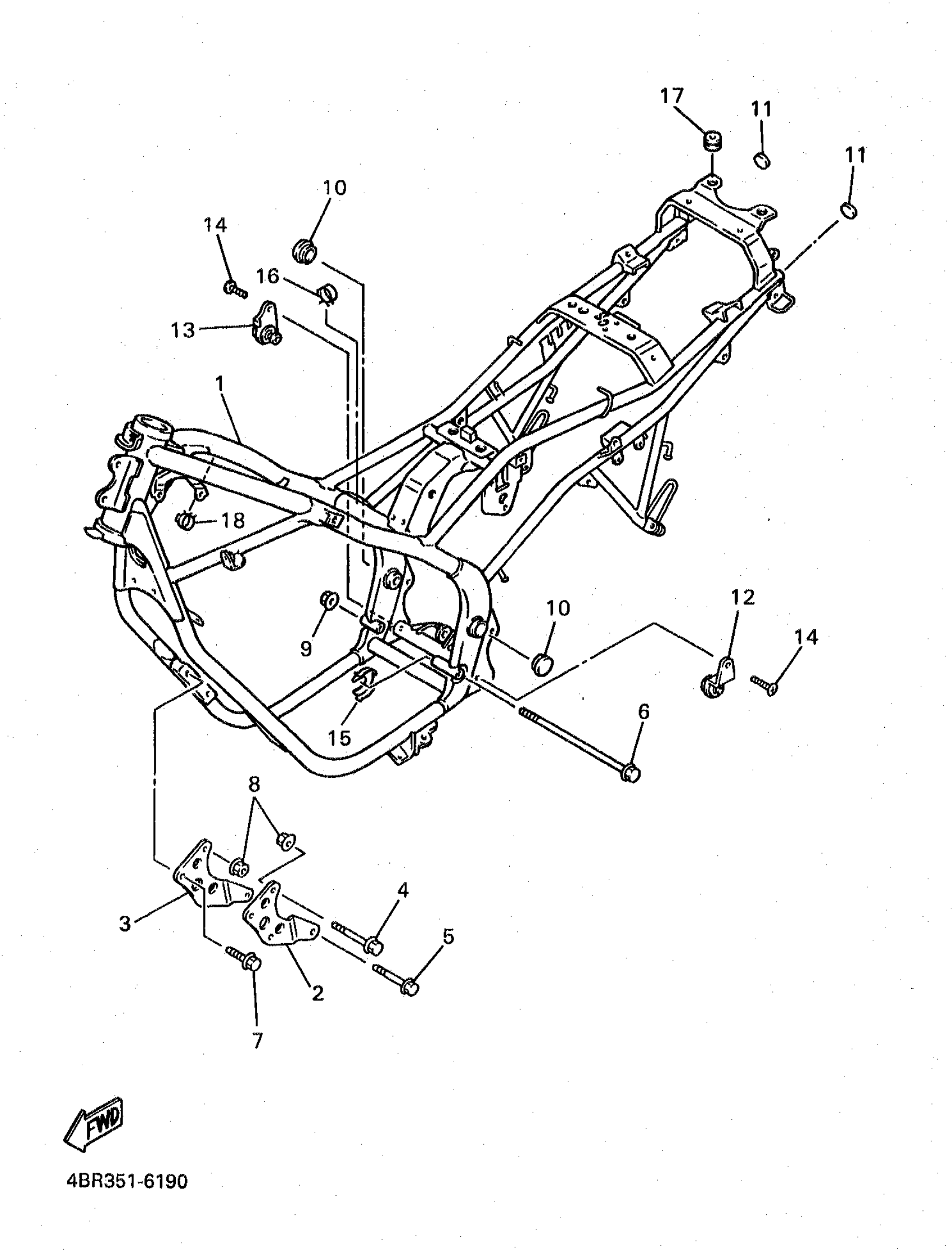

1998 Yamaha Seca II CA (XJ600SKC) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

4DU-21110-21-33

1
Out of stock

1

FRAME COMP.

4DU-21110-21-P1

1
Out of stock

2

STAY, ENGINE 2

4BP-21315-00-00

1
Out of stock

3

STAY, ENGINE 3

4BP-21316-00-00

1
Out of stock

4

BOLT, WASHER BASED(4EB)

90105-10788-00

1
Out of stock

5

BOLT, FLANGE(4AS)

95824-10050-00

1
Out of stock

6

BOLT, WASHER BASED(4EB)

90105-12787-00

—
Out of stock

7

BOLT, FLANGE(4EB)

95824-10016-00

1
Out of stock

8

NUT(4KG)

90179-10658-00

1

$7.49

In stock

9

NUT(3EF)

90179-12657-00

1

$5.32

In stock

10

COVER

3SX-2135F-01-00

—
Out of stock

11

PLUG

3YJ-24481-00-00

—
Out of stock

12

STAY,MUFFLER 1

4BP-21445-01-00

1
Out of stock

13

STAY,MUFFLER 2

4BP-21446-01-00

1
Out of stock

14

BOLT, BUTTON HEAD

92017-08012-00

1
Out of stock

15

WASHER, CLAW

90214-12070-00

1
Out of stock

16

CLAMP(4KM)

90464-25217-00

—

$3.35

In stock

17

GROMMET (16R)

90480-14329-00

—

$6.68

In stock

18

CLAMP(4HM)

90464-15192-00

—

$6.17

In stock
