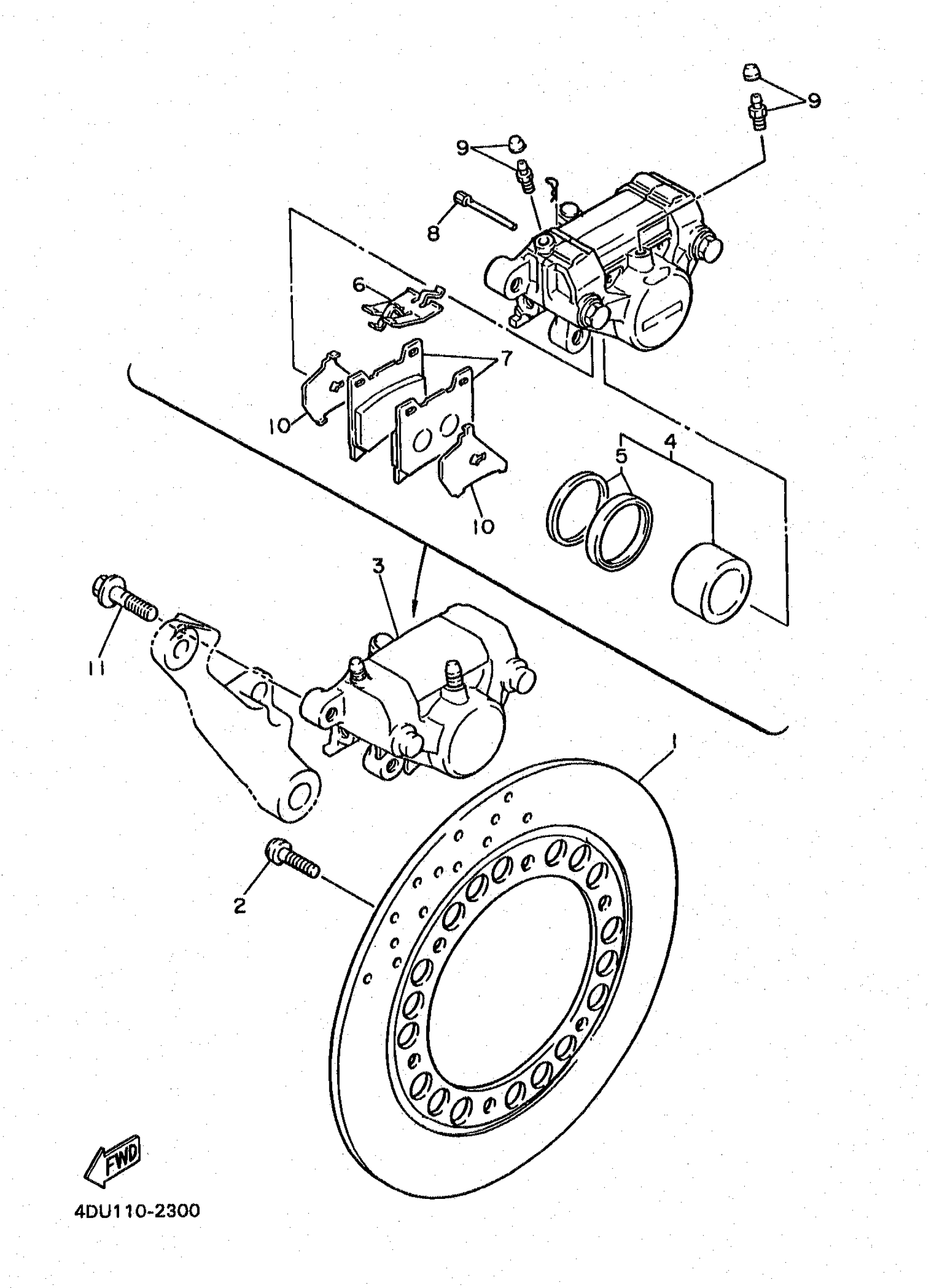

Yamaha XJ600SKC (SECA II CA) 1998 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, REAR BRAKE 2

4HM-2582W-00-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-08057-00

$1.91

3

CALIPER ASSEMBLY, REAR 2

4BP-2580W-00-00

Unavailable

4

PISTON ASSY, CALIPER

51L-W0057-00-00

$72.47

5

CALIPER SEAL KIT

51L-W0047-11-00

Unavailable

6

. SUPPORT, PAD

3LN-25919-10-00

Unavailable

7

BRAKE PAD KIT 2

4AP-W0046-00-00

$42.23

8

PIN, PAD

4FL-25924-00-00

$15.64

9

BLEED SCREW KIT

15B-W0048-00-00

$16.89

10

SHIM, CALIPER

4BP-25827-00-00

Unavailable

11

BOLT, WASHER BASED(3VD)

90105-10638-00

$5.80
