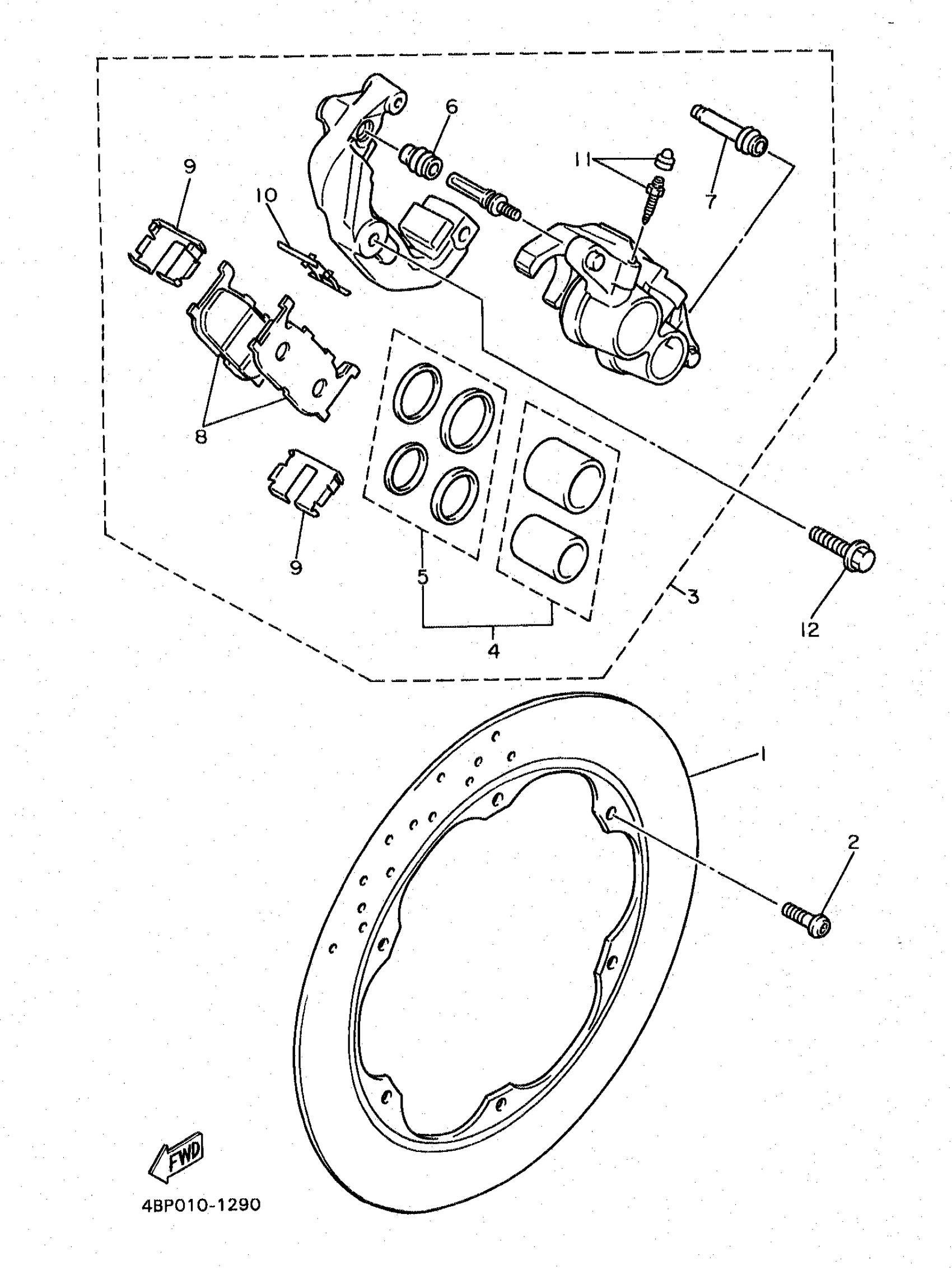

Yamaha XJ600SKC (SECA II CA) 1998 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE

4BP-2582T-00-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-08057-00

$1.91

3

CLPR ASYL

4DN-2580T-00-00

Unavailable

4

PISTON ASSY, CALIPER

3JB-25802-00-00

$130.33

5

CALIPER SEAL KIT

3JB-25803-00-00

$36.93

6

BOOT 2

5R2-25937-00-00

$30.21

7

BOOT 2

3YX-25937-00-00

Unavailable

8

BRAKE PAD KIT

4BP-W0045-00-00

Unavailable

9

SUPPORT, PAD

4BP-25919-00-00

$27.53

10

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

11

BLEED SCREW KIT

15B-W0048-00-00

$16.89

12

BOLT, WASHER BASED(3VD)

90105-10638-00

$5.80
