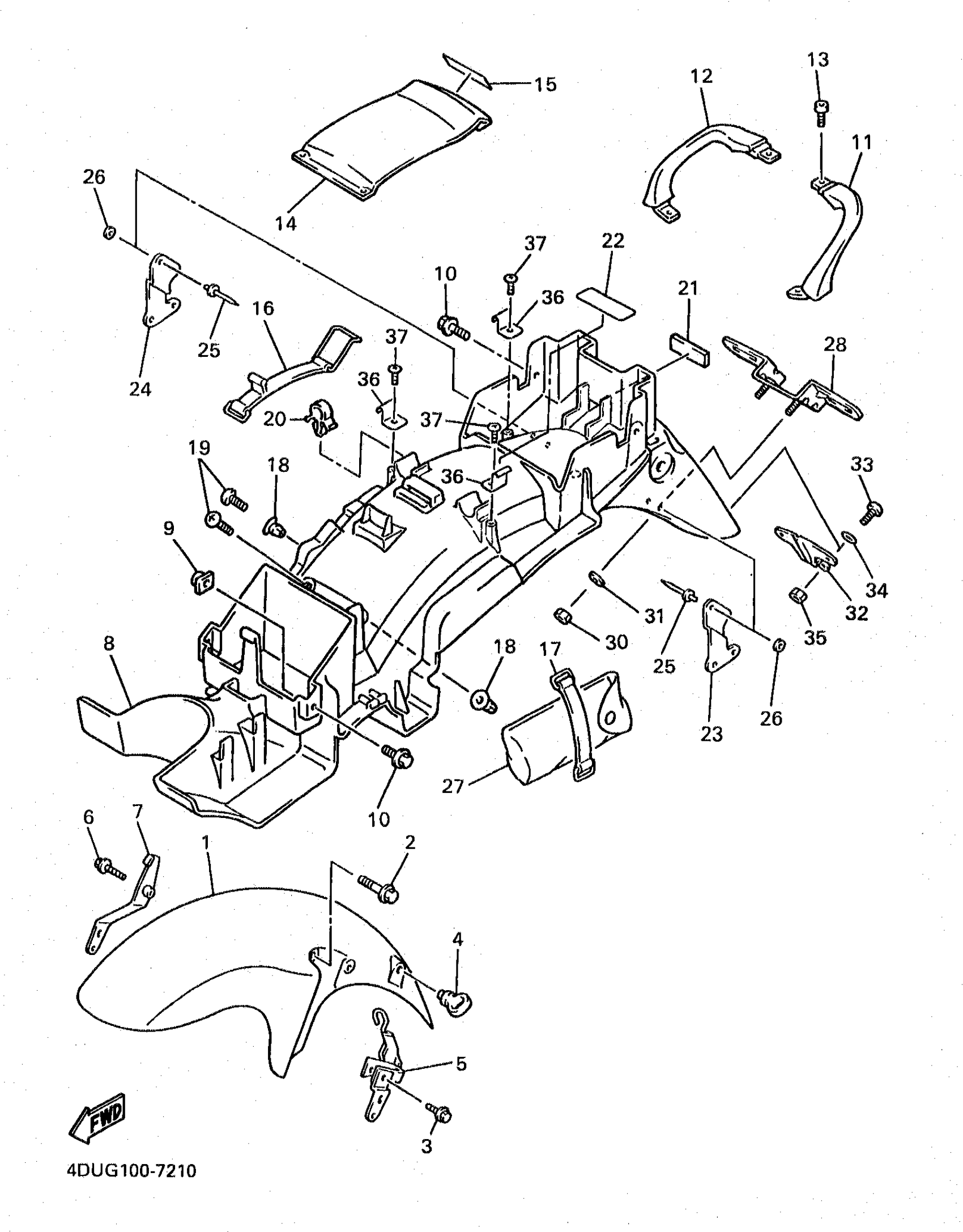

Yamaha XJ600SKC (SECA II CA) 1998 FENDER Diagram
#
1
FRONT FENDER COMP.
4BP-21510-00-33
Unavailable
1
FRONT FENDER COMP.
4BP-21510-00-P8
Unavailable
5
HOLDER, BRAKE HOSE 1
4DU-25875-00-00
Unavailable
7
HOLDER, WIRE 1
4DU-21597-00-00
Unavailable
8
FNDR, RR
4BP-21611-02-00
Unavailable
9
PLATE
31A-14477-10-00
Unavailable
11
STAY, REAR
4BP-21644-01-00
Unavailable
12
STAY, REAR
4BP-21645-01-00
Unavailable
14
COVER, REAR FENDER
4EB-21651-00-33
Unavailable
14
COVER, REAR FENDER
4EB-21651-00-P3
Unavailable
15
EMBLEM, YAMAHA
99247-00080-00
Unavailable
16
BAND, BATTERY
4BP-82131-00-00
Unavailable
17
BAND,BATTERY
7H3-82131-00-00
Unavailable
18
PLUG(4BP)
90338-08226-00
Unavailable
19
SCREW, TRUSS TAP.
97707-60016-00
Unavailable
20
CLAMP(3XV)
90464-15157-00
Unavailable
21
COVER 2
3FC-2139R-00-00
Unavailable
22
LABEL, CAUTION
3JJ-28446-00-00
Unavailable
23
BRACKET, REAR STAY
3LK-21688-00-00
Unavailable
24
BRACKET, REAR STAY 2
3LK-21689-00-00
Unavailable
25
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
26
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
27
TOOL KIT
1HX-28100-01-00
Unavailable
28
BRACKET,LICENSE
4DU-84751-00-90
Unavailable
30
NUT, SELF-LOCKING
95617-06100-00
Unavailable
31
WASHER, PLATE
90201-06557-00
Unavailable
32
BRACKET, REFLECTOR 1
4DU-85132-00-00
Unavailable
33
SCREW(3HE)
90149-04278-00
Unavailable
34
WASHER, PLATE (8M6)
90201-047A2-00
Unavailable
35
NUT, U (7LY)
95617-04100-00
Unavailable
36
HOOK
36F-28379-00-00
Unavailable
37
SCREW, TRUSS TAP.
97707-40010-00
Unavailable
