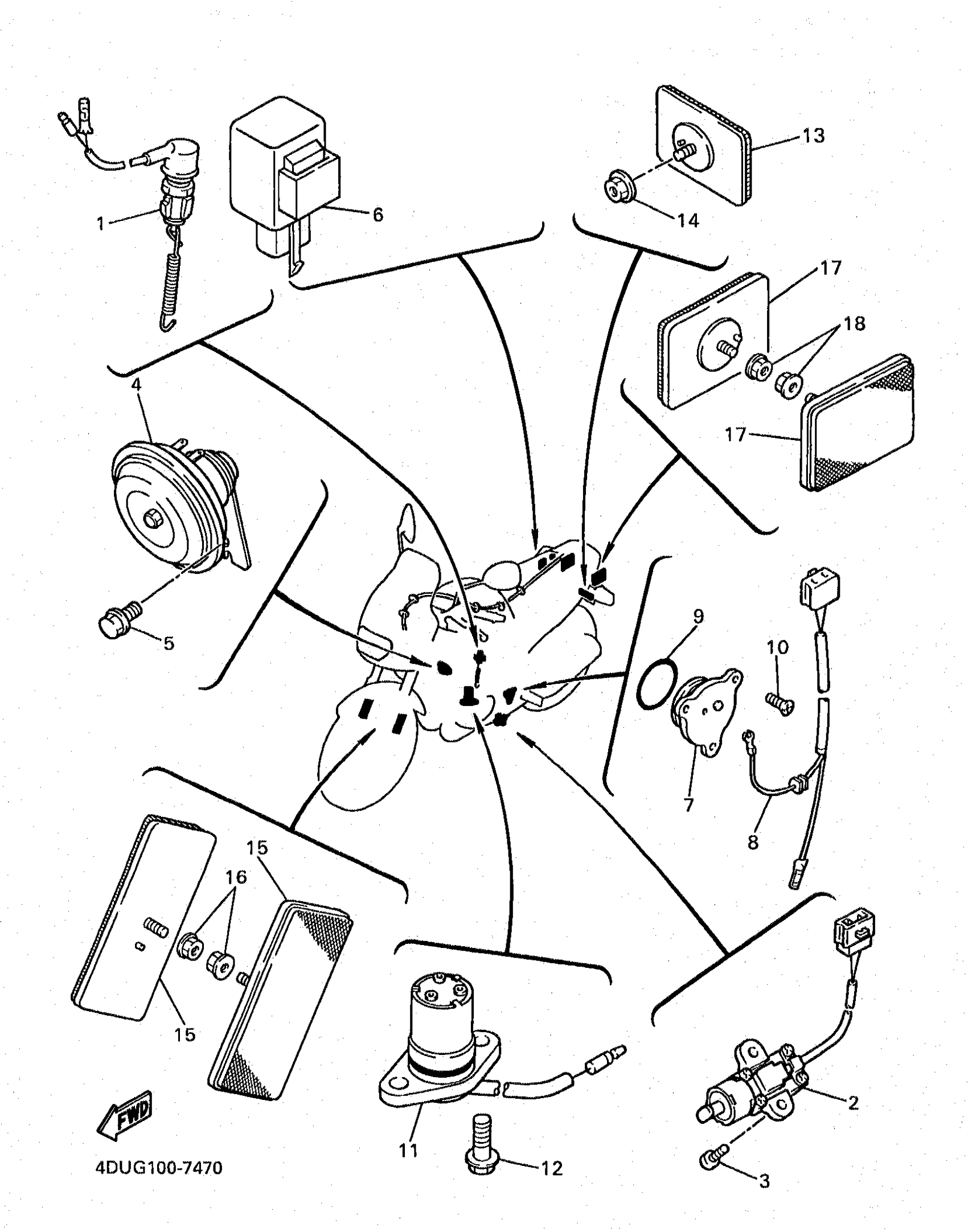

Yamaha XJ600SKC (SECA II CA) 1998 ELECTRICAL 2 Diagram

STOP SWITCH ASSEMBLY

4BP-82530-01-00

Unavailable

SWITCH, SIDE STAND

3LD-82566-71-00

$49.99

SCREW, PAN HEAD

98507-05014-00

$8.49

HORN

2KG-83371-00-00

Unavailable

BOLT, FLANGE

95817-06010-00

$4.73

FLASHER RELAY ASSY

3GM-83350-03-00

$81.99

NEUTRAL SWITCH ASSY

1L9-82540-00-00

$47.99

WIRE, SUB LEAD

4HM-82509-01-00

Unavailable

O-RING (371)

93210-29196-00

$8.49

SCREW(3HX)

90149-05245-00

$8.49

OIL LEVEL GAUGE ASSEMBLY

4BR-85720-00-00

Unavailable

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

REAR REFLECTOR ASSY

4KM-85130-00-00

$22.99

NUT, FLANGE(3GM)

95707-05500-00

$8.49

FRONT REFLECTOR ASSY

11H-85110-01-00

$27.99

NUT, FLANGE(3GM)

95707-05500-00

$8.49

REAR REFLECTOR ASSY

4KM-85130-00-00

$22.99

NUT, FLANGE(3GM)

95707-05500-00

$8.49
