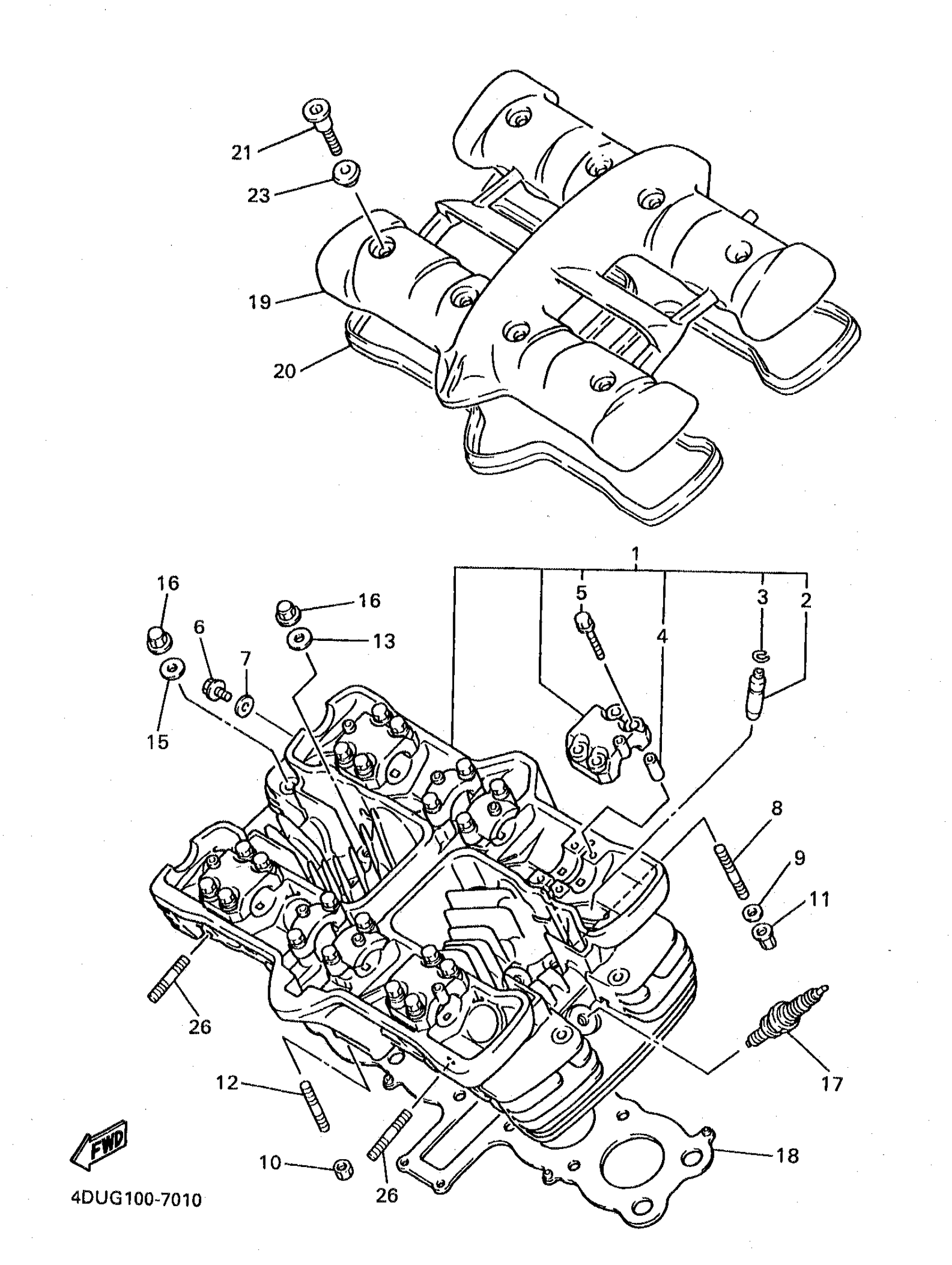

Yamaha XJ600SKC (SECA II CA) 1998 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

4DU-11101-00-00

Unavailable

2

GUIDE, INTAKE VALVE

4BR-11133-10-00

Unavailable

3

CIRCLIP(1AA)

93440-09141-00

$1.64

4

PIN, DOWEL(3XW)

91808-16023-00

$5.26

5

BOLT, WASHER BASED (4H7)

90105-06153-00

$2.58

6

SCREW

90153-06029-00

$7.94

7

GASKET 256113960000

90430-06014-00

Unavailable

8

BOLT

50M-14651-00-00

Unavailable

9

WASHER(6TA)

92907-06600-00

$0.73

10

NUT(6TA)

95317-06600-00

$2.52

11

NUT(2UJ)

90179-06668-00

$5.75

12

BOLT, STUD 3

95617-06625-00

$6.22

13

WASHER, PLATE (33N)

90201-094G1-00

$6.52

15

WASHER, PLATE

90201-080L7-00

$3.19

16

NUT, CROWN (4G0)

90176-08026-00

$10.85

17

CR8E NGK SPLUG 4PK

CR8-E0000-00-00

$8.42

18

GASKET, CYLINDER HEAD 1

4BR-11181-00-00

Unavailable

19

COVER, CYLINDER HEAD 1

4DU-11191-00-00

Unavailable

20

GASKET, HEAD COVER 1

4BR-11193-00-00

Unavailable

21

BOLT(4BP)

90109-066F0-00

Unavailable

23

RUBBER, MOUNT 1

5EA-1111G-00-00

Unavailable

26

BOLT, STUD(2GG)

95617-08620-00

Unavailable
