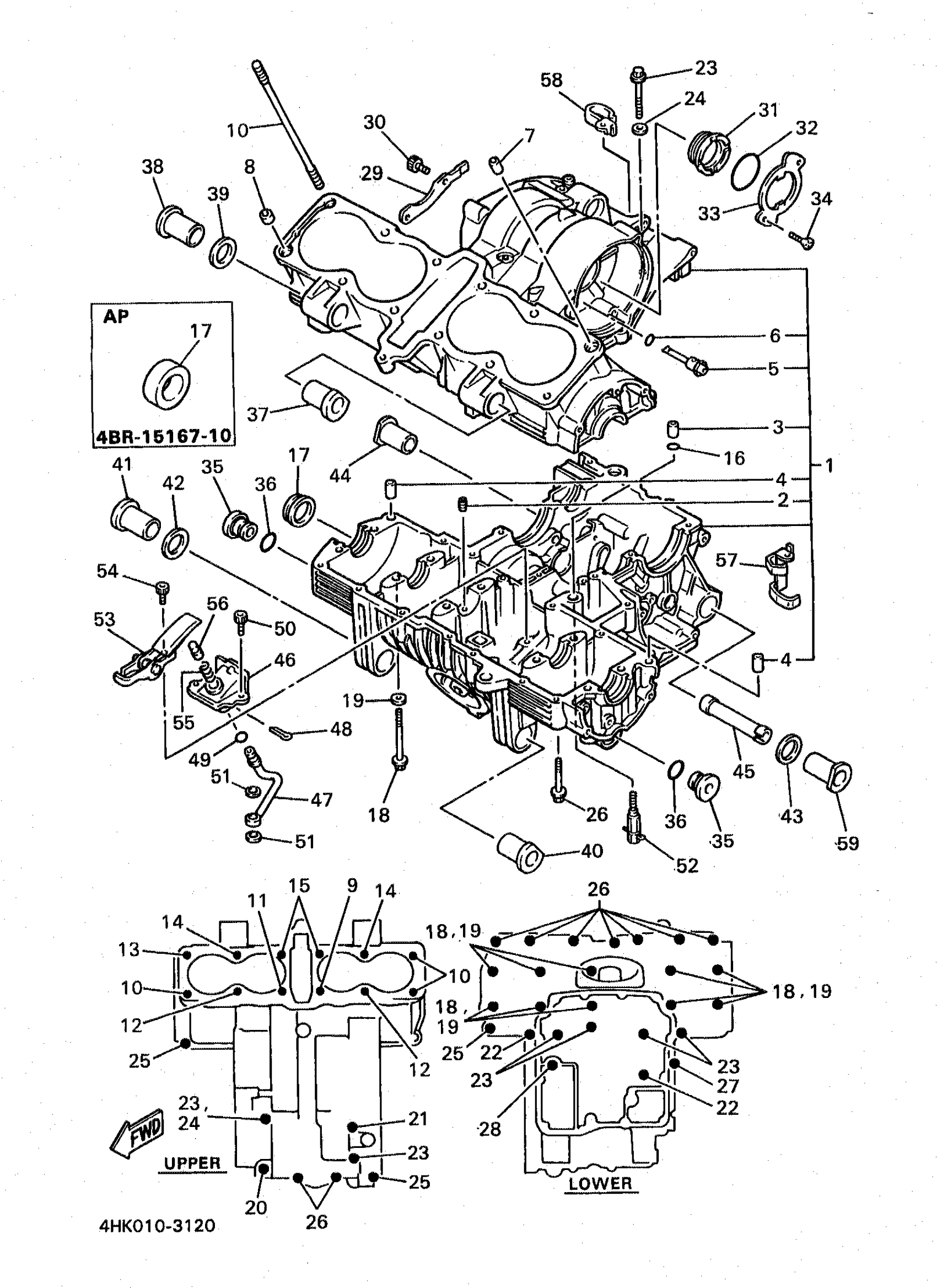

Yamaha XJ600SKC (SECA II CA) 1998 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

4DU-15100-00-00

Unavailable

2

NOZZLE

4KM-13572-01-00

$6.99

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

PIN, DOWEL

99530-12016-00

$4.89

5

NOZZLE 2

4BR-15148-00-00

$35.99

6

O-RING (4G0)

93210-11453-00

$7.49

7

PIN, DOWEL

99530-14016-00

$3.80

8

COLLAR (1L9)

90387-16547-00

$9.49

9

BOLT, STUD

90116-08338-00

Unavailable

10

BOLT, STUD(4BP)

90116-08566-00

$8.49

11

BOLT, STUD

90116-08339-00

Unavailable

12

BOLT, STUD

90116-08340-00

Unavailable

13

BOLT, CYLINDER HOLDING 3

4BR-11363-00-00

$9.99

14

BOLT, CYLINDER HOLDING 4

4G0-11364-00-00

Unavailable

15

BOLT, CYLINDER HOLDING 3

4G0-11363-00-00

Unavailable

16

O-RING (1J7)

93210-09350-00

Unavailable

17

PLUG, BLIND 1

4BR-15167-10-00

Unavailable

17

PLUG

90338-48229-00

Unavailable

18

BOLT, FLANGE

95817-08100-00

Unavailable

19

WASHER, PLATE (33N)

90201-094G1-00

Unavailable

20

BOLT, FLANGE(JF2)

95817-08080-00

Unavailable

21

BOLT, FLANGE

95817-06135-00

Unavailable

22

BOLT, FLANGE

95817-06095-00

Unavailable

23

BOLT, FLANGE

95817-06065-00

Unavailable

24

GASKET (4V2)

90430-06166-00

Unavailable

25

BOLT, FLANGE

95817-06055-00

Unavailable

26

BOLT, FLANGE

95817-06045-00

Unavailable

27

BOLT, FLANGE

95817-06040-00

Unavailable

28

BOLT, FLANGE

95817-06035-00

Unavailable

29

PLATE, BEARING COVER

4BR-15381-00-00

Unavailable

30

BOLT,SOCKET

91317-06016-00

Unavailable

31

HOUSING, BEARING 1

4G0-15163-01-00

Unavailable

32

O-RING (26H)

93210-45578-00

Unavailable

33

PLATE, BEARING COVER

4G0-15383-00-00

Unavailable

34

SCREW, COUNTERSUNK (4H7)

90151-06014-00

Unavailable

35

PLUG

3KM-15189-00-00

Unavailable

36

O-RING (25G)

93210-20573-00

Unavailable

37

DAMPER, ENGINE MOUNT 3

4G0-15336-00-00

Unavailable

38

DAMPER, ENGINE MOUNT 3

33M-15336-00-00

Unavailable

39

WASHER, PLATE

90202-15153-00

Unavailable

40

DAMPER, ENGINE MOUNT 1

4G0-15316-00-00

Unavailable

41

DAMPER 4

33M-15337-00-00

Unavailable

42

WASHER, PLATE

90202-15153-00

Unavailable

43

WASHER, PLATE(4BP)

90202-17211-00

Unavailable

44

DAMPER, ENGINE MOUNT 2

46X-15326-00-00

Unavailable

45

SPACER, ENGINE MOUNT

4BR-15327-00-00

Unavailable

46

TENSIONER, CHAIN

4G0-11592-00-00

Unavailable

47

PIPE, DELIVERY 2

4G0-13171-00-00

Unavailable

48

PIN, COTTER

91490-25020-00

Unavailable

49

O-RING (11M)

93210-07540-00

Unavailable

50

BOLT, HEXAGON SOCKET HEAD

90110-06043-00

Unavailable

51

GASKET (5R6)

90430-10171-00

Unavailable

52

RELIEF VALVE ASS'Y

4G0-11575-00-00

Unavailable

53

TENSIONER ARM COMP.

4BR-11492-00-00

Unavailable

54

BOLT, HEXAGON SOCKET HEAD

90110-06043-00

Unavailable

55

. SPRING, COMPRESSION

90501-143A8-00

Unavailable

56

. PLUNGER, TENSIONER

46X-11597-00-00

Unavailable

57

CLAMP

90462-08087-00

Unavailable

58

CLAMP

90465-10290-00

Unavailable

59

COLLAR

90387-125Y2-00

Unavailable
