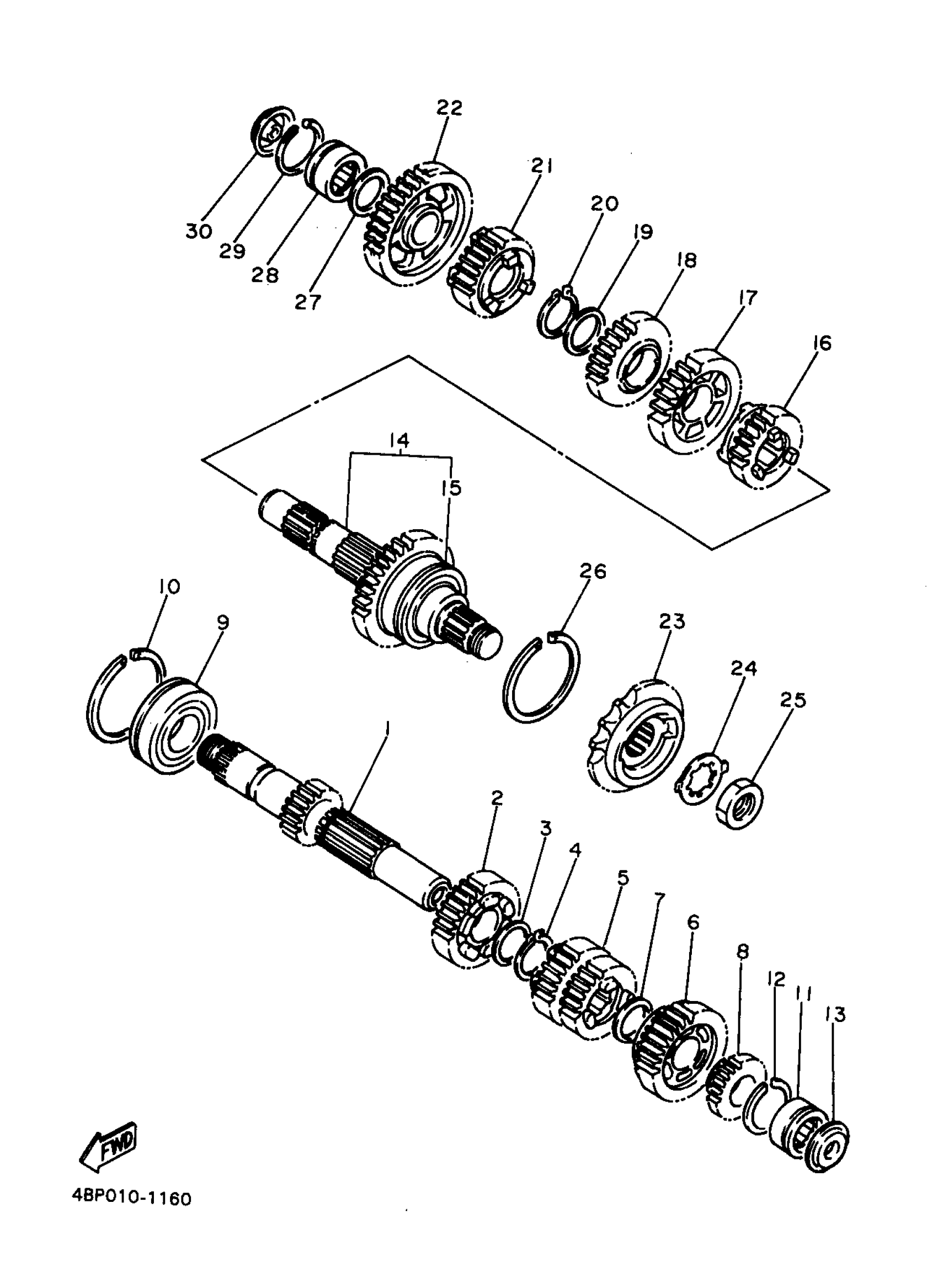

Yamaha XJ600SJC (SECA II CA) 4DUH 1997 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

4BR-17411-00-00

Unavailable

2

GEAR, 5TH PINION (23T)

4BR-17151-00-00

Unavailable

3

WASHER (3J3)

90209-22191-00

$7.49

4

CIRCLIP (4L0)

93440-25084-00

$5.60

5

GEAR, 3RD PINION (27T)

4BR-17131-00-00

Unavailable

6

GEAR, 6TH PINION (4BR-17161-02-00)

4BR-17161-01-00

Unavailable

7

WASHER, PLATE

90201-200K3-00

Unavailable

8

GEAR, 2ND PINION (18T)

4BR-17121-00-00

Unavailable

9

BRG,R-B 6305 62MM 225G NK

93306-30504-00

$71.99

10

CIRCLIP

278-17424-01-00

$21.99

11

BEARING, CYL.#11

93311-42045-00

Unavailable

12

CIR CLIP

278-17425-00-00

$8.99

13

NOZZLE

4G0-17433-01-00

Unavailable

14

DRIVE AXLE ASSEMBLY

4BR-17402-01-00

Unavailable

15

OIL SEAL (35X62X6-371)

93102-35109-00

$25.99

16

GEAR, 6TH WHEEL (23T)

4BR-17261-00-00

Unavailable

17

GEAR, 3RD WHEEL (28T)

4BR-17231-00-00

Unavailable

18

GEAR, 4TH WHEEL (29T)

4BR-17241-00-00

Unavailable

19

WASHER (3J3)

90209-22191-00

$7.49

20

CIRCLIP (4L0)

93440-25084-00

$5.60

21

GEAR, 5TH WHEEL (21T)

4BR-17251-01-00

Unavailable

22

GEAR, 1ST WHEEL

4BR-17211-00-00

Unavailable

23

SPROCKET, DRIVE

4BR-17460-00-00

Unavailable

24

WASHER, LOCK(2NX)

90215-23265-00

Unavailable

25

NUT(2NX)

90179-18552-00

Unavailable

26

CIRCLIP

278-17424-01-00

$21.99

27

WASHER PLATE 328171160000

90201-20276-00

Unavailable

28

BEARING, CYL.#11

93311-42045-00

Unavailable

29

CIR CLIP

278-17425-00-00

$8.99

30

NOZZLE

4G0-17433-01-00

Unavailable
